Front Airbag Sensor: Installation
WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Never use SRS parts from another vehicle. When replacing parts, replace them with new parts.
- Never reuse the sensor involved in a collision when the SRS has deployed.
- Never repair a sensor in order to reuse it.
- INSTALL FRONT AIRBAG SENSOR

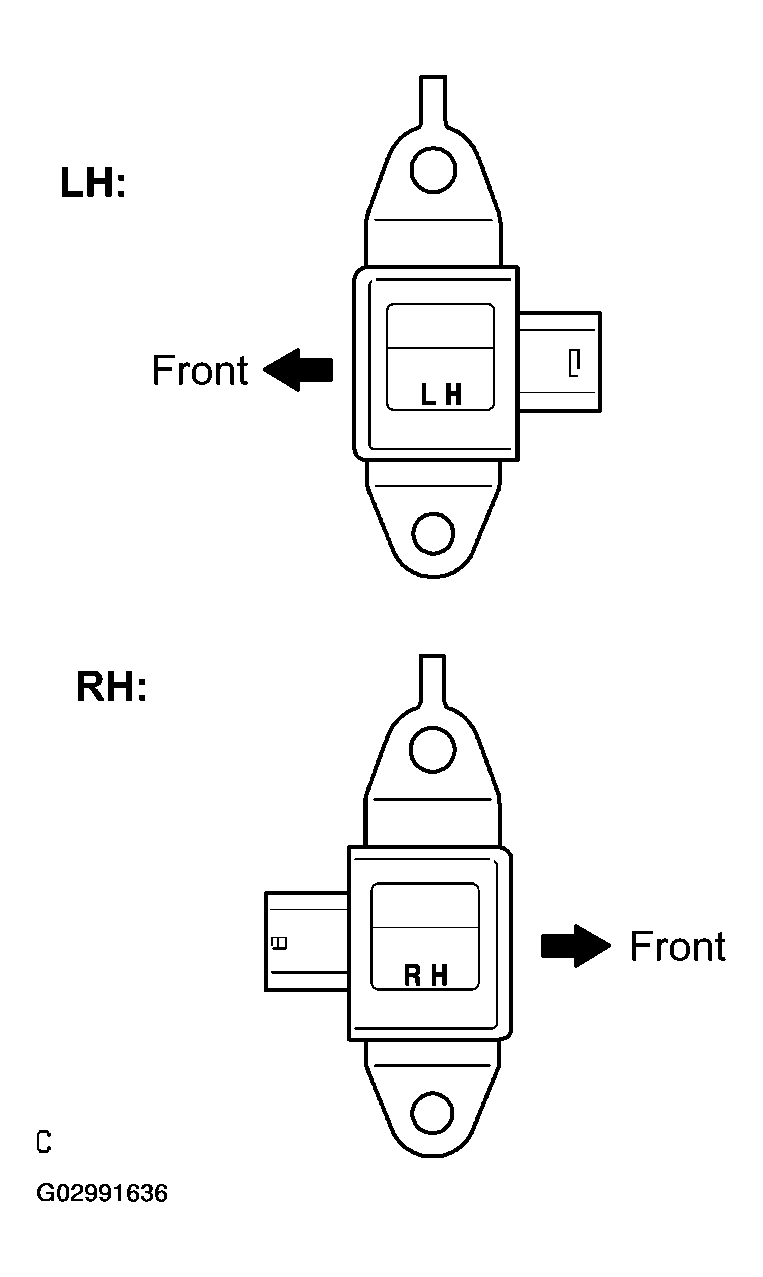

- Install the front airbag sensor with the arrow on the sensor facing toward the front of the vehicle.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
NOTE:- Make sure that the sensor is installed with the specified torque.
- If the sensor has been dropped, or there are cracks, dents or other defects in the case, brackets or connector, replace the removed sensor with a new one.
- The front sensor is equipped with an electrical connection check mechanism. Be sure to lock this mechanism securely when connecting the connector. If the connector is not securely locked, a malfunction code will be detected by the diagnostic system.
- Connect the front airbag sensor connector.
- Install the front airbag sensor with the arrow on the sensor facing toward the front of the vehicle.
- INSTALL BATTERY AND BATTERY CARRIER
- INSPECT SRS WARNING LIGHT (See PRE-CHECK )
