Curtain Shield Airbag Sensor Assembly: Installation

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Never use SRS parts from another vehicle. When replacing parts, replace them with new ones.
Never reuse the curtain shield airbag sensor assembly involved in a collision when the airbag has deployed.
Never repair a sensor in order to reuse it.

HINT:

For step 2 to 8, refer to INSTALLATION .

INSTALL CURTAIN SHIELD AIRBAG SENSOR ASSEMBLY
1. Install the curtain shield airbag sensor assembly with the 2 bolts.
  Torque: 17.5 N.m (178 kgf.cm, 13 ft.lbf)
2. Connect the connector.

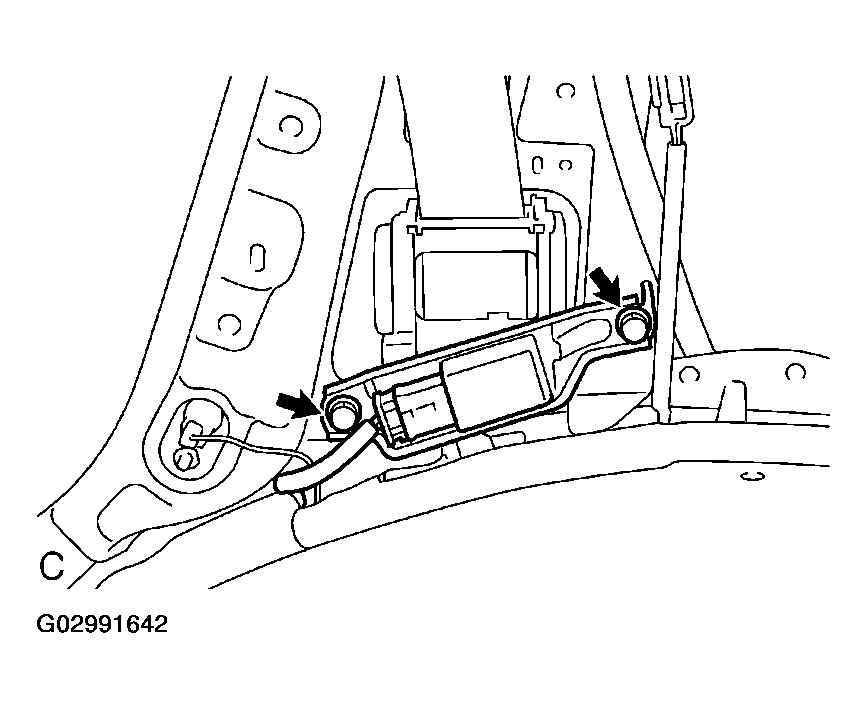

Fig 1: Installing Curtain Shield Airbag Sensor Assembly With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Connection of the connector is done after the sensor assembly has been installed.
- Make sure that the sensor assembly is installed with the specified torque.
- If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
- When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
- After installation, shake the sensor assembly to check that there is no looseness.
INSTALL QUARTER TRIM PANEL
INSTALL STRIKER PLATES
INSTALL REAR NO. 2 SEAT
INSTALL REAR MAT SET PLATE
INSTALL REAR SEAT BELT ANCHOR
INSTALL REAR DOOR OPENING TRIM
INSTALL REAR DOOR SCUFF PLATE
INSPECT SRS WARNING LIGHT (See PRE-CHECK )
