Airbag Sensor Assembly: Removal

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not open the cover or the case of the ECU and various electrical devices unless absolutely necessary.
(If the IC terminals are touched, the IC may be destroyed by static electricity.)

HINT:

For step 2 to 6, refer to REMOVAL

REMOVE FRONT SEAT (See REMOVAL )
REMOVE TRANSFER SHIFT LEVER KNOB
REMOVE UPPER CONSOLE PANEL
REMOVE REAR CONSOLE BOX WITH CONSOLE REAR END PANEL
REMOVE FRONT CONSOLE BOX
REMOVE CENTER LOWER CLUSTER FINISH PANEL ASSEMBLY
REMOVE AIRBAG SENSOR ASSEMBLY
1. Disconnect the airbag sensor connectors.
  NOTE: Disconnect the connectors with the airbag sensor assembly installed.
2. Remove the 3 bolts and the airbag sensor assembly.

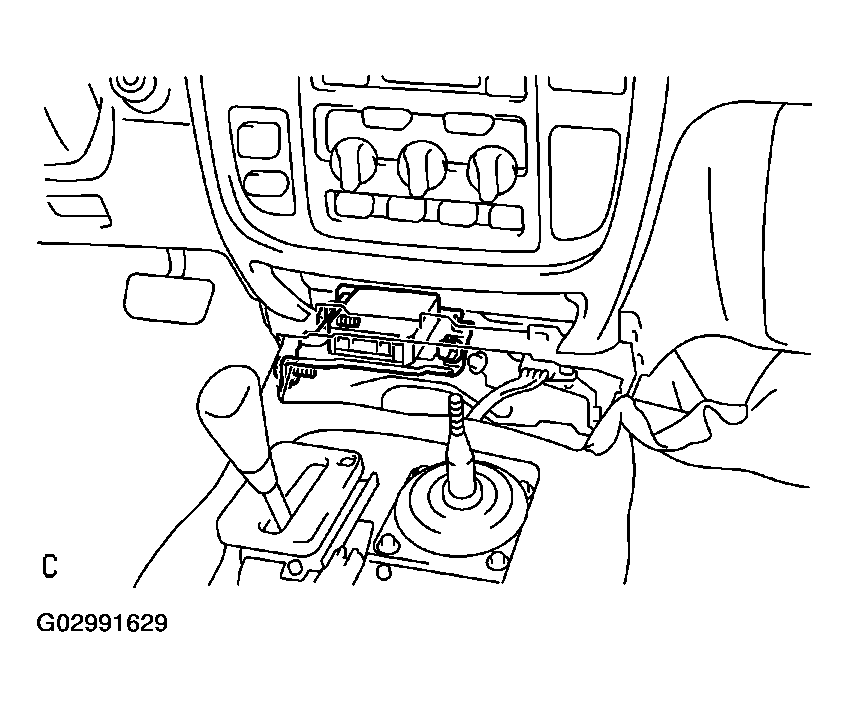

Fig 1: Locating Airbag Sensor Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
