Propeller Shaft Assembly: Components

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

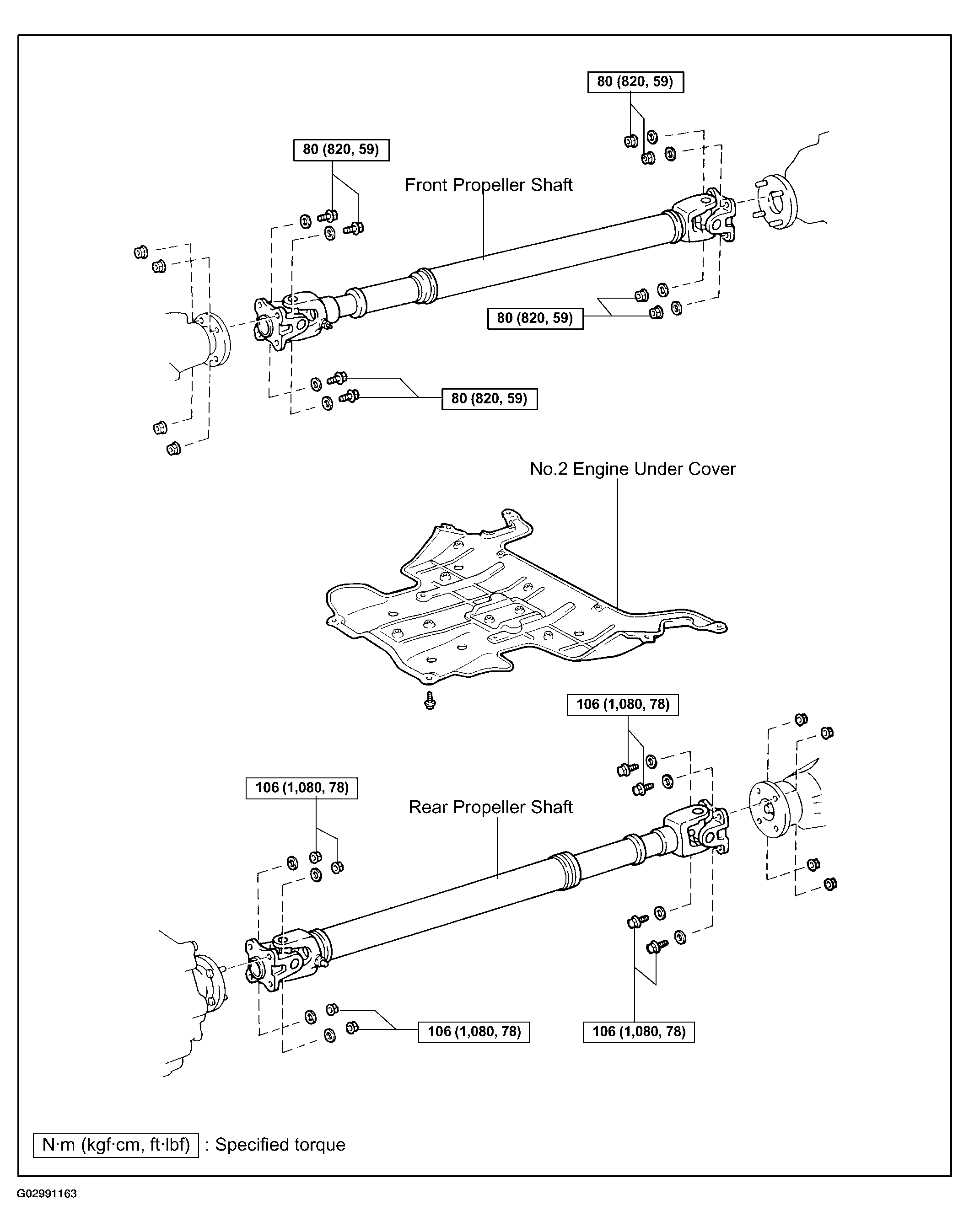

Fig 1: Replacement Components Propeller Shaft Assembly With Torque Specifications (1 Of 2)
G02991163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

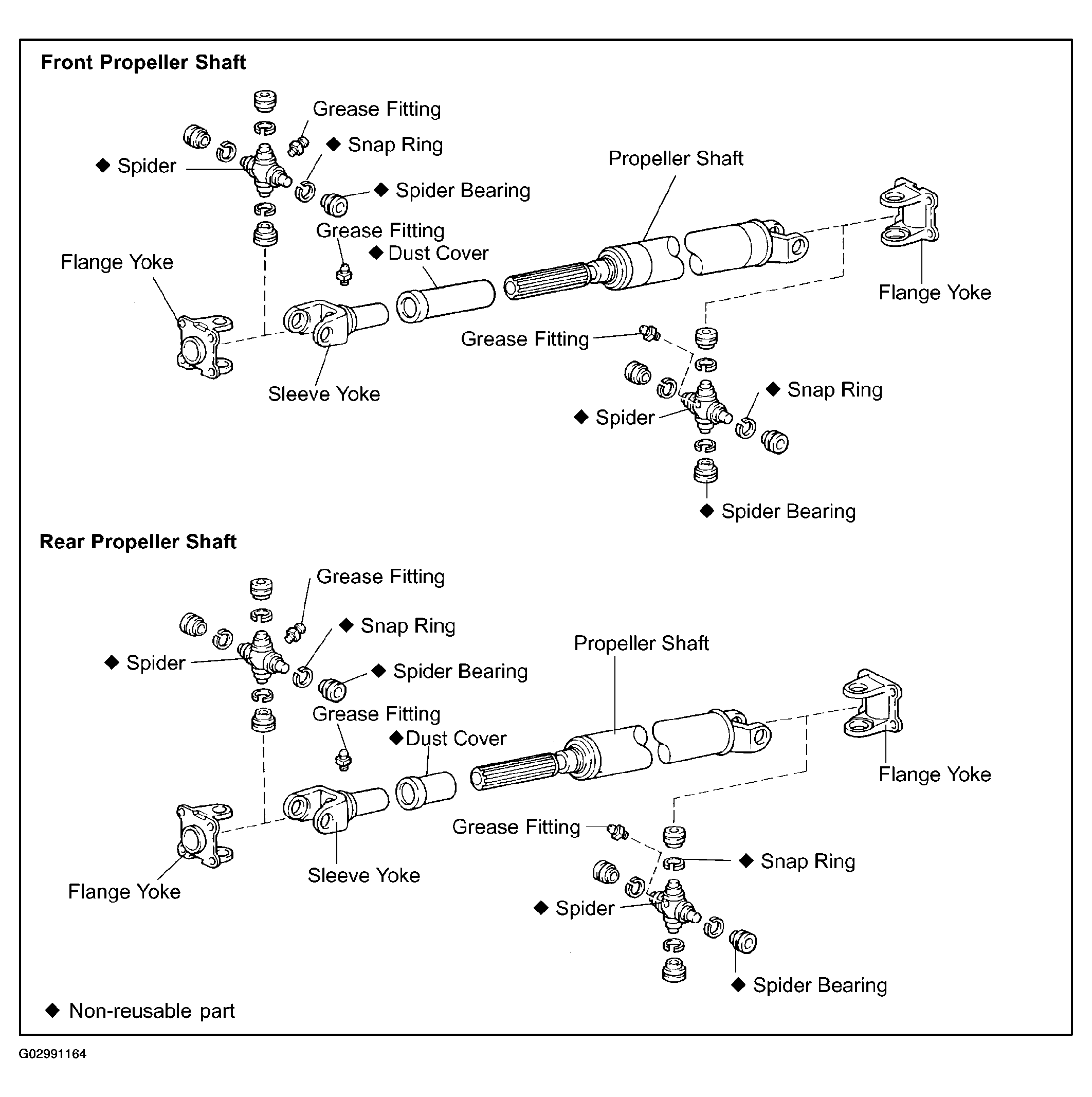

Fig 2: Identifying Components Propeller Shaft Assembly (2 Of 2)
G02991164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
