Timing Belt: Components

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

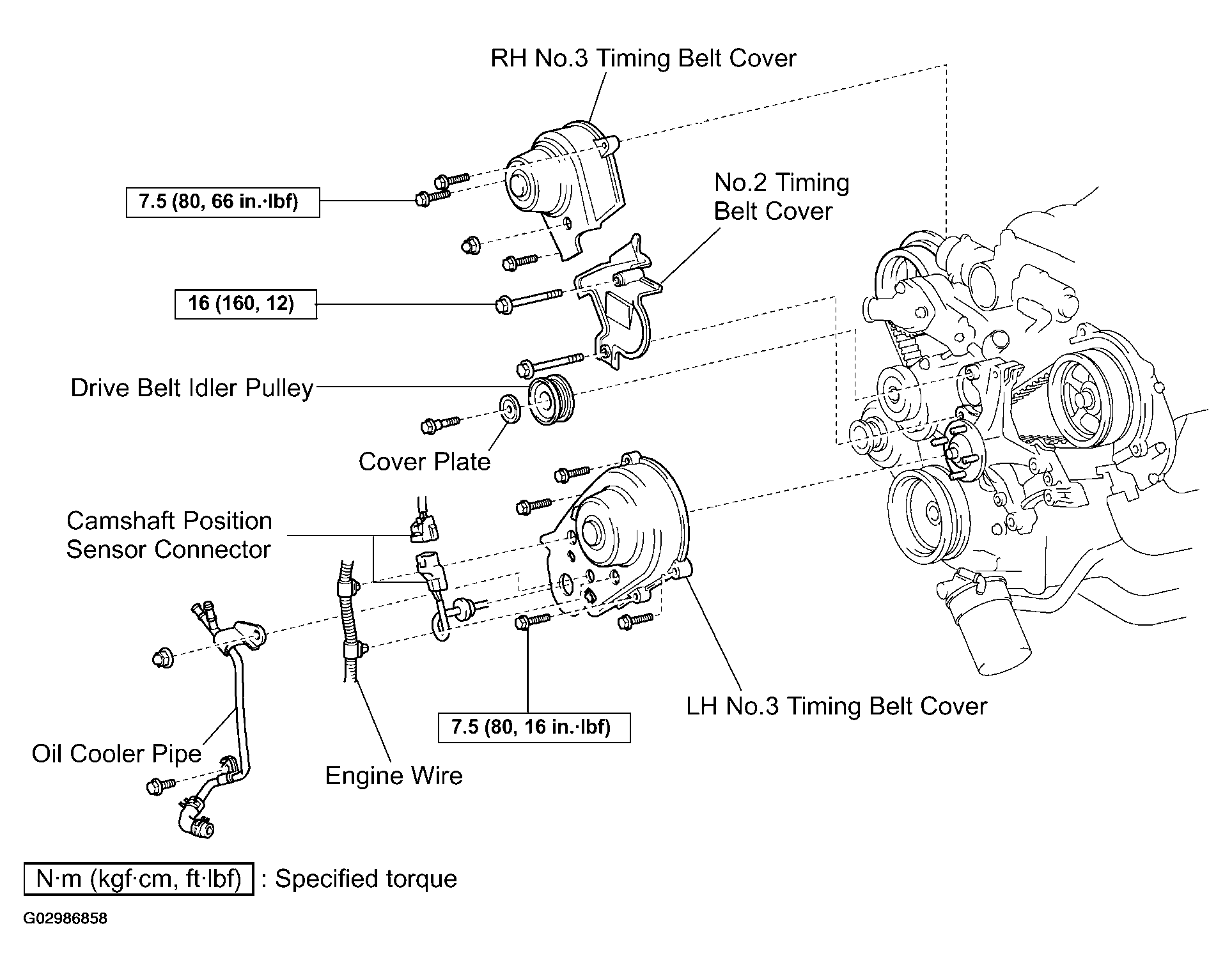

Fig 1: Exploded View Of Timing Belt Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

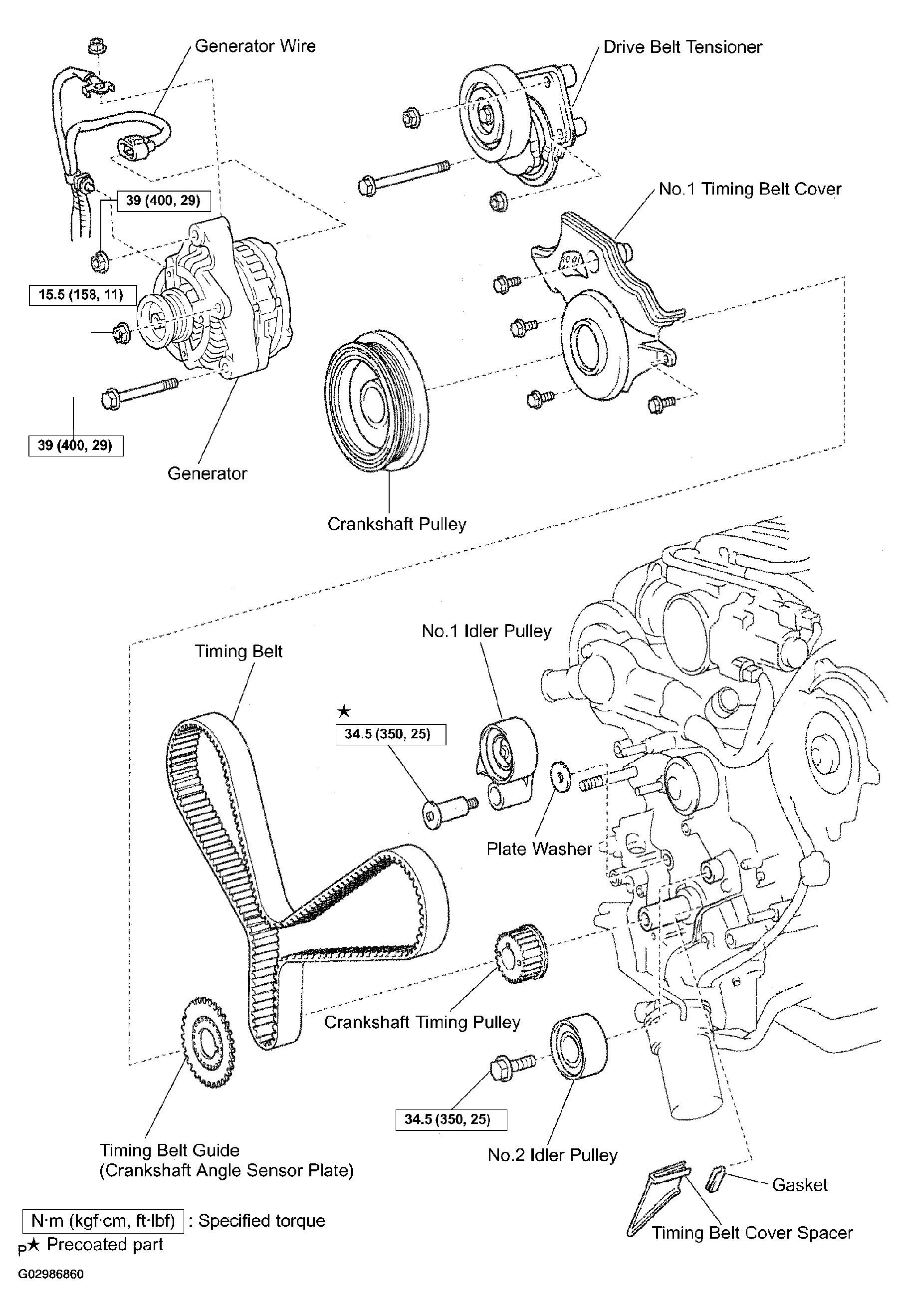

Fig 2: Exploded View Of Timing Belt Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

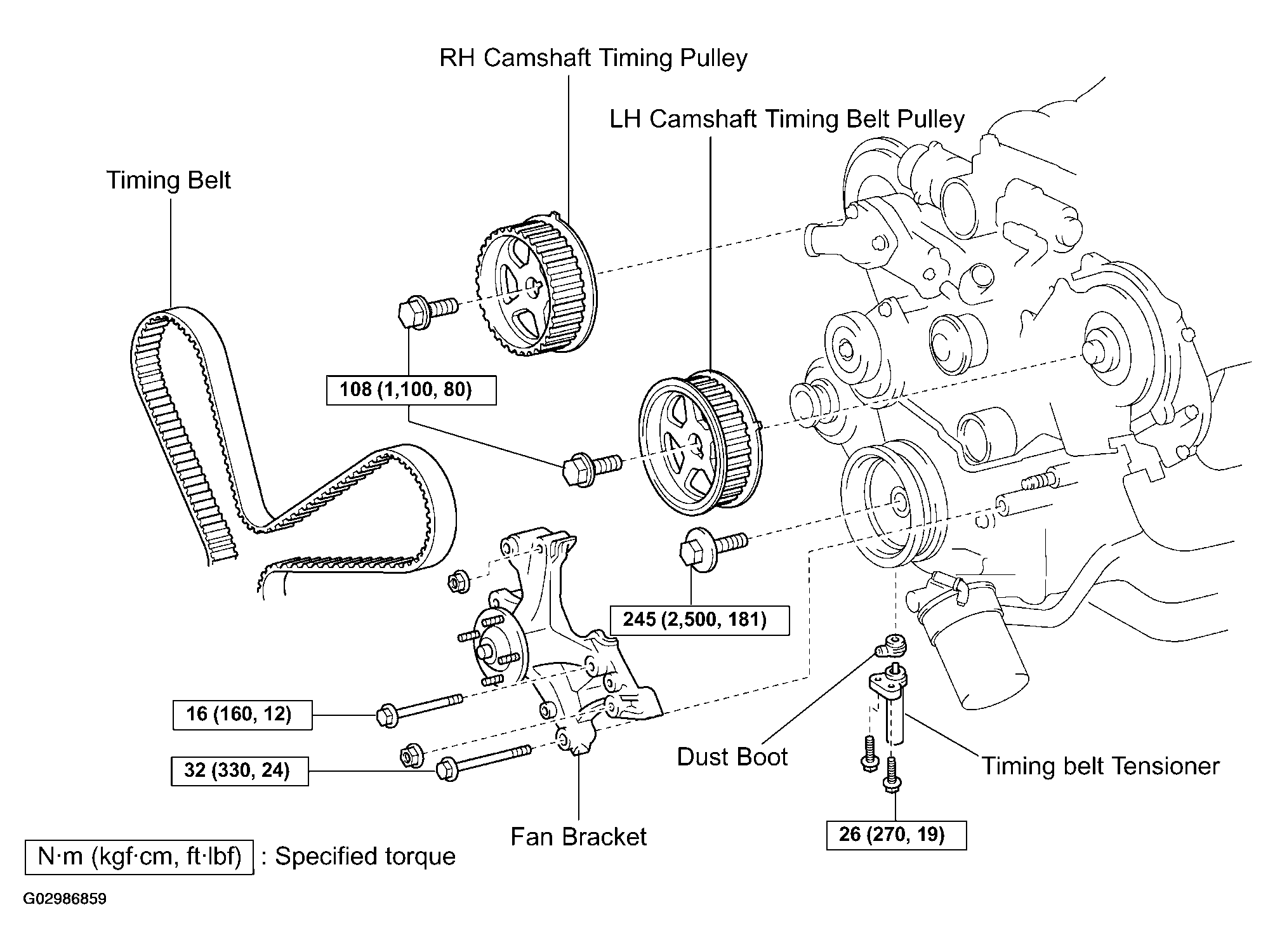

Fig 3: Exploded View Of Timing Belt Components (3 Of 4)

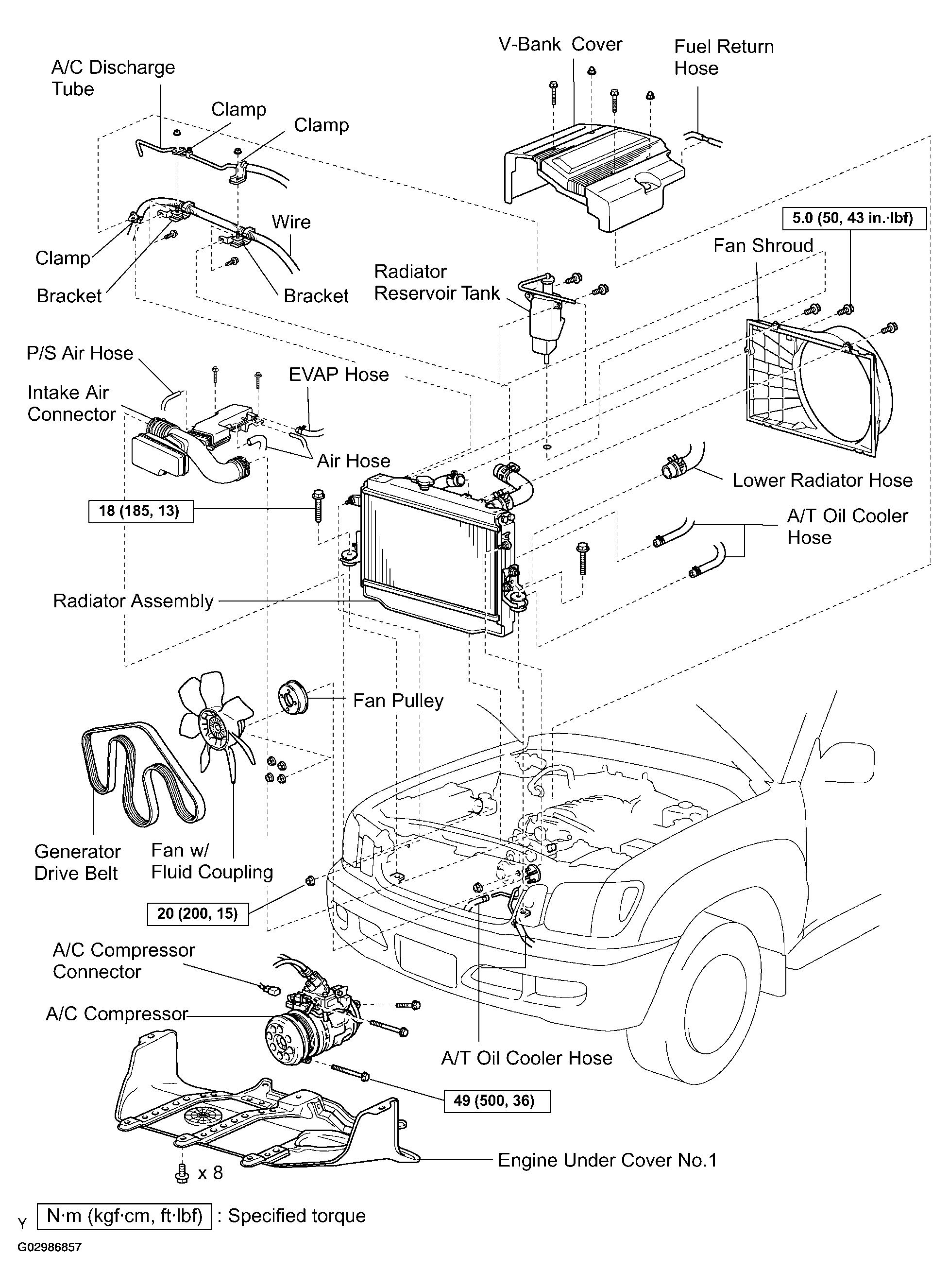

Fig 4: Exploded View Of Timing Belt Components (4 Of 4)
