Cylinder Block: Components

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

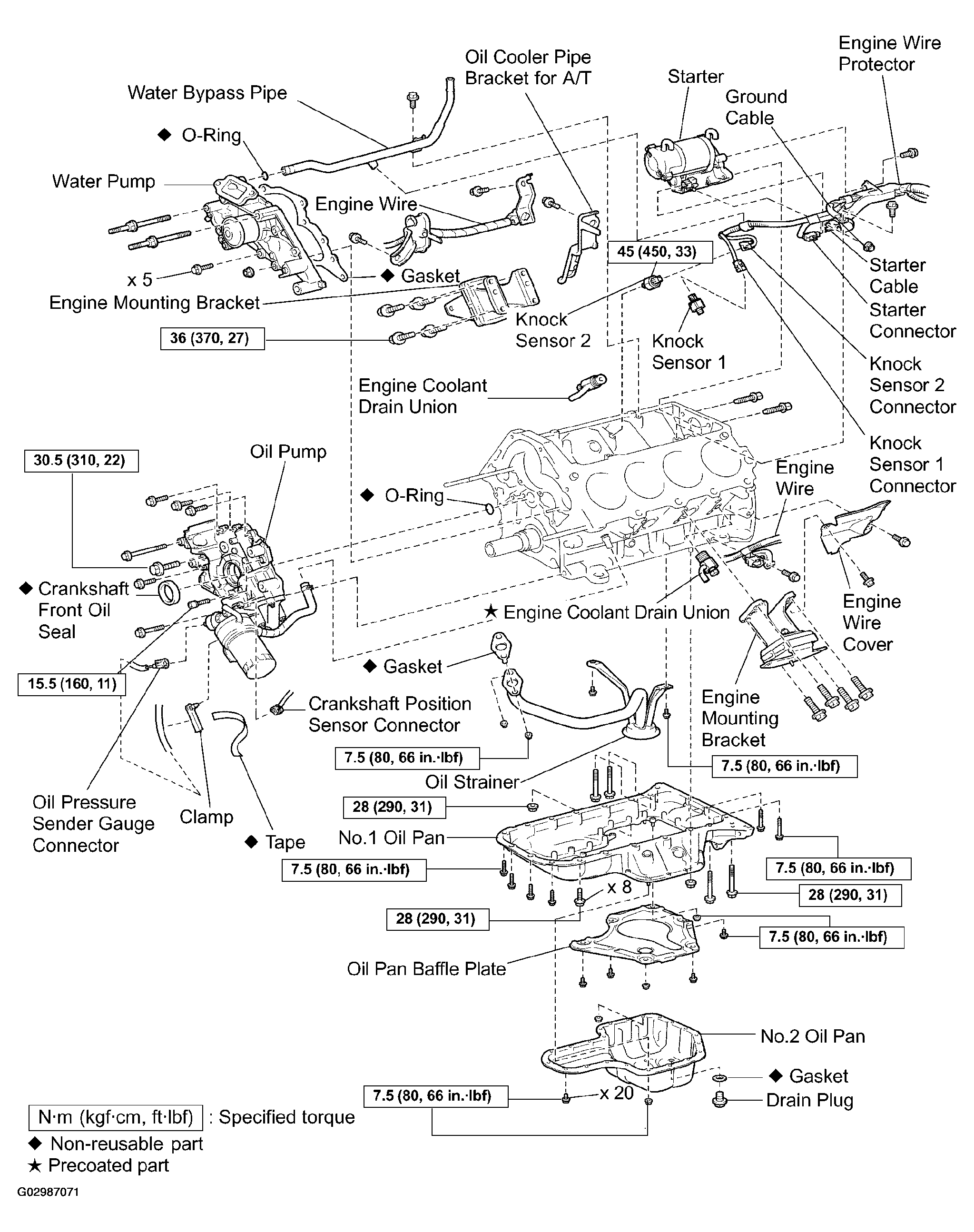

Fig 1: Cylinder Block Components (1 Of 2)
G02987071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

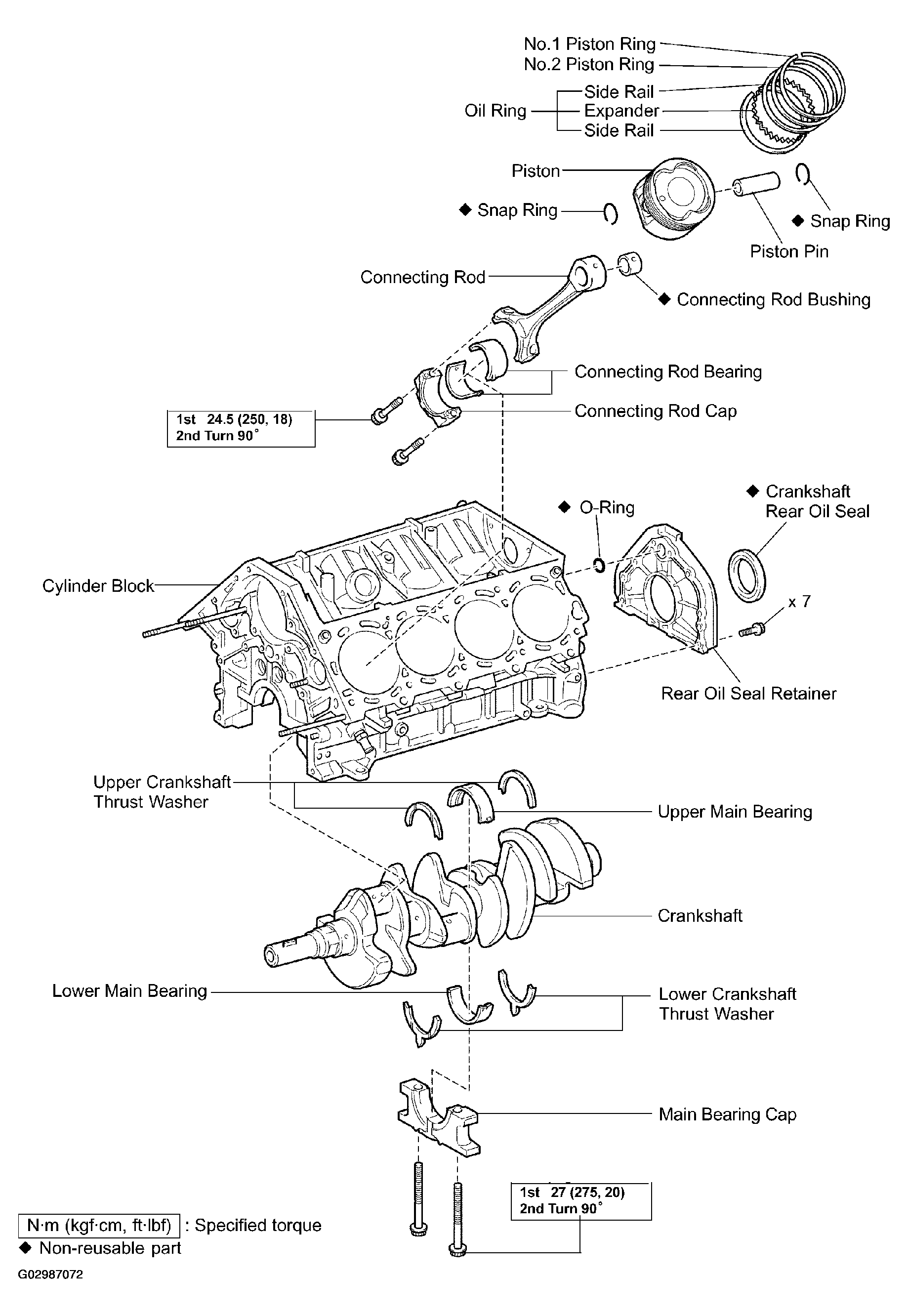

Fig 2: Cylinder Block Components (2 Of 2)
G02987072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
