Section 24 (Engine Mechanical): Co/HC: Inspection
WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
This check is used only to determine whether or not the idle CO/HC complies with regulations.
- INITIAL CONDITIONS
- The engine is at normal operating temperature.
- Air cleaner is installed.
- All pipes and hoses of the air induction system are connected.
- All accessories are switched OFF.
- All vacuum lines are properly connected.
HINT:
All vacuum hoses should be properly connected.
- SFI system wiring connectors are fully plugged.
- Ignition timing is set correctly.
- Transmission is in neutral range.
- Tachometer and CO/HC meter are calibrated by hand.
- START ENGINE
- RACE ENGINE AT 2,500 RPM FOR APPROX. 180 SECONDS

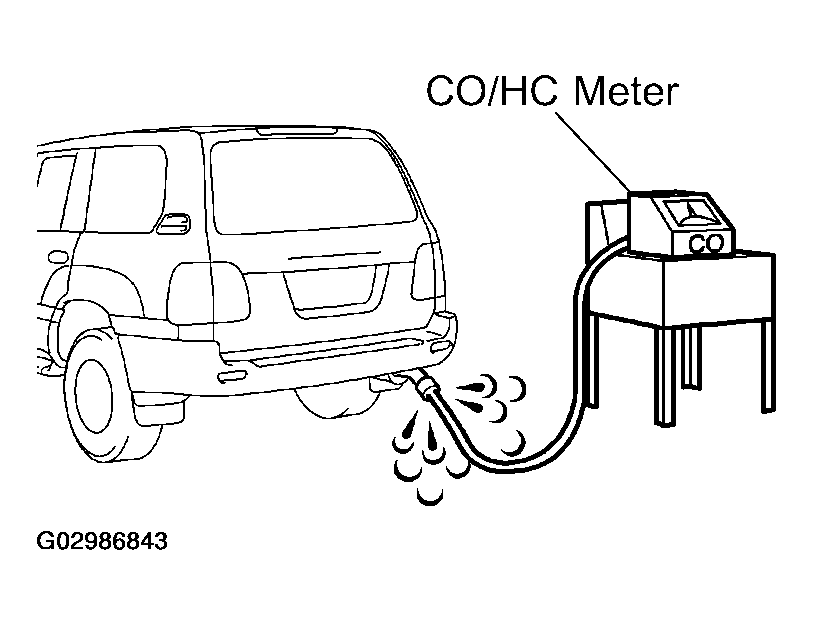

- INSERT CO/HC METER TESTING PROBE AT LEAST 40 cm (1.3 ft) INTO TAILPIPE DURING IDLING
- IMMEDIATELY CHECK CO/HC CONCENTRATION AT IDLE AND/OR 2,500 RPM
HINT:
When performing the 2 mode (2,500 rpm and idle) test, follow the measurement order prescribed by the applicable local regulations.
- TROUBLESHOOTING

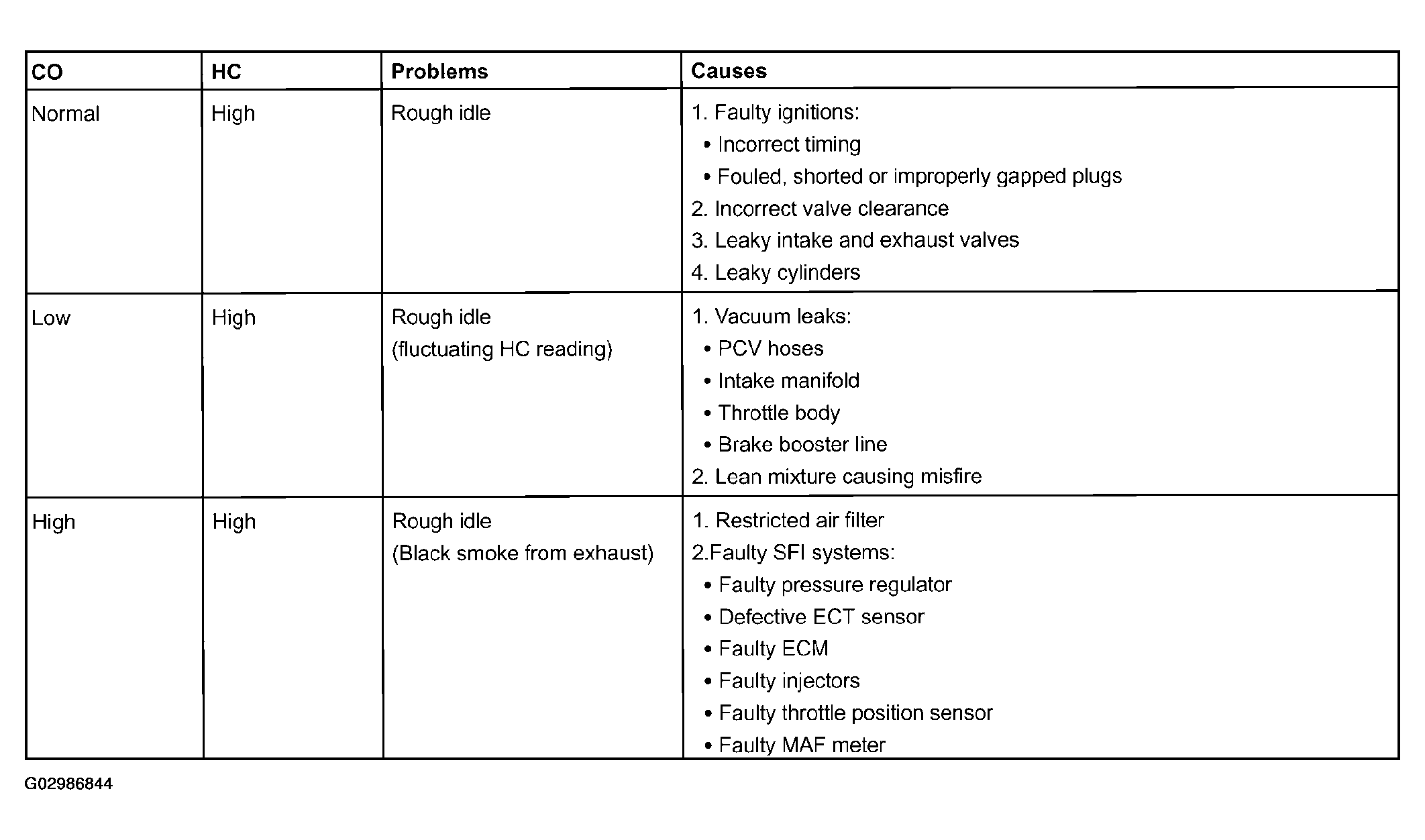

If the CO/HC concentration does not comply with the regulations, perform troubleshooting in the order given below. See the table below for possible causes, and then inspect and correct the applicable causes if necessary.
