Problem Symptoms Table

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

FRONT A/C

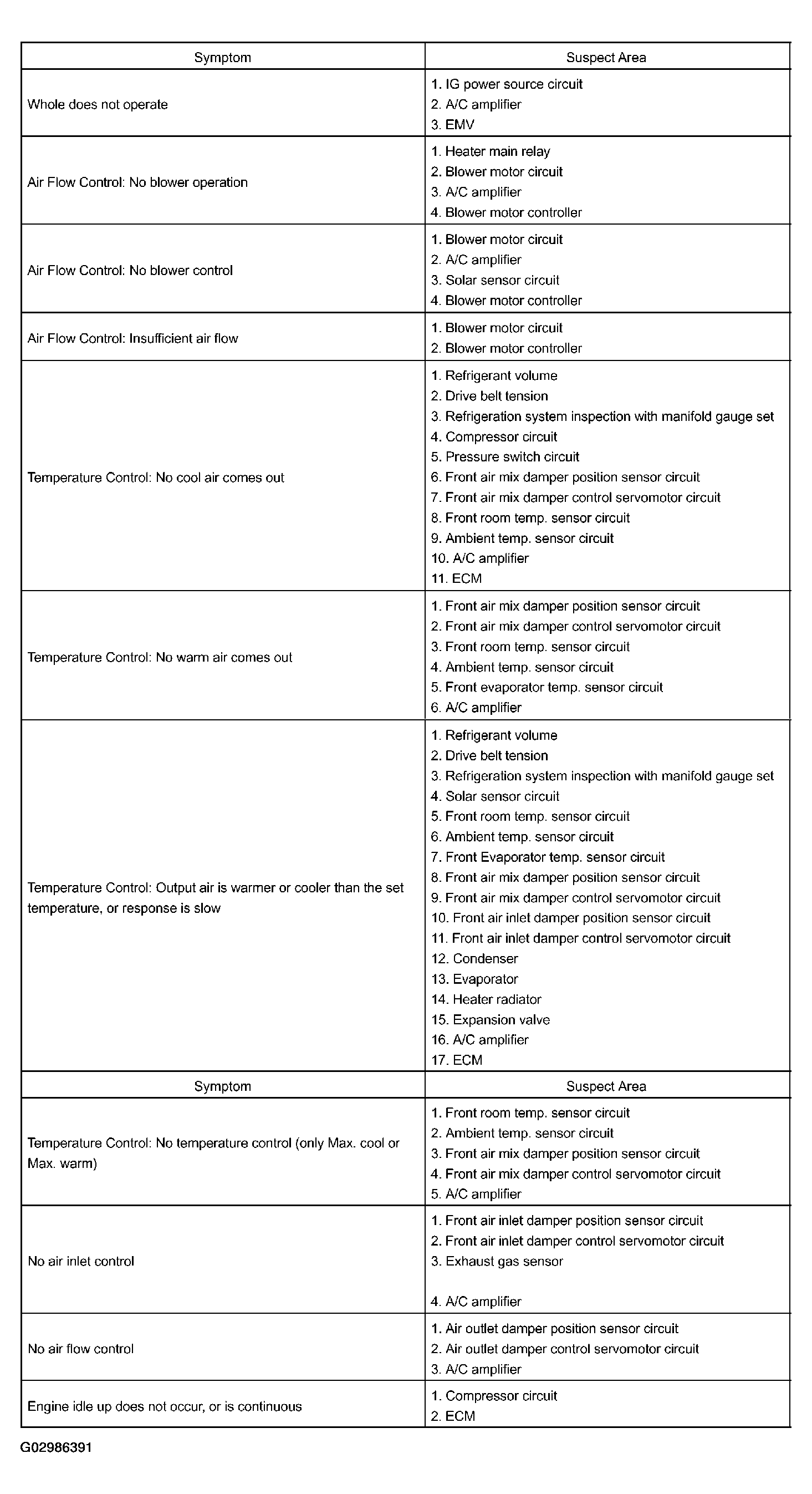

Fig 1: Problem Symptoms Chart (Front A/C)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REAR A/C

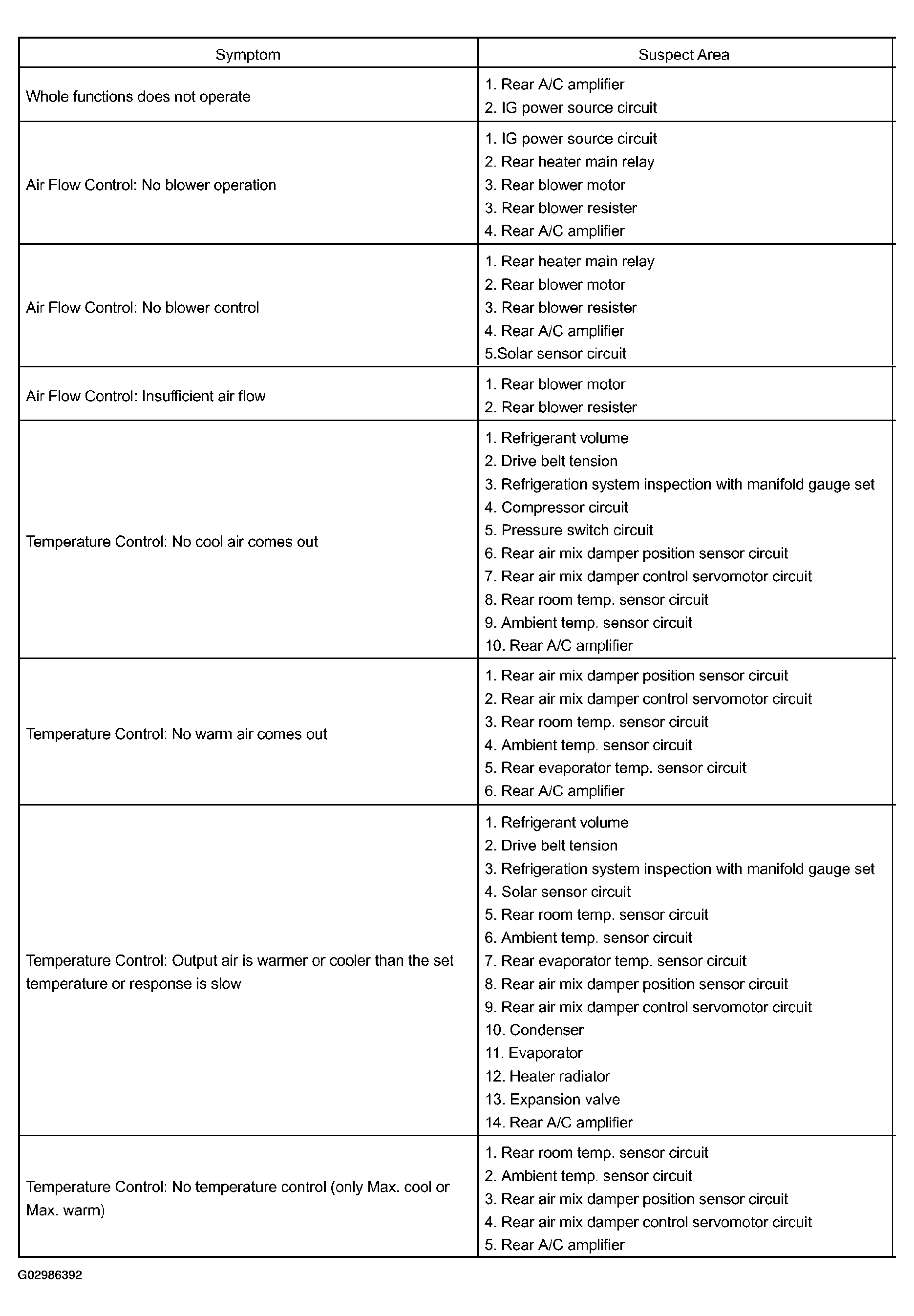

Fig 2: Problem Symptoms Chart (Rear A/C)
