Fuel Injector ASSY (2UZ-FE): Components

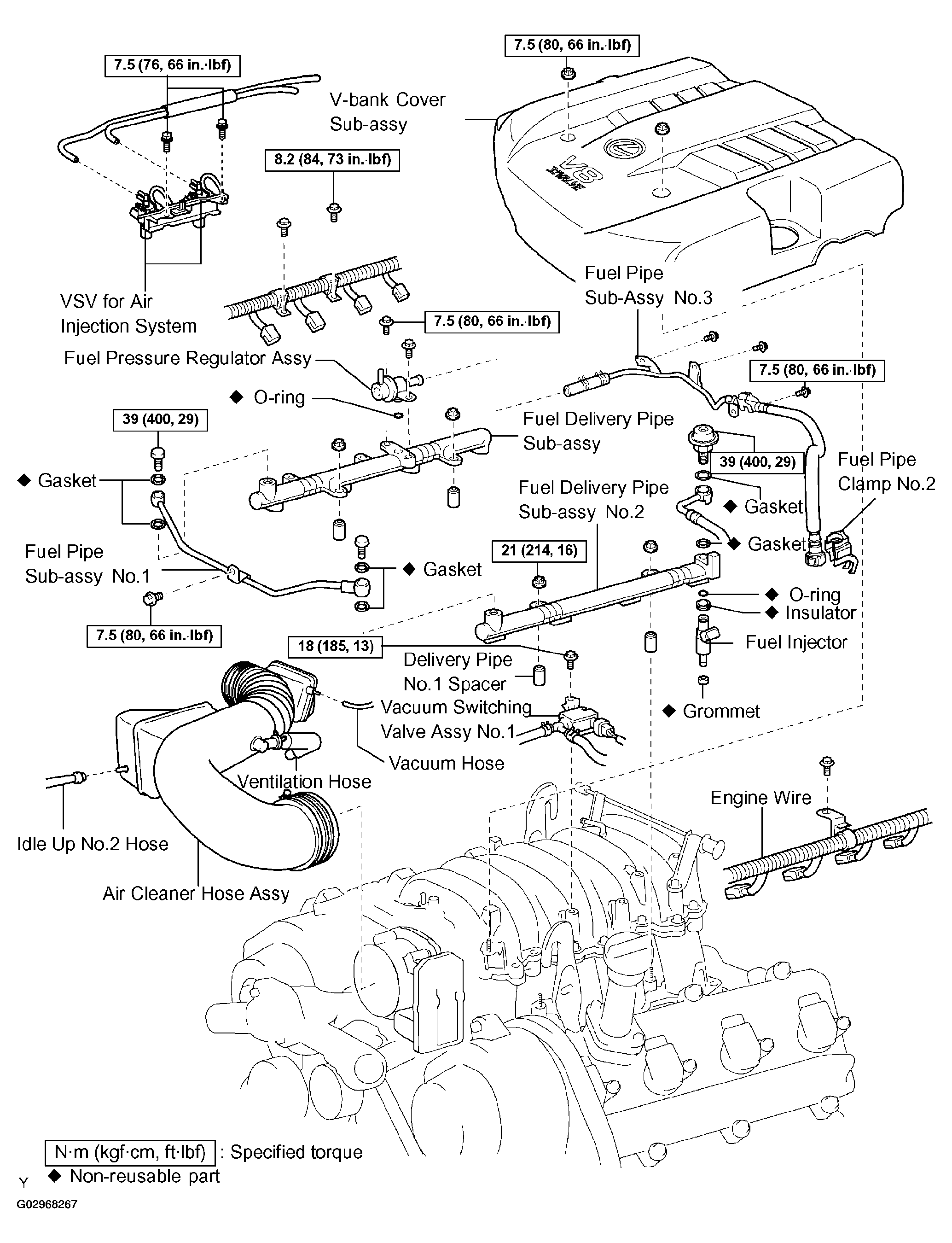

Fig 1: Identifying Fuel Injector Assy Components & Replacements (2UZ-FE)

G02968267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
