Lexus
>>
2005
>>
GX 470
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Combination Meter - Diagnostics
>>
System Diagram
System Diagram

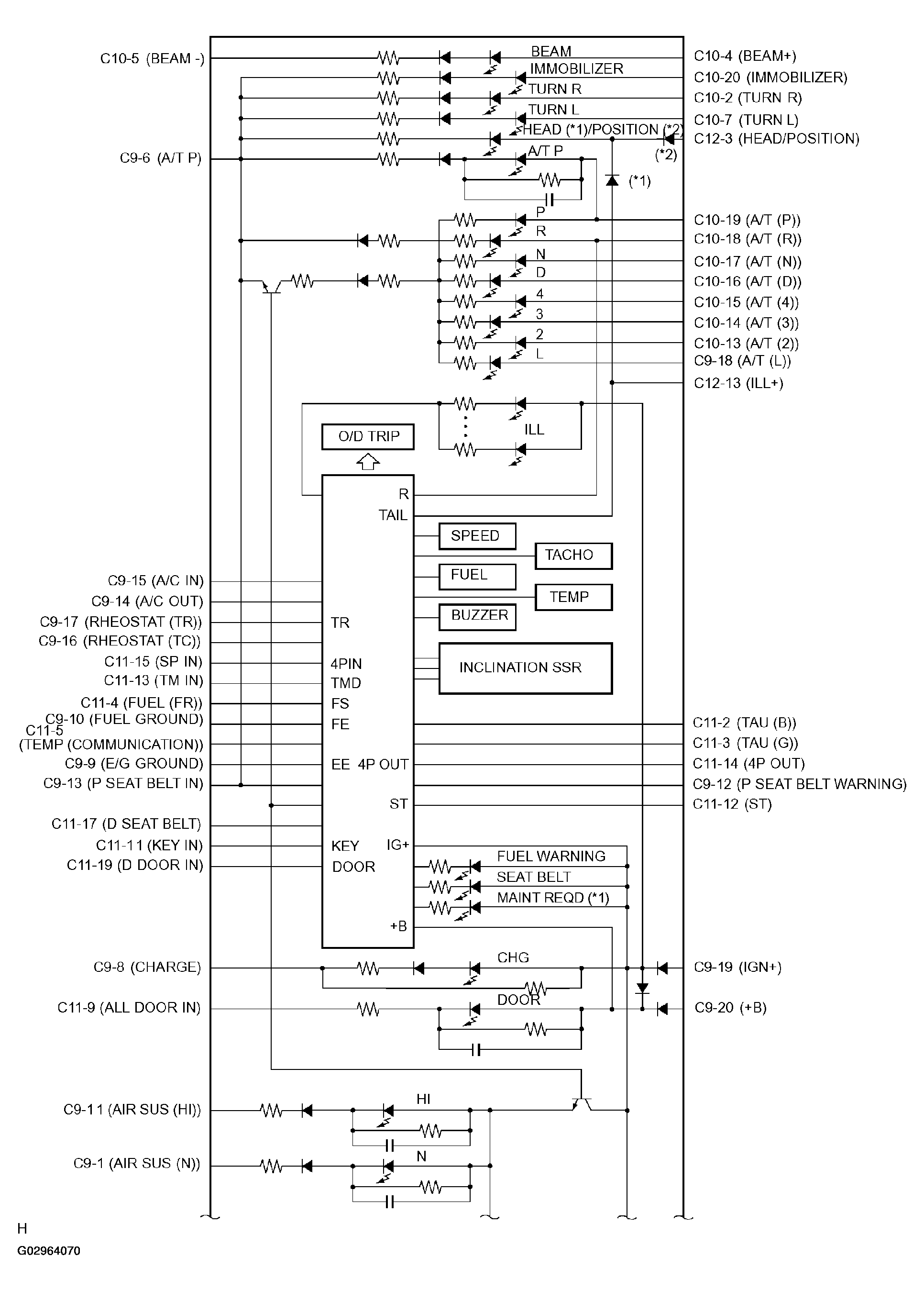

Fig 1: Combination Meter System Diagram (1 Of 5)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

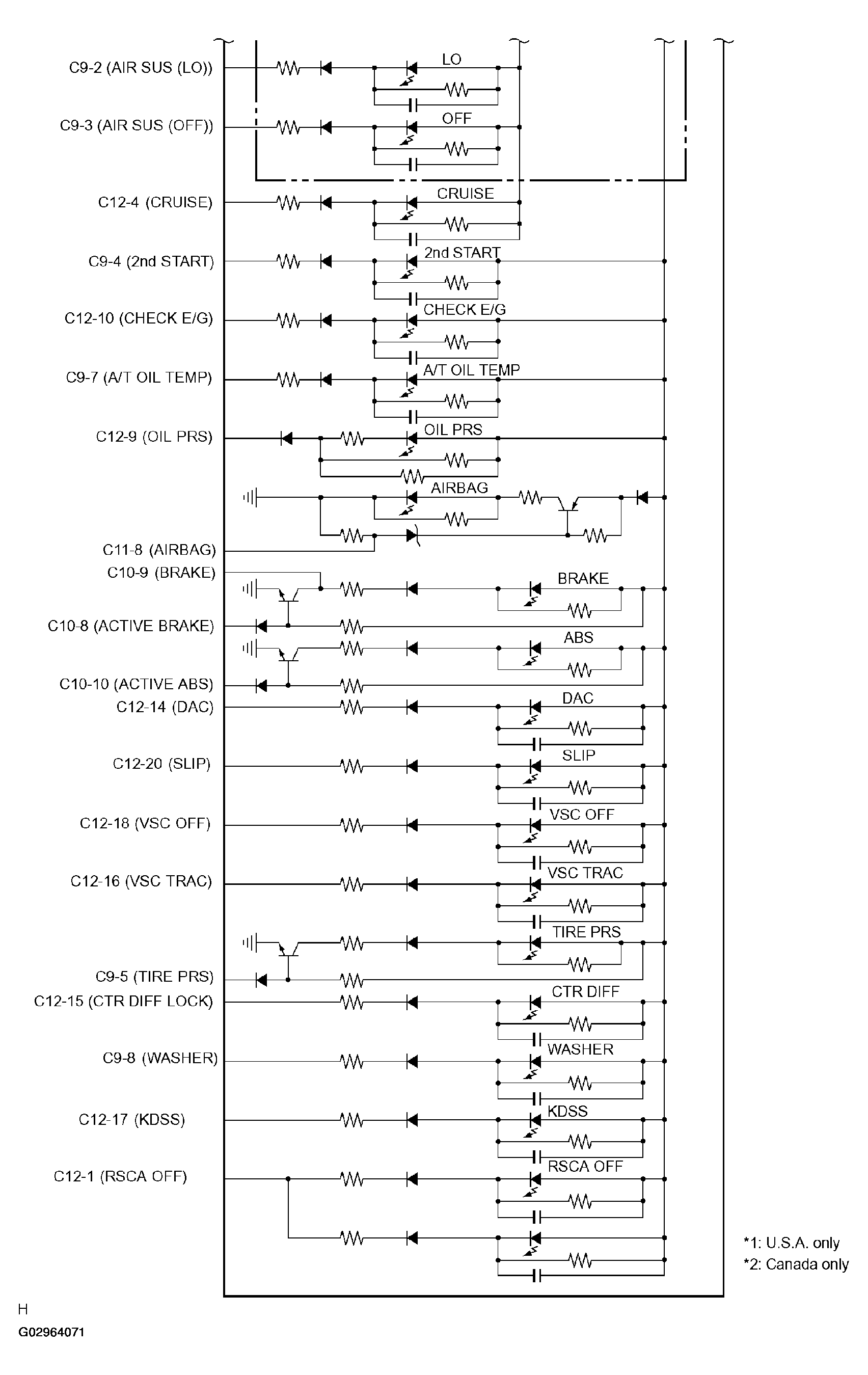

Fig 2: Combination Meter System Diagram (2 Of 5)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

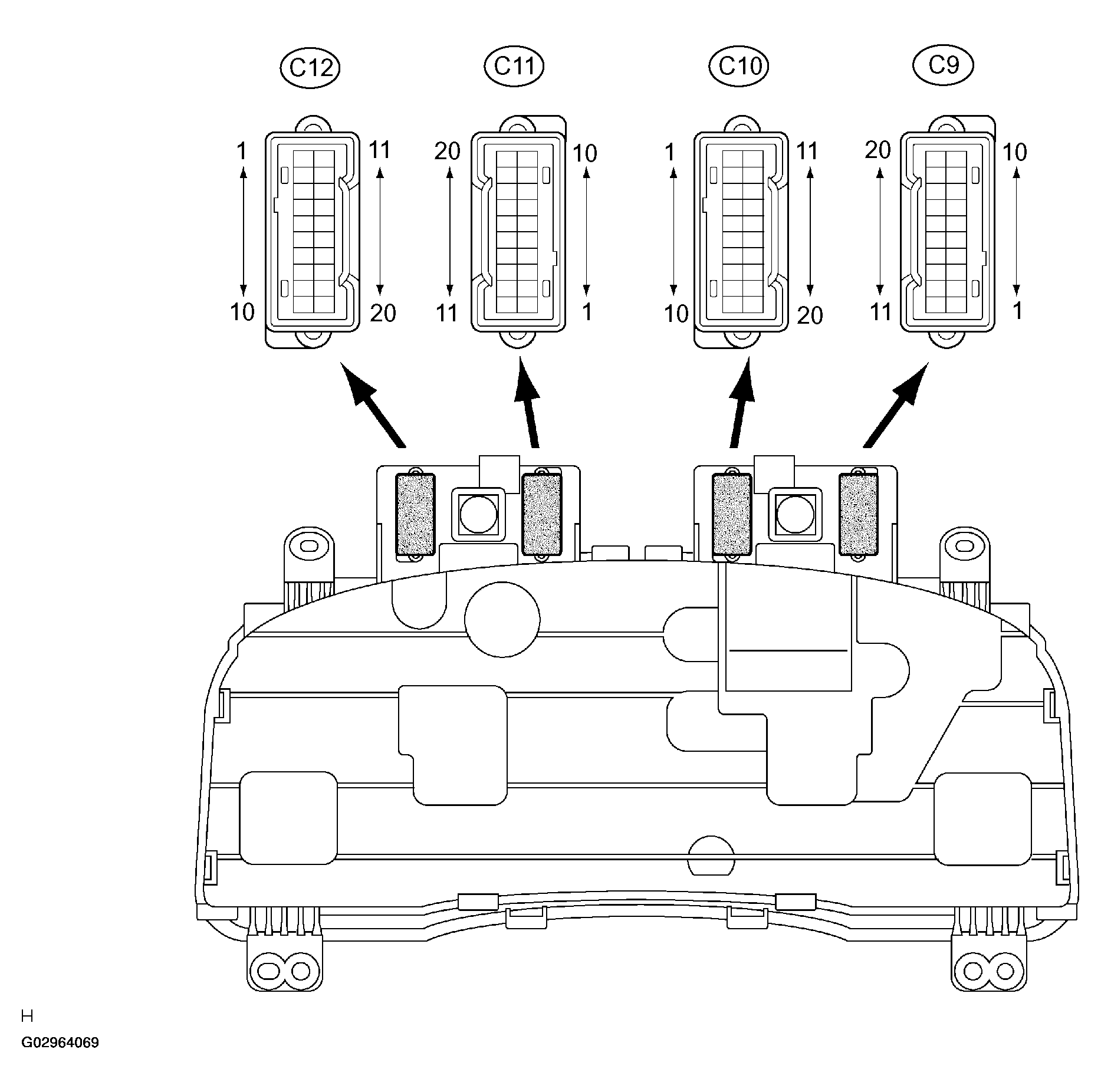

Fig 3: Combination Meter System Diagram (3 Of 5)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

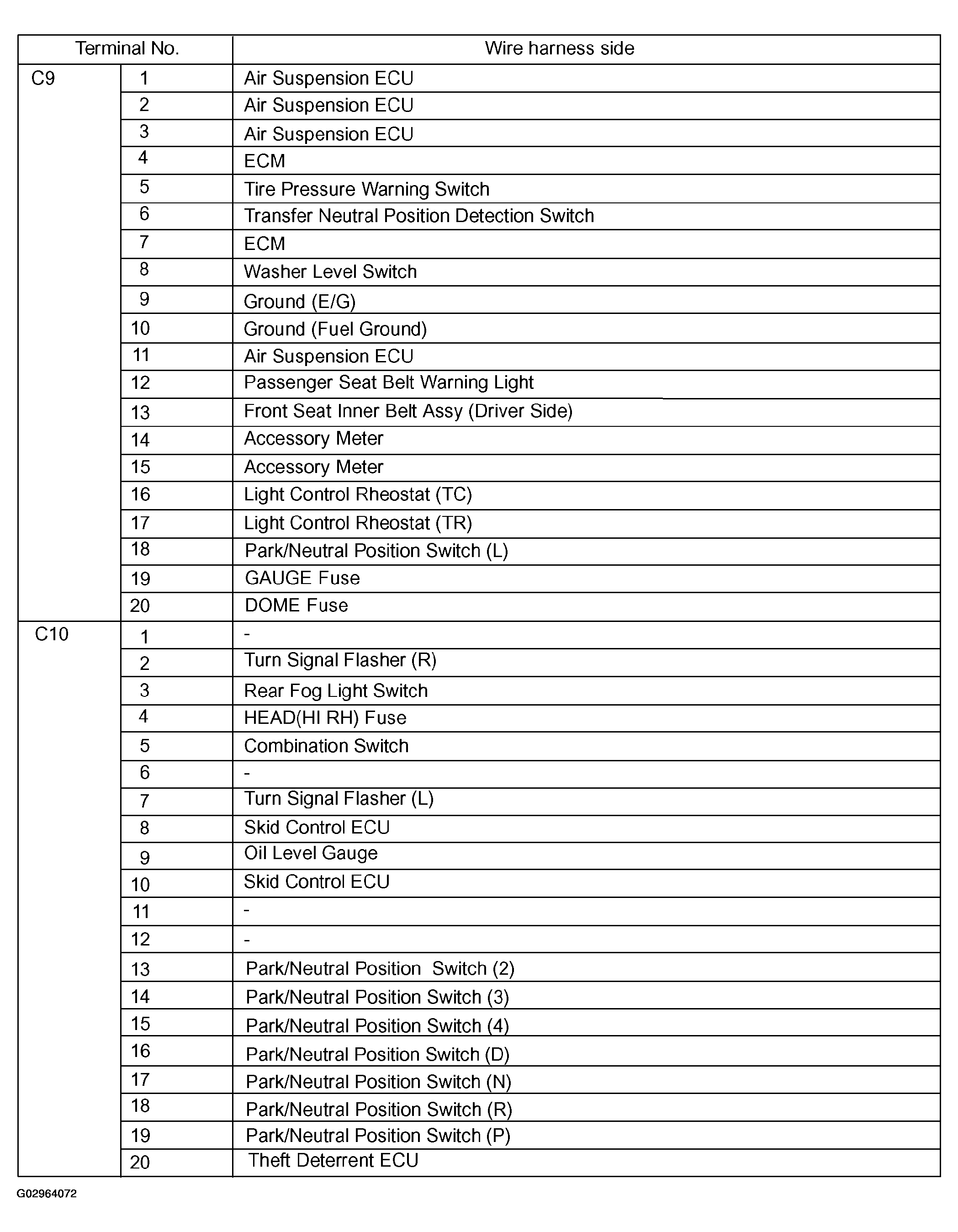

Fig 4: Combination Meter System Diagram (4 Of 5)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

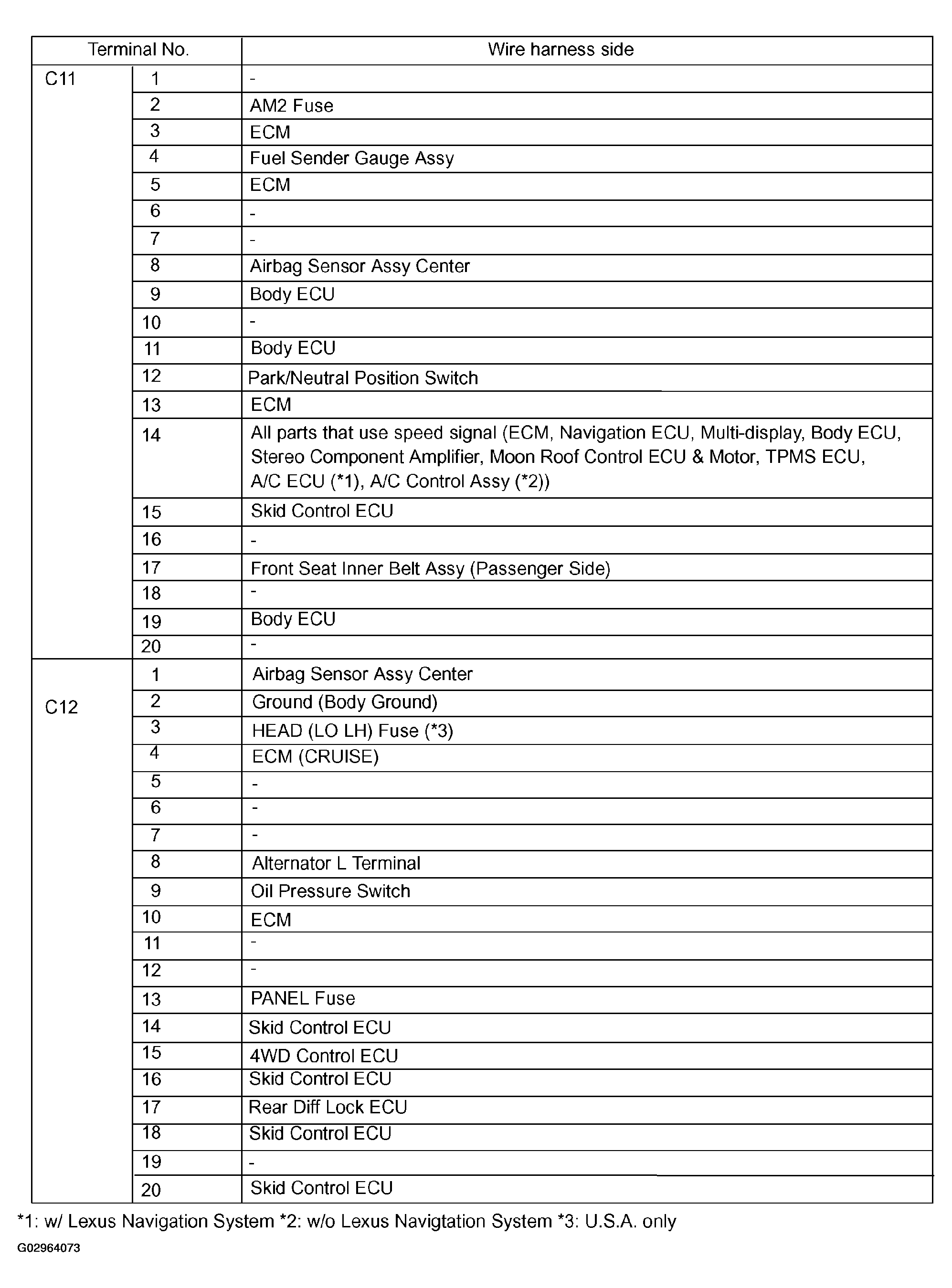

Fig 5: Combination Meter System Diagram (5 Of 5)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
