Starting System (2UZ-FE): Inspection

  1. INSPECT STARTER ASSY
    NOTE: These tests must be done within 3 to 5 seconds to avoid burning out the coil.
    1. Do pull-in test.
      1. Disconnect the field coil lead wire from terminal C.
      2. Connect the battery to the magnetic switch as shown in Fig 1. Check that the clutch pinion gear moves outward.

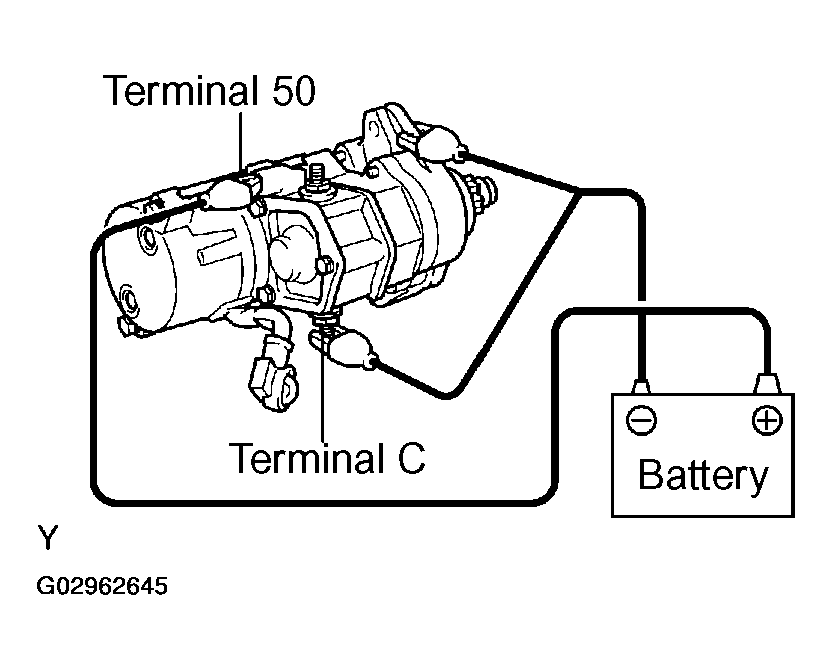

        Fig 1: Doing Pull-In Test
        G02962645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Do holding test.
      1. With battery connected as above with the clutch pinion gear out, disconnect the negative (-) lead from terminal C. Check that the pinion gear remains out.
        Fig 2: Doing Holding Test
        G02962646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Inspect clutch pinion gear return.
      1. Disconnect the negative (-) lead from the switch body. Check that the clutch pinion gear returns inward.
        Fig 3: Inspecting Clutch Pinion Gear Return
        G02962647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Perform the operation test without load.
      1. Connect the field coil lead wire to terminal C.

        Torque: 5.9 N.m (60 kgf.cm, 52 in.lbf)

      2. Grip the starter in a vise.
      3. Connect the battery and ammeter to the starter as shown in Fig 4.
      4. Check that the ammeter reads the specified current.

        Specified current: 100 A or less at 11.5 V

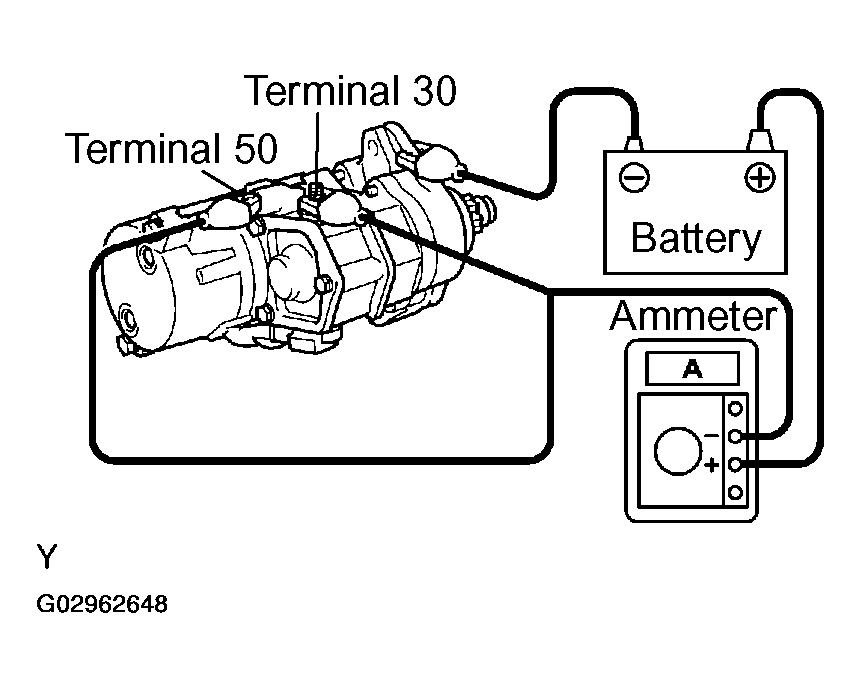

        Fig 4: Performing Operation Test Without Load
        G02962648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT STARTER RELAY ASSY
    1. Continuity inspection.
      1. Using an ohmmeter, check that there is continuity between each terminal.

        Specified condition:

        STARTER RELAY ASSY

        Between terminals Specified condition
        1 - 2 Continuity
        3 - 5 No continuity
        Fig 5: Inspecting Starter Relay Assy
        G02962649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using an ohmmeter, check that there is continuity between terminals 3 and 5 when the between voltage is applied across terminals 1 and 2.

        Specified condition: Continuity

  3. INSPECT ACC RELAY NO. 2
    1. Continuity inspection.
      1. Using an ohmmeter, check that there is continuity between each terminal.

        Specified condition:

        ACC RELAY NO. 2

        Between terminals Specified condition
        1 - 2 Continuity
        3 - 4 Continuity
        3 - 5 No continuity
        Fig 6: Inspecting ACC Relay No. 2
        G02962650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using an ohmmeter, check that there is continuity between terminals 3 and 5 when the between voltage is applied across terminals 1 and 2.

        Specified condition: Continuity
