Circuit Description

The power window master switch monitors the condition of the power window motor to detect the position of the door glass by using pulse signals output from the 2 pulse sensors in the power window motor.

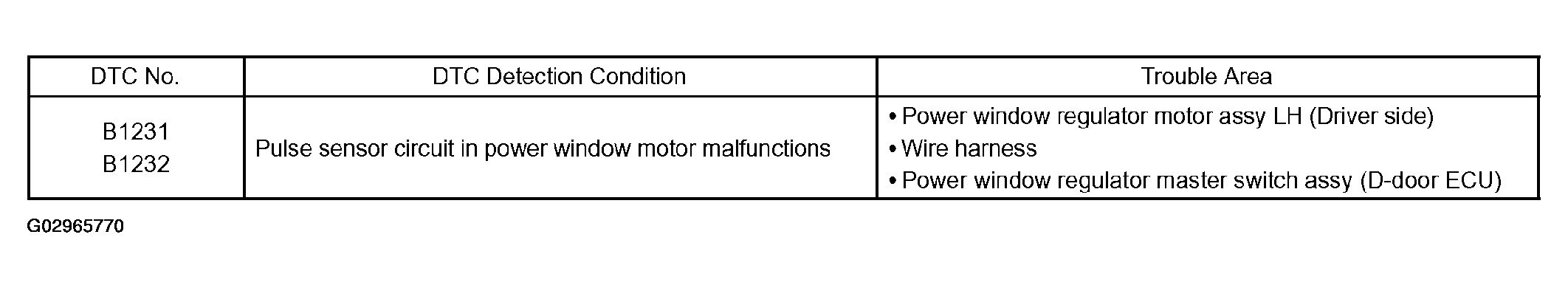

Fig 1: DTC Detection Condition Trouble Area Table
G02965770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
