Auto Up/Down Function Does Not Operate At Passenger Side: Wiring Diagram

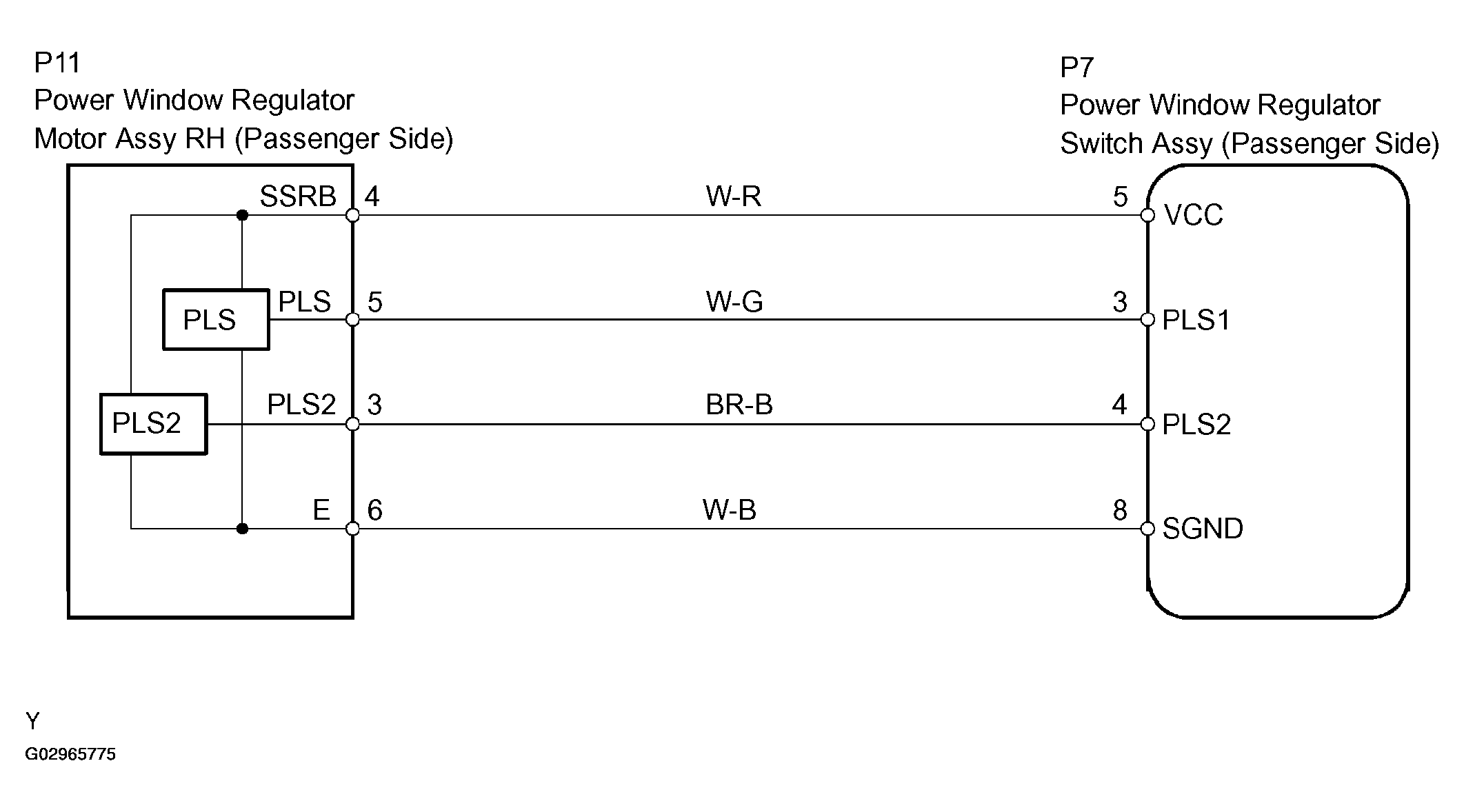

Fig 1: Auto Up/Down Function Does Not Operate At Passenger Side Wiring Diagram

G02965775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
