Front Door: Components

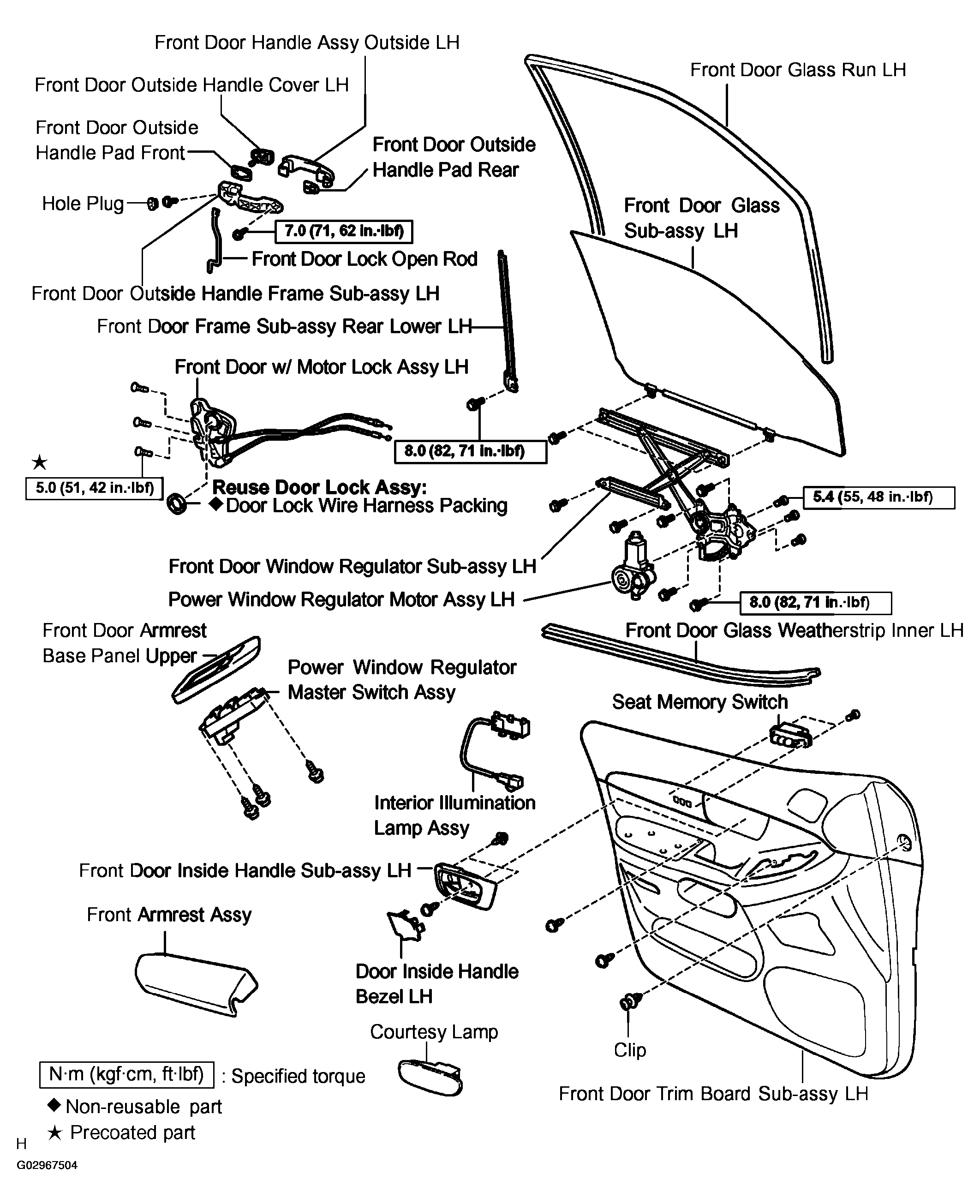

Fig 1: Identifying Front Door Components (1 Of 2)
G02967504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

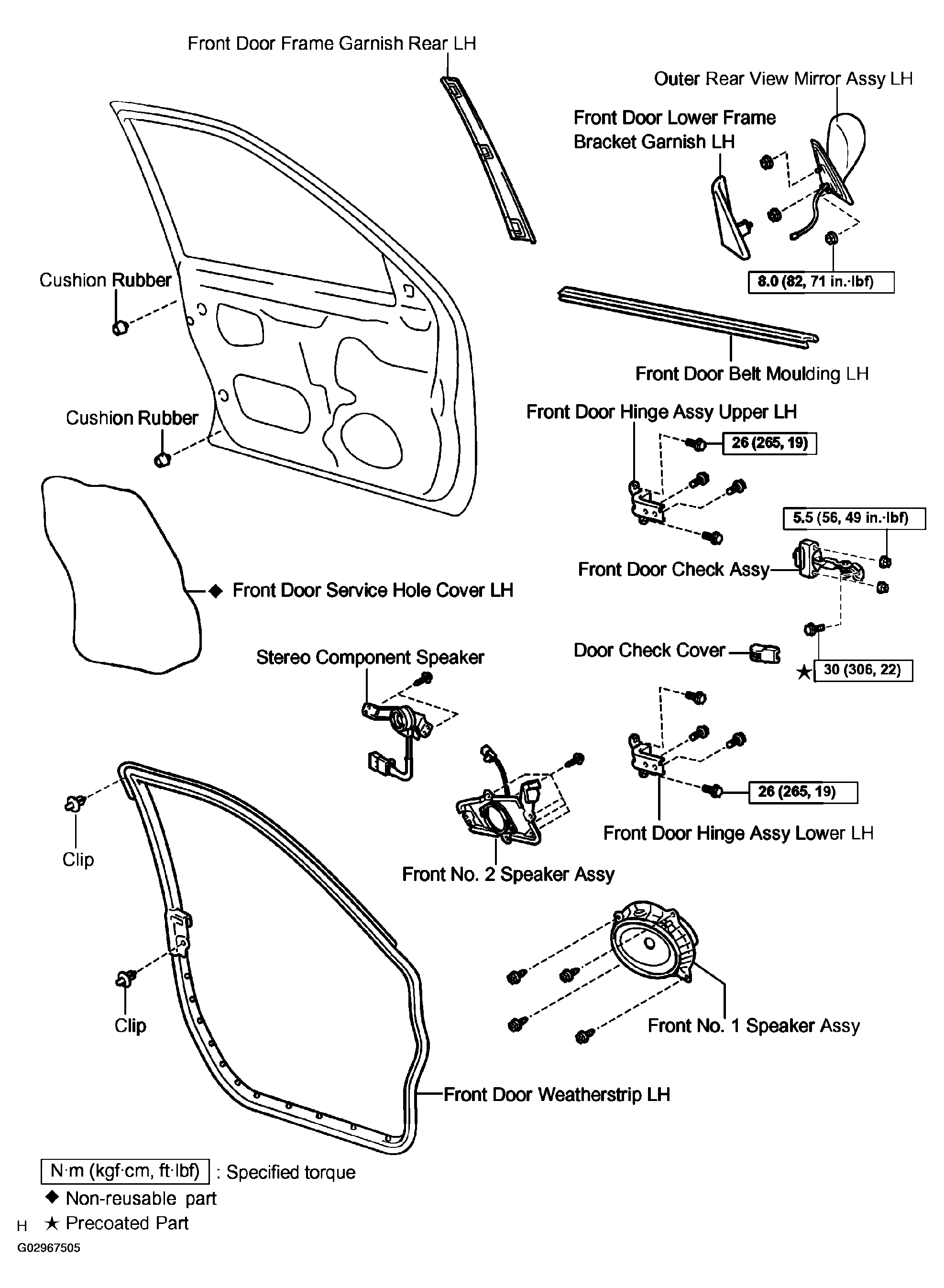

Fig 2: Identifying Front Door Components (2 Of 2)
G02967505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
