Home >> Lexus >> 2005 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat >> Front Power Seat Control System >> Location

Front Power Seat Control System: Location

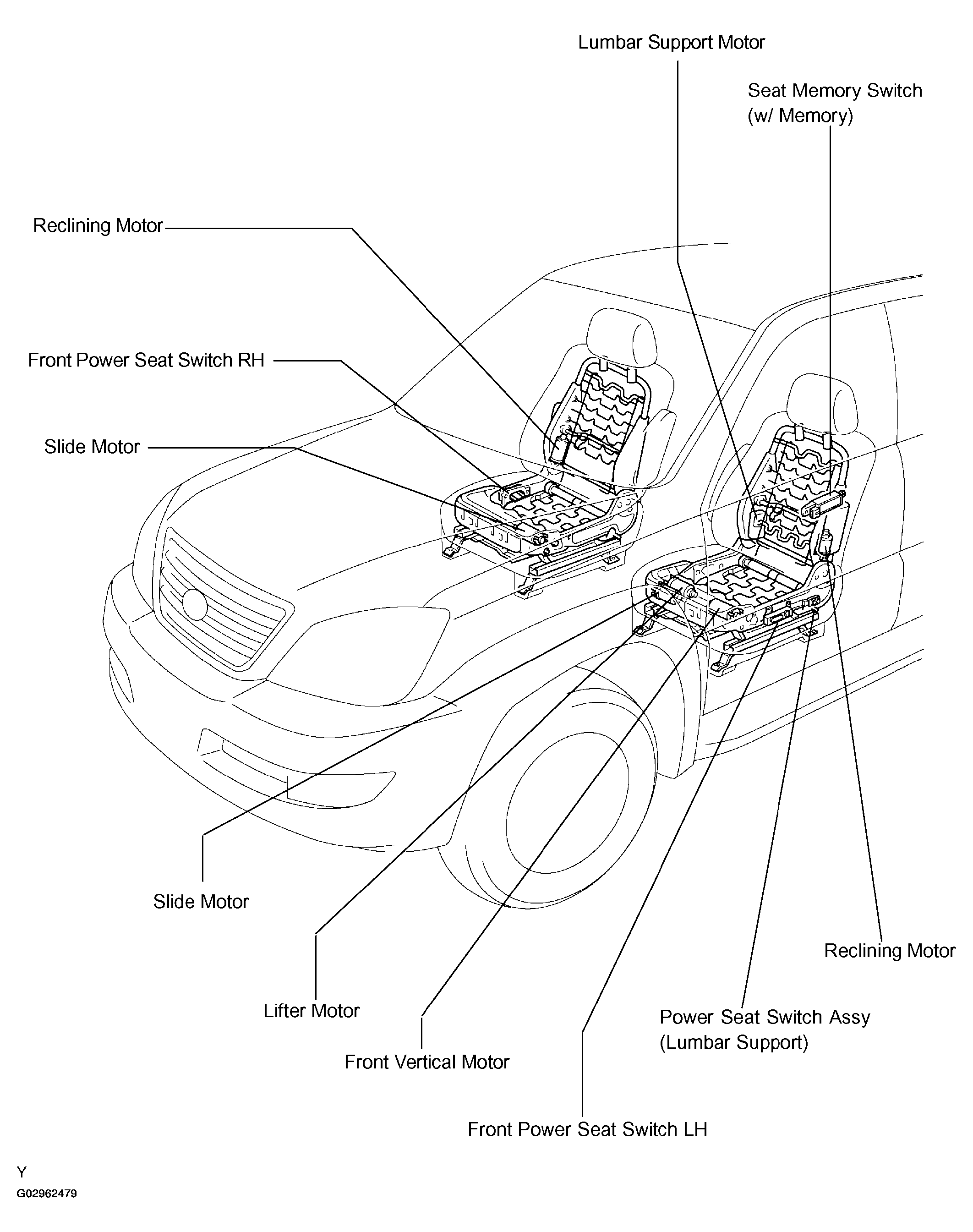

Fig 1: Locating Front Power Seat Control System Components & Replacements

G02962479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
