Front Power Seat Control System (W/Memory) - Diagnostics: Location

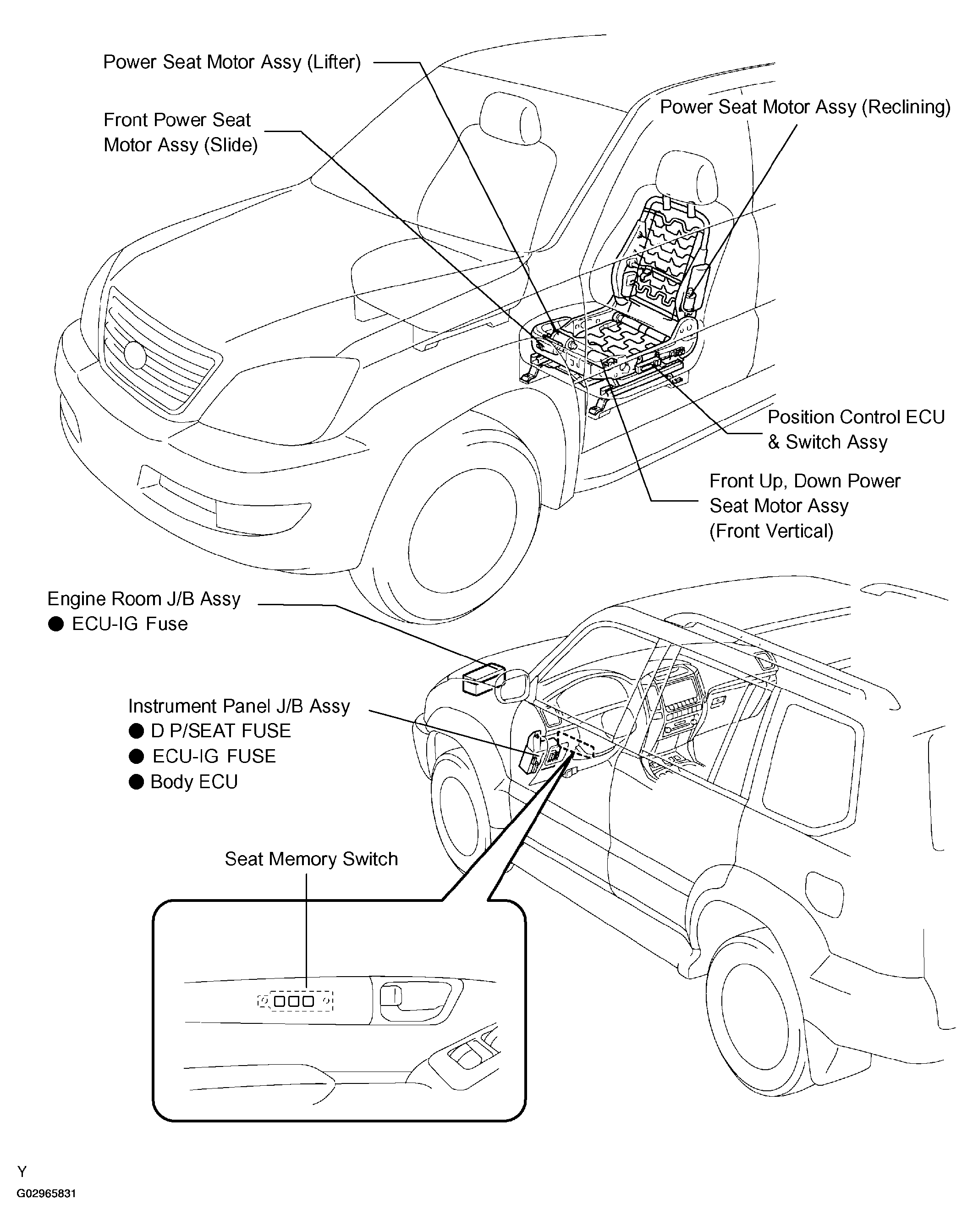

Fig 1: Locating Front Power Seat Control System Components (With Memory)

G02965831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
