When Using Hand-Held Tester:
- READ VALUE OF HAND-HELD TESTER (COURTESY LAMP SWITCH)
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Select the item "D DOR CTY SW" in the DATA LIST and read its value displayed on the hand-held tester.
Standard:
- ON: Driver side door is open
- OFF: Driver side door is closed
- OK: Go to step 4 .
- NG: Go to next step.
- INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)
- Remove the courtesy lamp switch.
- Check the switch continuity.
Standard:

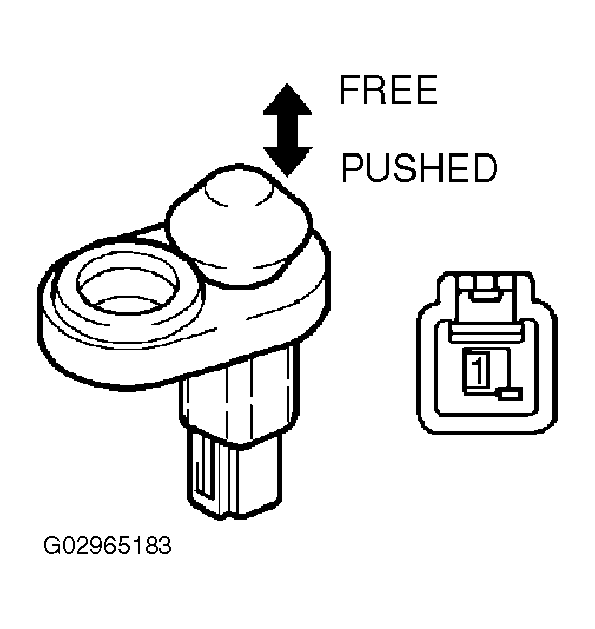

FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)Terminal No. Condition Specified Condition 1 <=> Body ground Switch Free Continuity 1 <=> Body ground Switch Pushed No continuity
- NG: REPLACE FRONT DOOR COURTESY LAMP SWITCH ASSY
- OK: Go to next step.
- CHECK WIRE HARNESS (INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU) <->COURTESY LAMP SWITCH)
- Disconnect the B4 J/B connector.
- Disconnect the D12 courtesy lamp switch connector.
- Check the continuity between the wire harness side connectors.
Standard:

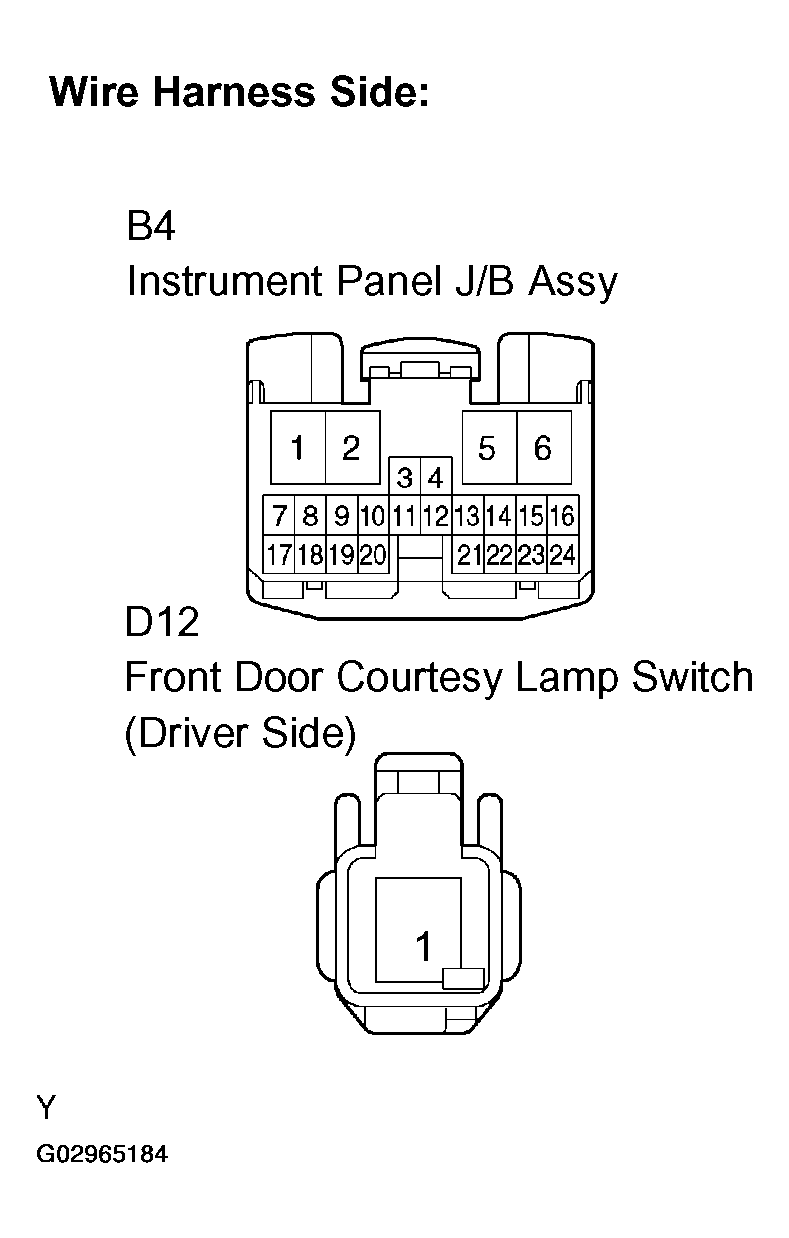

INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU) <->COURTESY LAMP SWITCHSymbols (Terminal No.) Specified Condition DCTY (B4-23) <=> + (D12-1) Continuity
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: Go to next step.
- CHECK BUZZER (COMBINATION METER) (SEE PROBLEM SYMPTOMS TABLE
)
- NG: GO TO COMBINATION METER SYSTEM (SEE PROBLEM SYMPTOMS TABLE )
- OK: Go to next step.
- READ VALUE OF HAND-HELD TESTER (KEY UNLOCK WARNING SWITCH)
- Connect the hand-held tester to the DLC3.
- Turn the ignition switch ON and push the hand-held tester main switch ON.
- Select the item "KEY UNLK WRN SW" in the DATA LIST and read its value displayed on the hand-held tester.
Standard:
- ON: The key is in the ignition key cylinder
- OFF: No key is in the ignition key cylinder
- OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
- NG: Go to next step.
- INSPECT UNLOCK WARNING SWITCH ASSY
- Remove the unlock warning switch assy.
- Check the switch continuity.
Standard:

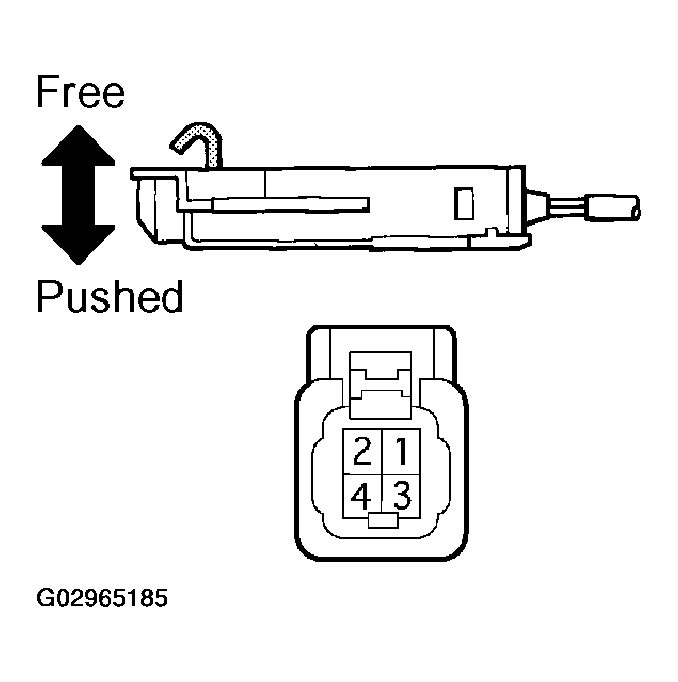

UNLOCK WARNING SWITCH ASSYTerminal No. Condition Specified Condition 1 <=> 2 Free No continuity 1 <=> 2 Pushed Continuity
- NG: REPLACE UNLOCK WARNING SWITCH ASSY
- OK: Go to next step.
- CHECK WIRE HARNESS (INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU) <=> UNLOCK WARNING SWITCH ASSY) (UNLOCK WARNING SWITCH <=> BODY GROUND)
- Disconnect the B5 J/B connector.
- Disconnect the K3 warning switch connector.
- Check the continuity between the wire harness side connectors.
Standard:

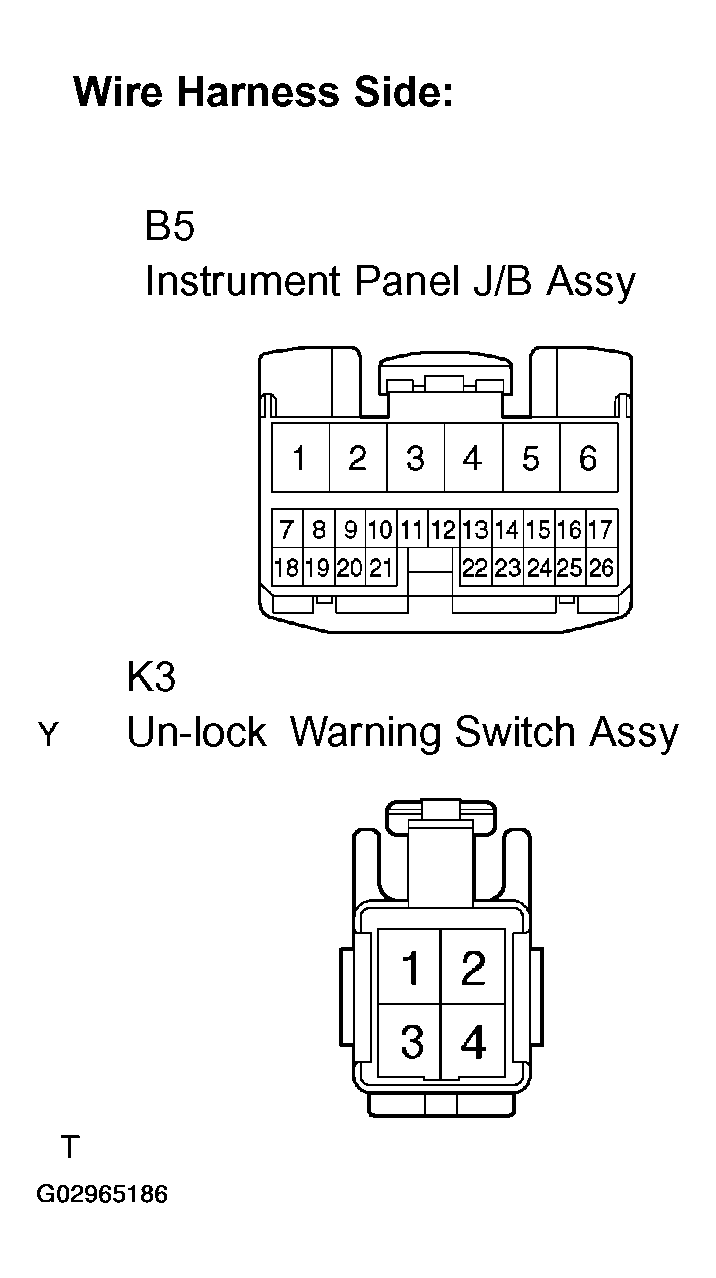

INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU) <=> UNLOCK WARNING SWITCH ASSYSymbols (Terminal No.) Specified Condition KSW (B5-14) <=> + (K3-2) Continuity - Check the continuity between the K3 warning switch connector and body ground.
Standard:
UNLOCK WARNING SWITCH <=> BODY GROUNDTerminal No. Specified Condition K3-1 <=> Body ground Continuity
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY
