Navigation Check Mode (Microphone Check)

HINT:

• The microphone is checked in the "Navigation Check (Microphone Check)" mode.
• Graphics may differ from the actual vehicle depending on vehicle specifications.

1. Enter diagnostic mode (see  DIAGNOSTIC START-UP/FINISH   ).
2. Select "Navigation Check" from the "Diagnosis MENU" screen.

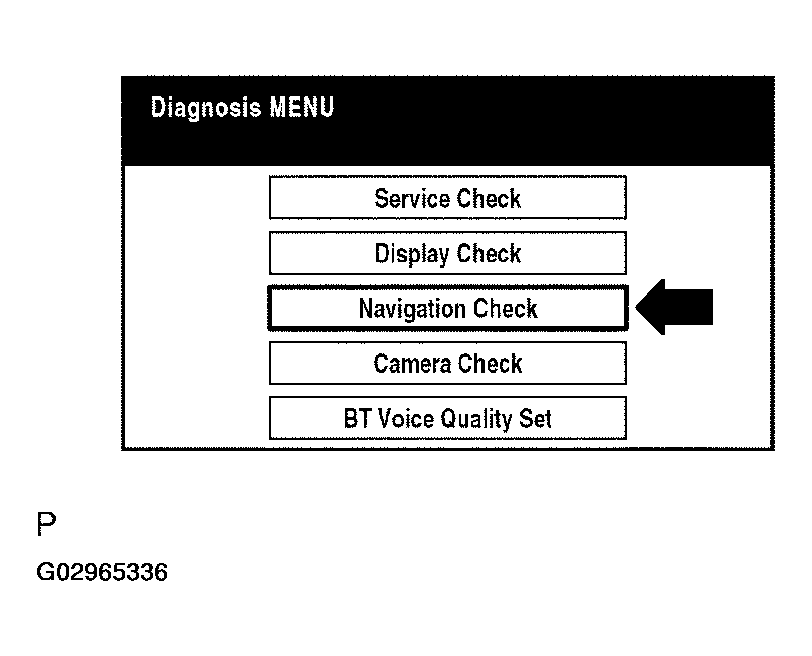

   Fig 1: Identifying Navigation Check Mode (Microphone Check) - Navigation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Microphone Check" from the "Navigation Check" screen.

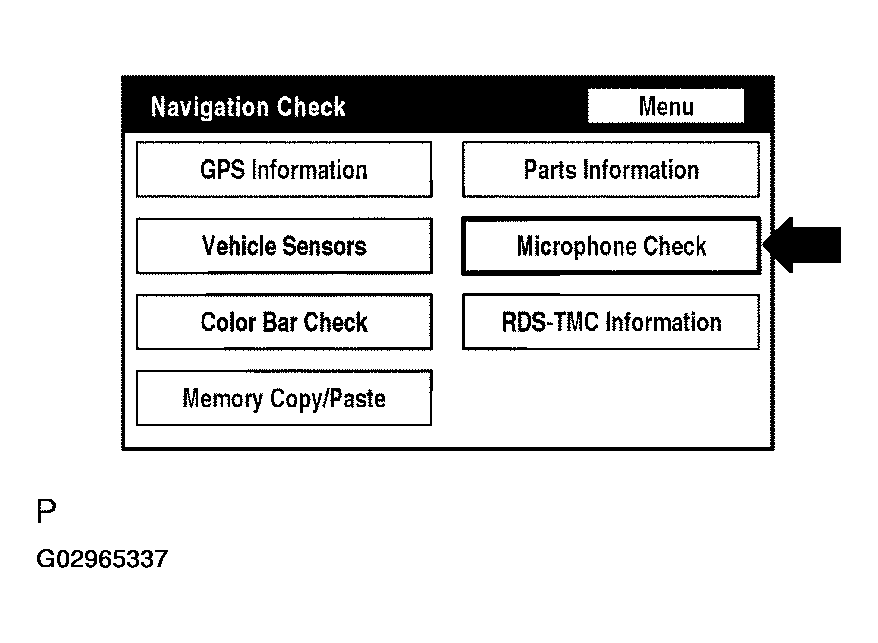

   Fig 2: Identifying Navigation Check Mode (Microphone Check) - Microphone

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Perform the microphone check by following the directions on the "Microphone Check" screen.

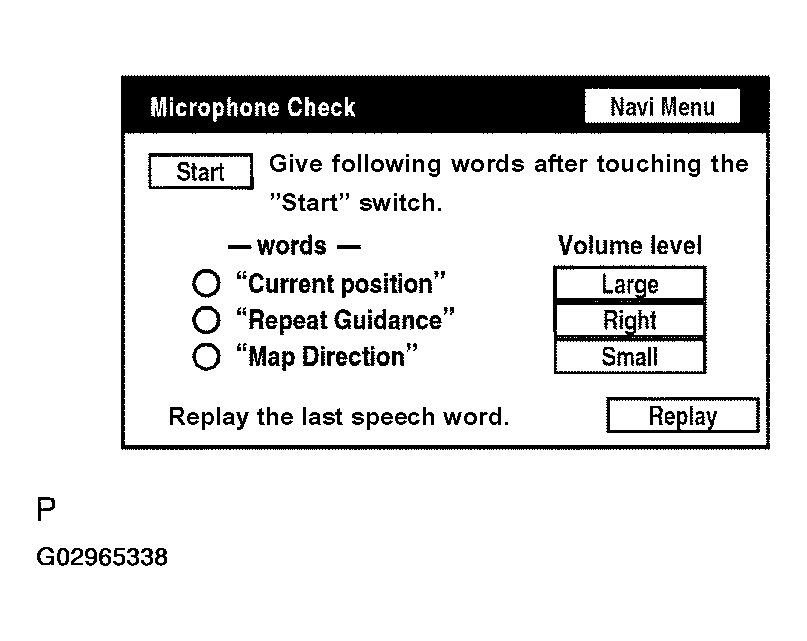

   Fig 3: Identifying Navigation Check Mode Microphone Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
