Multi-Display (CRT Display) Display: Replacement

HINT:

See LOCATION

1. REMOVE CONSOLE UPPER PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
2. REMOVE CONSOLE UPPER PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH (SEE  REPLACEMENT  )
5. REMOVE INTEGRATION CONTROL & PANEL ASSY (SEE  REPLACEMENT  )
6. REMOVE RADIO BRACKET NO.1 (SEE  REPLACEMENT   )
7. REMOVE RADIO BRACKET NO.2 (SEE  REPLACEMENT   )
8. REMOVE MULTI-DISPLAY (CRT DISPLAY) DISPLAY

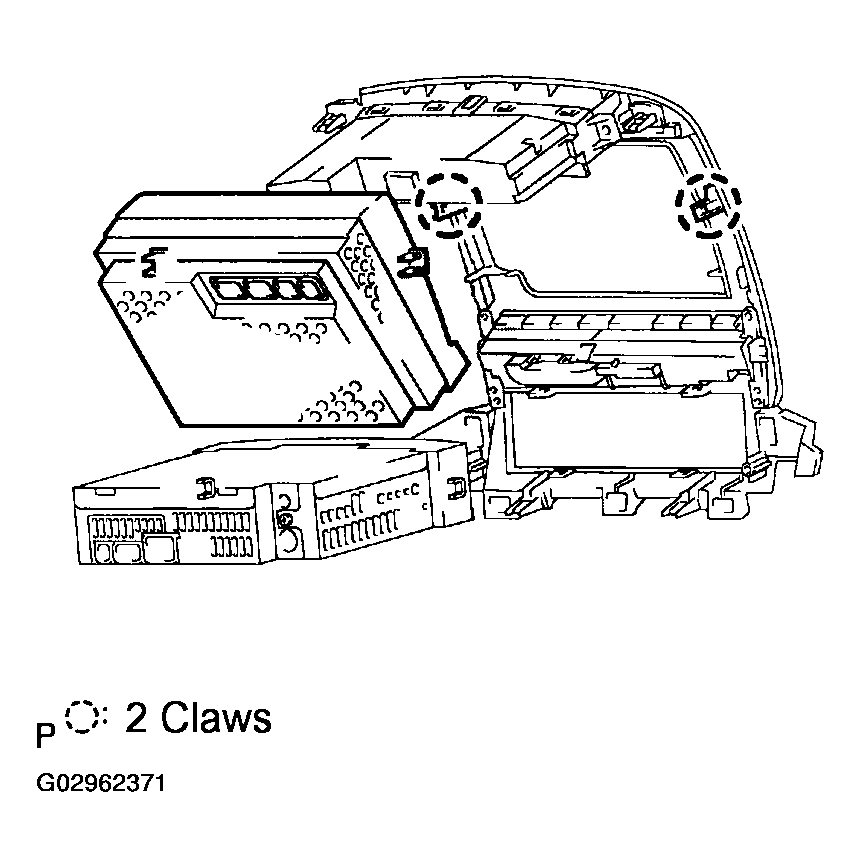

   1. Release the 2 claws and remove the multi-display.
   Fig 1: Releasing Claws & Removing Multi-Display
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
