Terminals Of Ecu
- TELEVISION CAMERA ASSY:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TELEVISION CAMERA ASSYSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified value CV- (T17-1) - CGND (T17-3) W - BR Display signal (-) Always Below 1.0 ohms CV+ (T17-2) - CGND (T17-3) B - BR Display signal (+) IG switch ON, shift lever R position Signal waveform 1 CGND (T17-3) - Body ground BR - Body ground Power ground Always Below 1.0 ohms CB+ (T17-4) - CGND (T17-3) W - BR Power source IG switch ON, shift lever R position 6 V - TELEVISION CAMERA ECU:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TELEVISION CAMERA ECUSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified value +B (T18-1) - GND (T18-6) W-R - W-B Battery supply Always 10 to 14 V IG (T18-2) - GND (T18-6) B-R - W-B IG signal input IG switch ON 10 to 14 V ACC (T18-3) - GND (T18-6) GR - W-B ACC signal input IG switch ON or ACC 10 to 14 V GND (T18-6) - Body ground W-B - Body ground Power ground Always Below 1.0 ohms REV (T18-11) - GND (T18-6) R-B - W-B Reverse signal input IG switch ON, shift lever R position 10 to 14 V BCTY (T18-23) - Body ground R-L - Body ground Back door courtesy switch signal input Back door is opened. 10 to 14 V VG (T19-7) - GND (T18-6) BR - W-B Display signal output ground (Shielded) Always Below 1.0 ohms R (T19-8) - GND (T18-6) B - W-B Display signal output (Red) While displaying map or back monitor Signal waveform 2 G (T19-9) - GND (T18-6) W - W-B Display signal output (Green) While displaying map or back monitor Signal waveform 2 B (T19-10) - GND (T18-6) R - W-B Display signal output (Blue) While displaying map or back monitor Signal waveform 2 B1 (T19-13) - GND (T18-6) R - W-B Display signal input (Blue) While displaying map Signal waveform 2 G1 (T19-14) - GND (T18-6) W - W-B Display signal input (Green) While displaying map Signal waveform 2 R1 (T19-15) - GND (T18-6) B - W-B Display signal input (Red) While displaying map Signal waveform 2 VG1 (T19-16) - GND (T18-6) BR - W-B Display signal input ground (Shielded) Always Below 1.0 ohms TX+ (T19-17) P AVC-LAN control bus See "Service check mode" - TX- (T19-18) L AVC-LAN control bus See "Service check mode" - SYNC (T19-19) - GND (T18-6) G - W-B Synchronized signal output While displaying map or back monitor Signal waveform 3 VR (T19-20) - GND (T18-6) Y - W-B Display signal output ground Always Below 1.0 ohms VR1 (T19-21) - GND (T18-6) Y - W-B Display signal input ground Always Below 1.0 ohms SYN1 (T19-22) - GND (T18-6) G - W-B Synchronized signal input While displaying map Signal waveform 3 TX1- (T19-23) L AVC-LAN control bus See "Service check mode" - TX1+ (T19-24) P AVC-LAN control bus See "Service check mode" - CGND (T20-21) GND (T18-6) BR - W-B Back camera ground Always Below 1.0 ohms CB+ (T20-22) - GND (T18-6) R - W-B Power source to back camera IG switch ON, shift lever R position 6 V CV - (T20-29) - GND (T18-6) W - W-B Back camera ground (Shielded) Always Below 1.0 ohms CV+ (T20-30) - GND (T18-6) B - W-B Display signal of back camera input IG switch ON, shift lever R position Signal waveform 1 - Reference:
Oscilloscope waveform

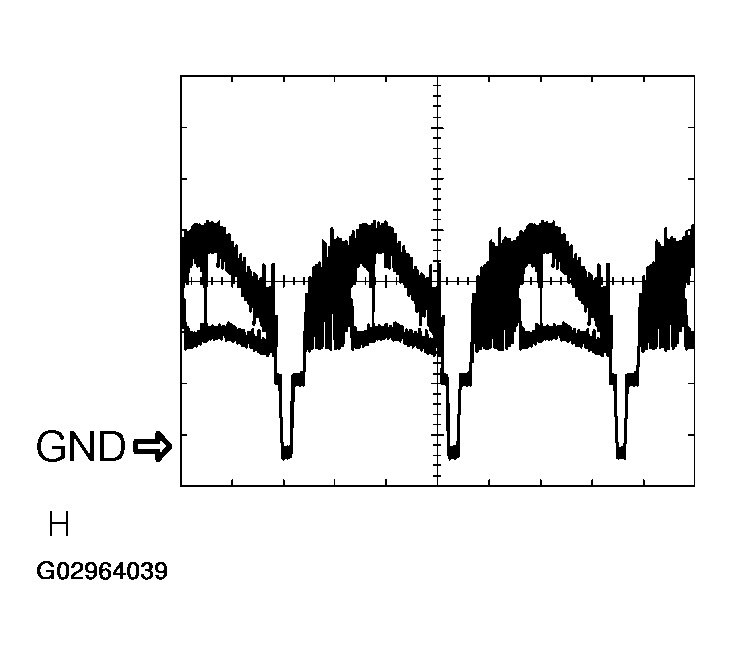

- Waveform 1WAVEFORM 1

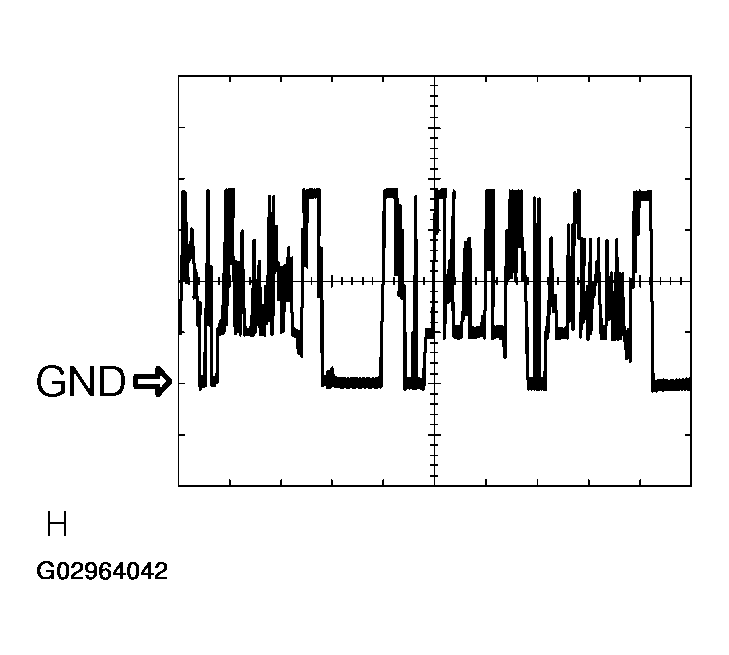

Item Content Measure terminal CV+ - GND Measure set 0.2 V/DIV, 0.2 nS/DIV Condition Ignition switch: ON, Shift lever: R position - Waveform 2WAVEFORM 2
Item Content Terminal R, G, B, R1, G1, B1.-GND Measure set 200 mV/DIV, 10 nS/DIV Condition Image is being displayed (Parking assist system or navigation system). - Waveform 3WAVEFORM 3

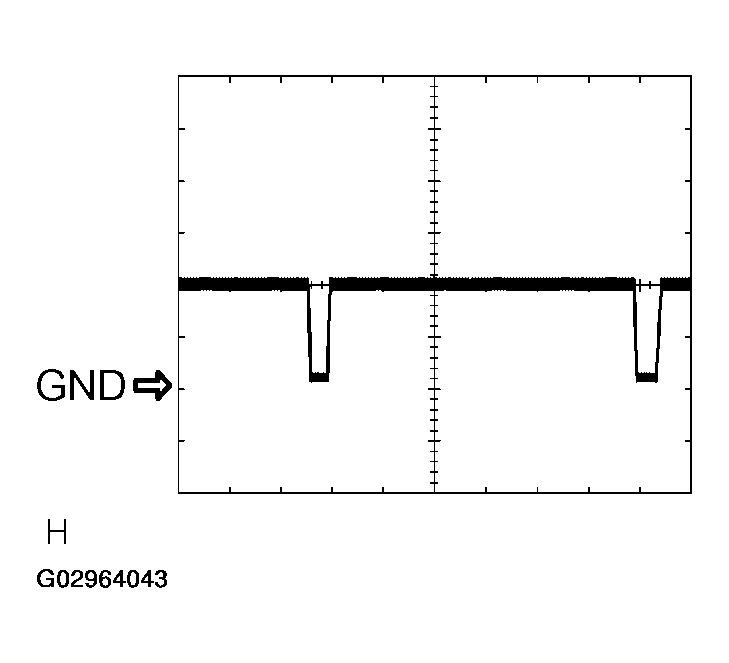

Item Content Terminal SYNC, SYN1 - GND Measure set 500 mV/DIV, 10 nS/DIV Condition Image is being displayed (Parking assist system or navigation system).
- Waveform 1
- Reference:
