Home >> Lexus >> 2005 >> GX 470 >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Back Monitor System - Diagnostics >> Location

Back Monitor System - Diagnostics: Location

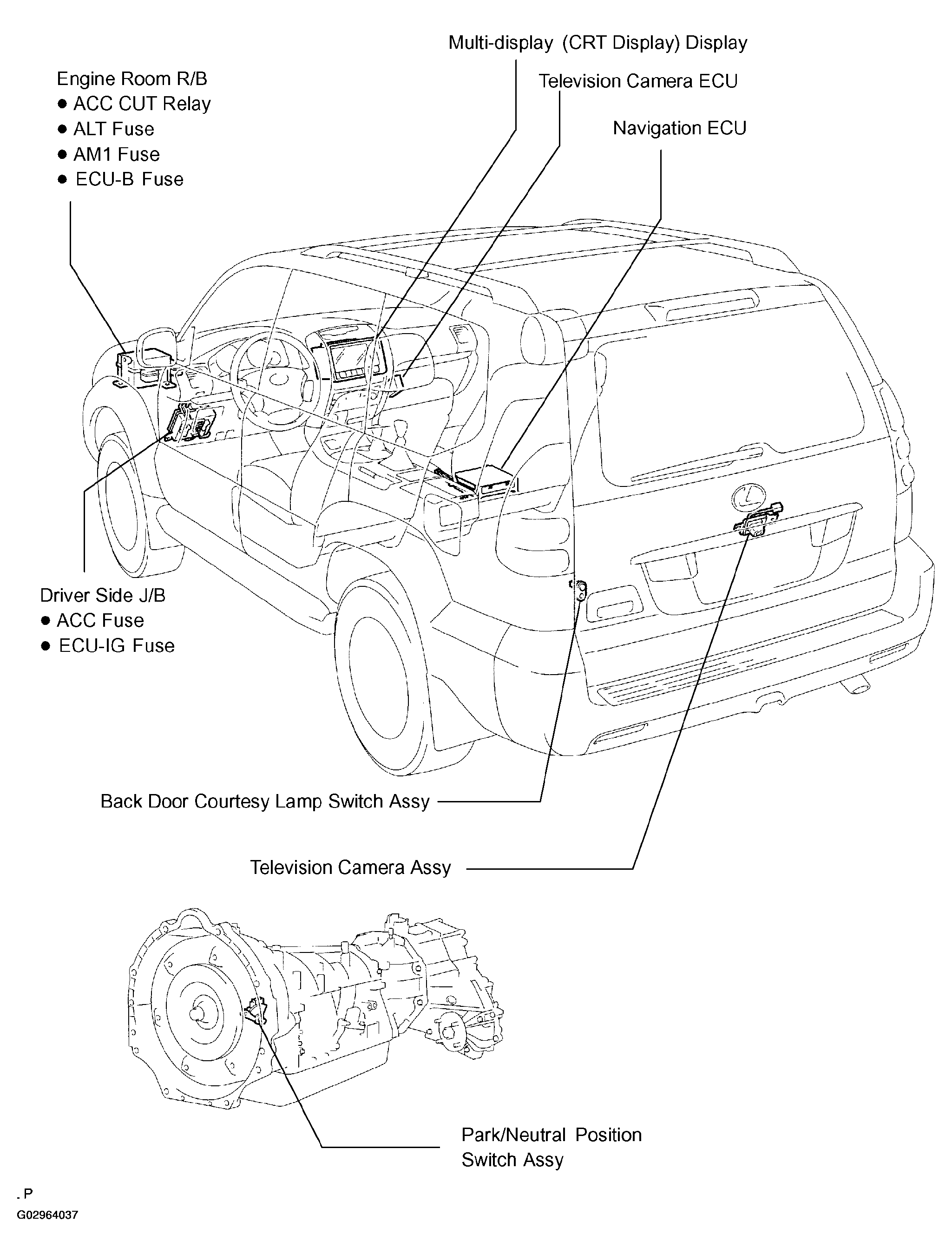

Fig 1: Locating Back Monitor System Components And Replacements

G02964037

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
