Steering Column ASSY: Components

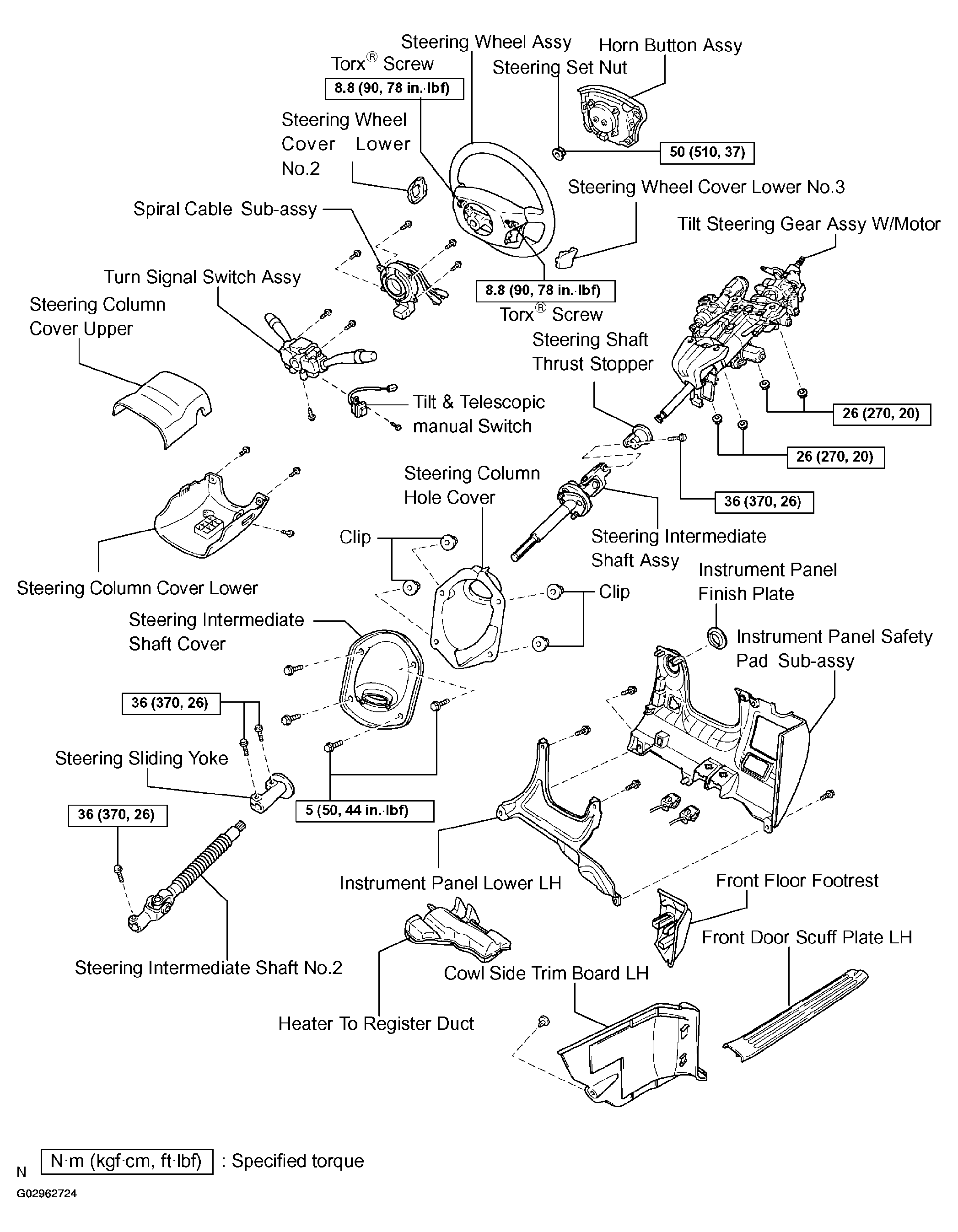

Fig 1: Identifying Steering Column Assy Components & Replacements (1 Of 2)
G02962724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

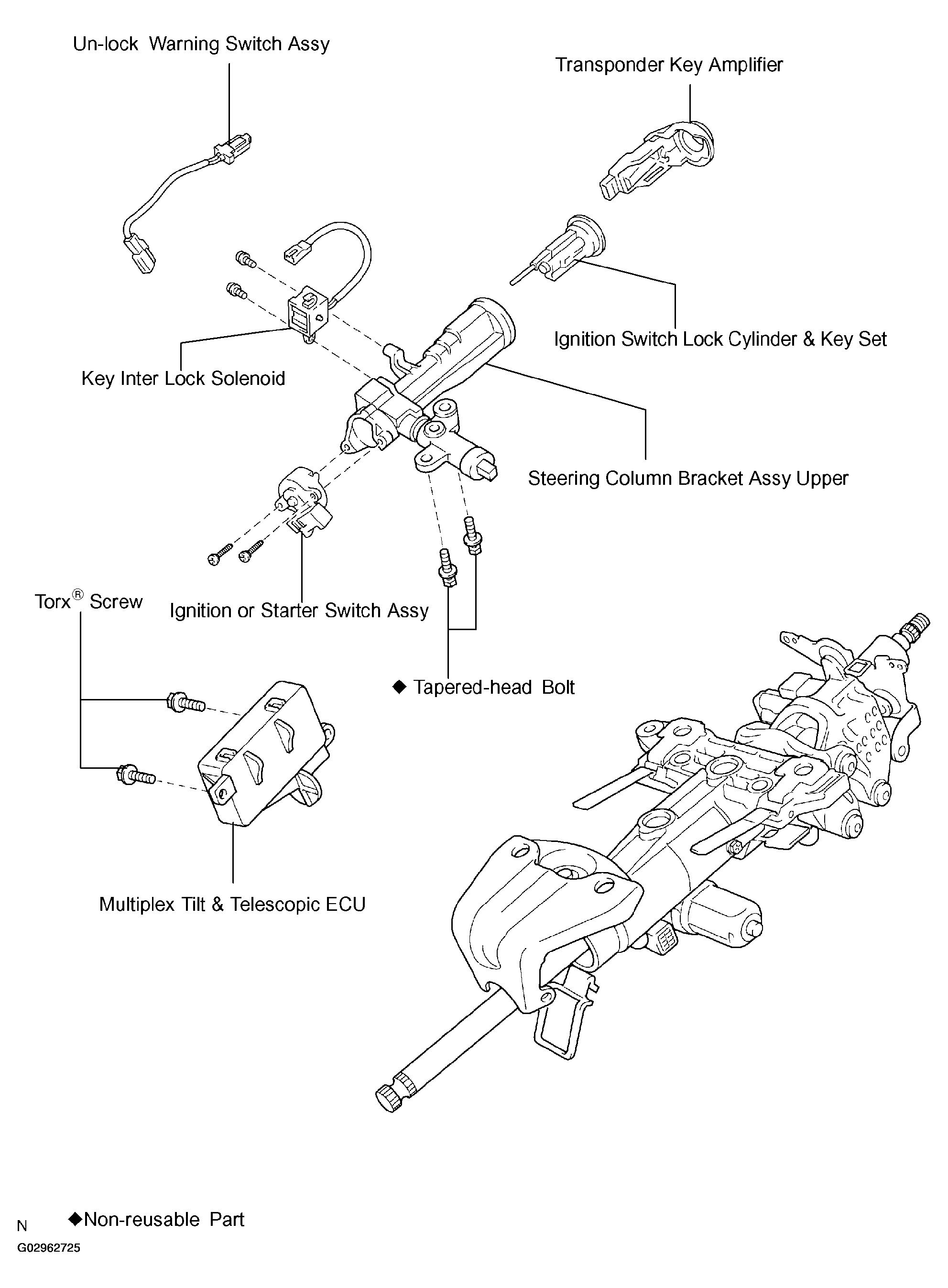

Fig 2: Identifying Steering Column Assy Components & Replacements (2 Of 2)
G02962725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
