Combination Meter ASSY: Components

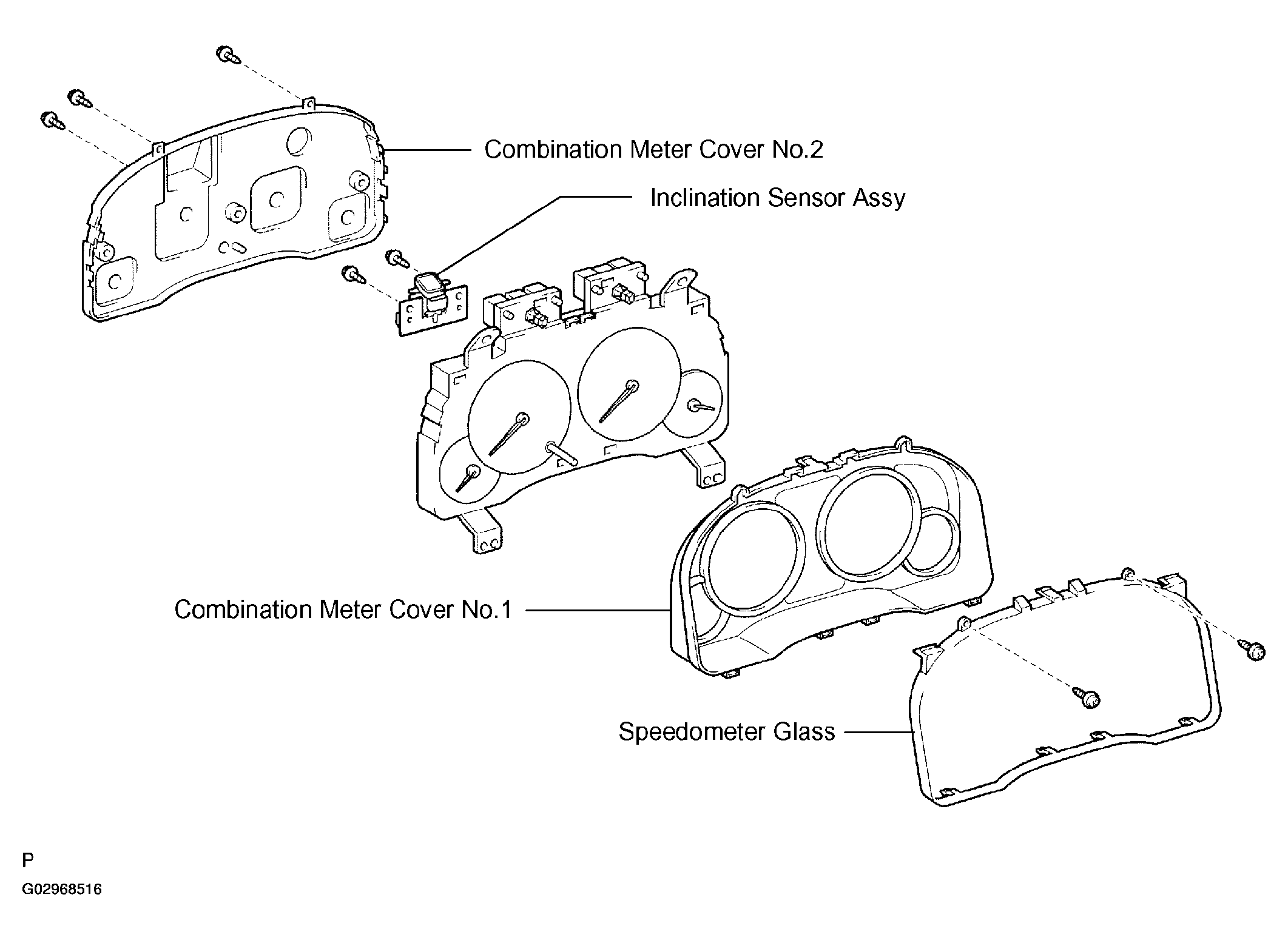

Fig 1: Exploded View Of Combination Meter Assy Components And Replacements

G02968516

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
