Home >> Lexus >> 2005 >> GX 470 >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Windshield/WINDOWGLASS/Mirror >> Quarter Window ASSY LH >> Components

Quarter Window ASSY LH: Components

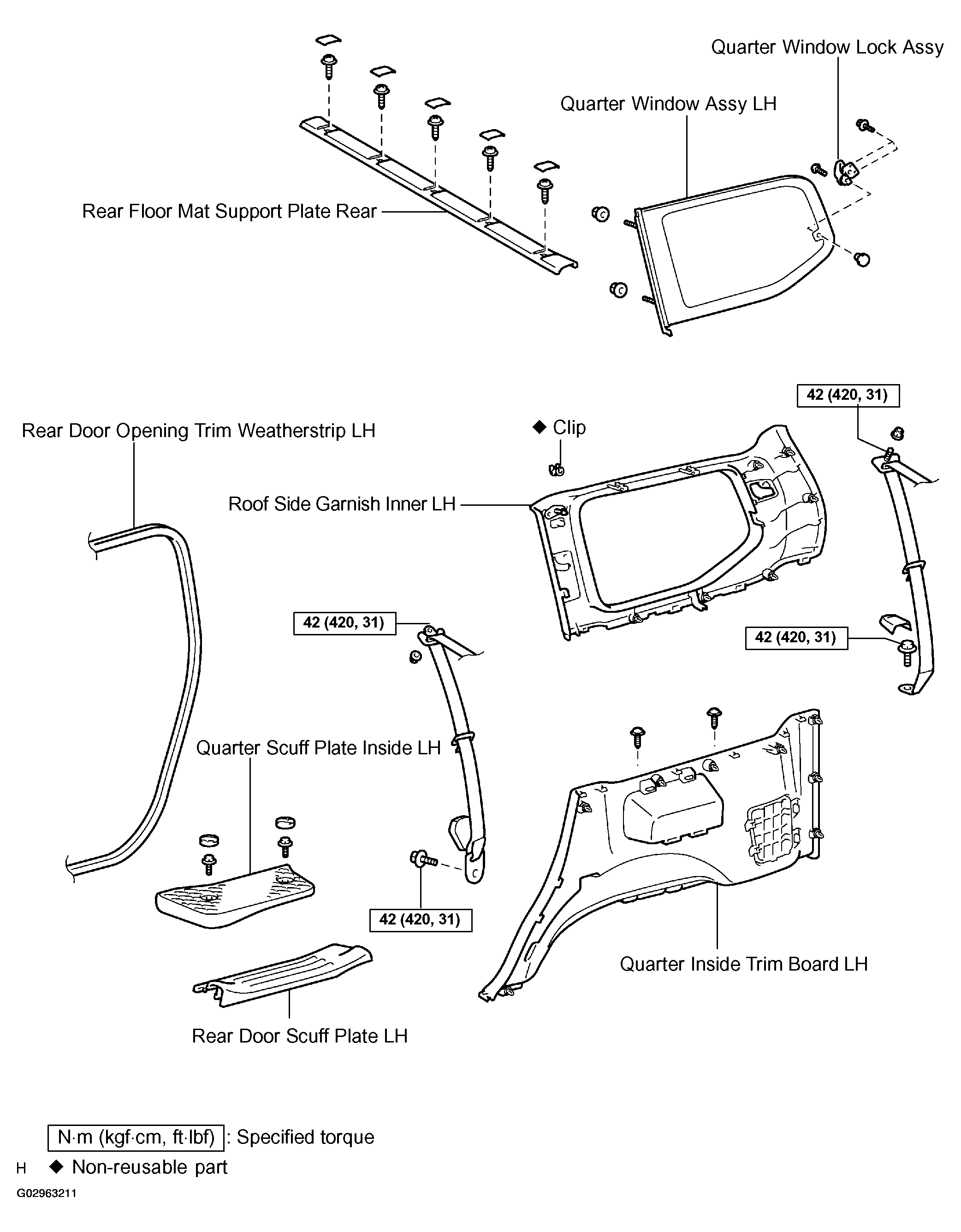

Fig 1: Exploded View Of Quarter Window Assy LH Components

G02963211

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
