Body & Frame: Windows: Preparation: Transfer: Preparation

SST

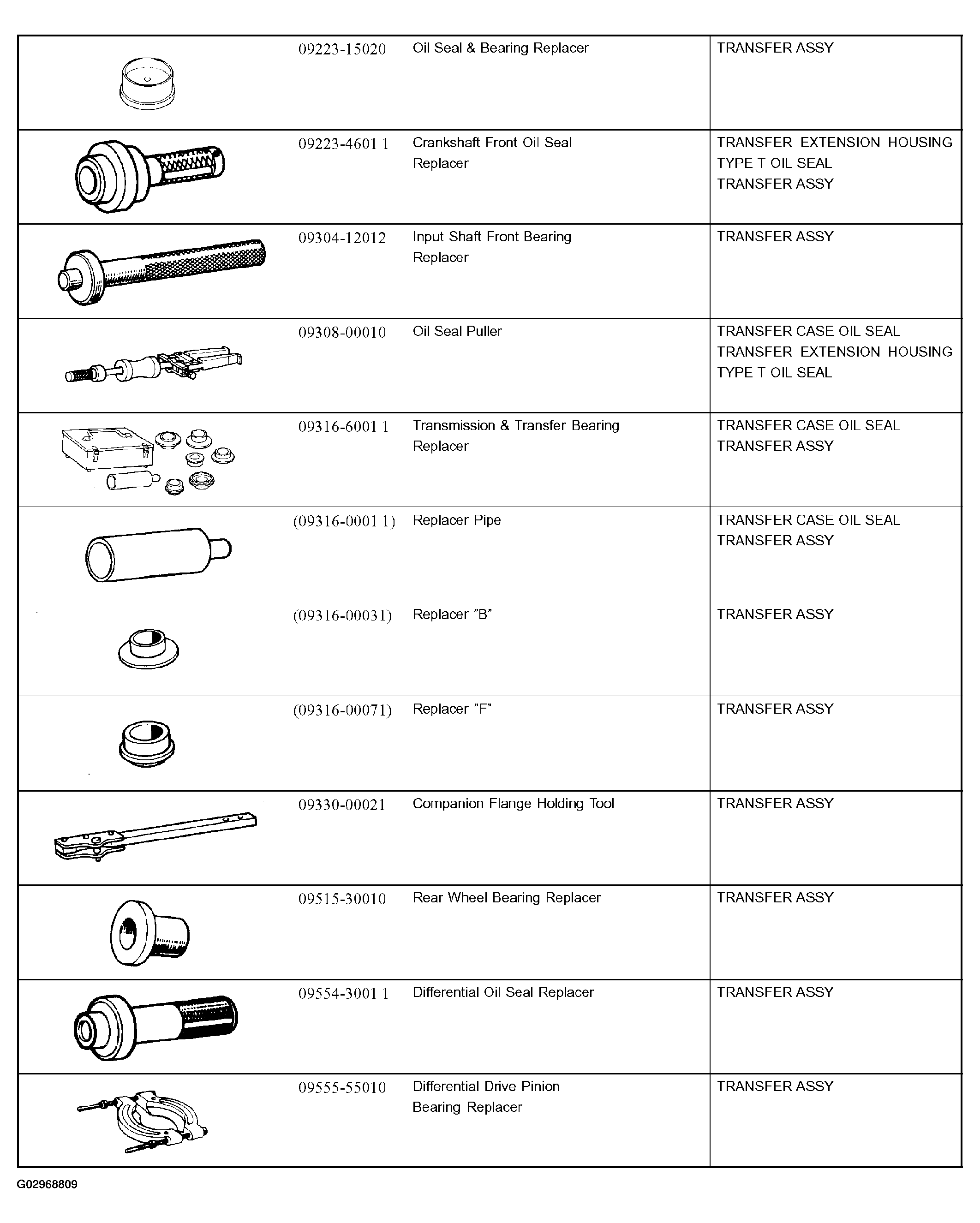

Fig 1: Service Special Tool Table - Transfer (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

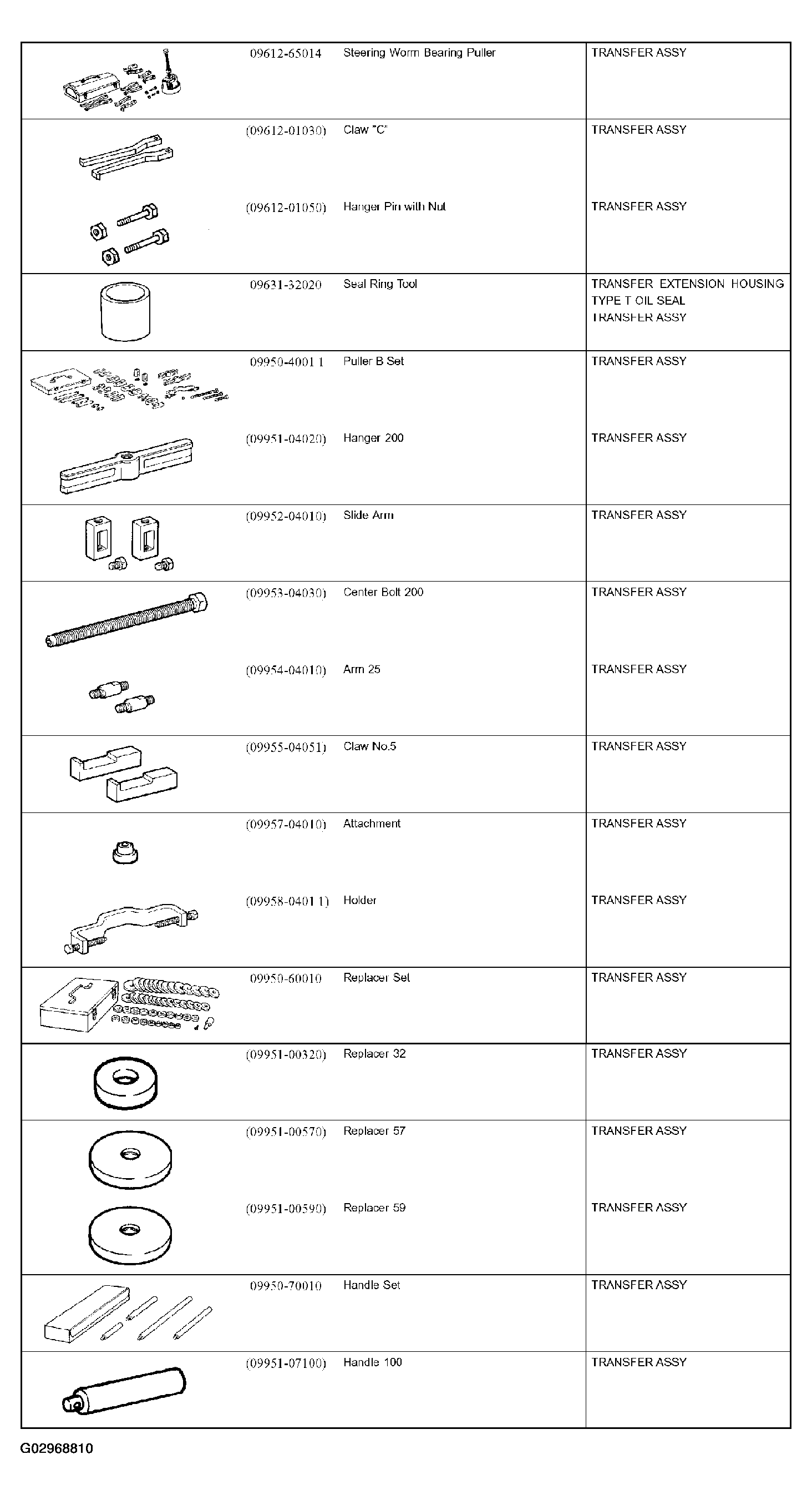

Fig 2: Service Special Tool Table - Transfer (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

TRANSFER EQUIPMENT SPECIFICATION

Dial indicator
Dial indicator with magnetic base
Micrometer
Torque wrench
Plastic hammer
Vernier calipers

Lubricant

LUBRICANT SPECIFICATION

Transfer oil

1.4 liters (1.5 US qts, 1.2 lmp. qts)

API GL-5 SAE 75W-90

SSM (Special Service Materials)

SPECIAL SERVICE MATERIALS SPECIFICATION

08826-00090 "Seal Packing 1281," THREE BOND 1281 or equivalent (FIPG)	TRANSFER ASSY
08833-00080 Adhesive 1344 THREE BOND 1344 LOCTITE 242 or equivalent	TRANSFER ASSY
