Terminals Of ECM

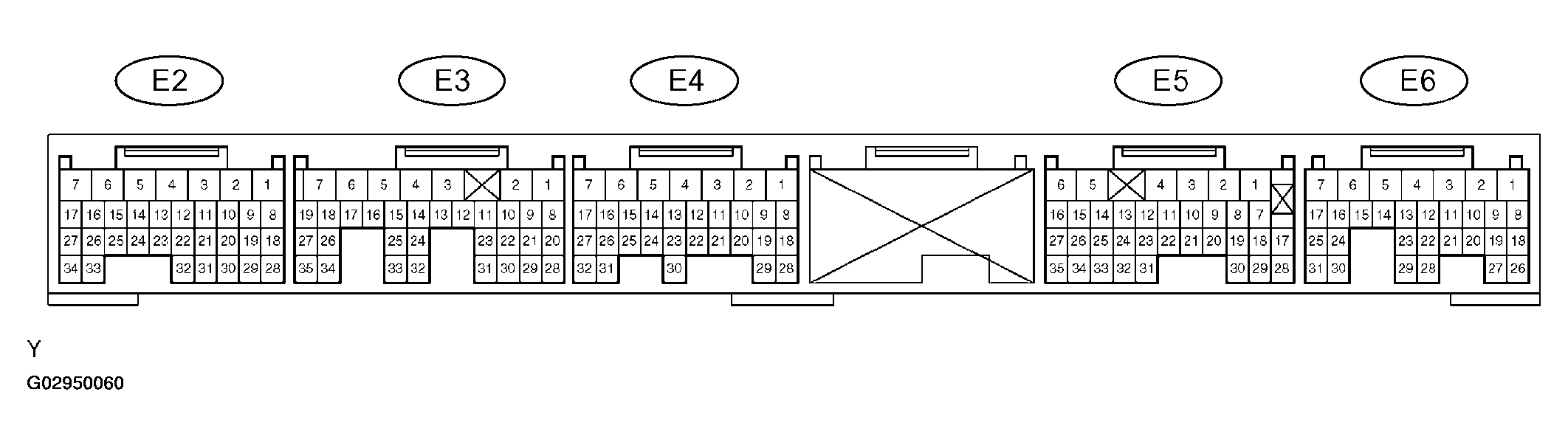

Fig 1: Identifying ECM Connectors E2, E3, E4, E5 & E6

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Each ECM terminals standard normal voltage is shown in the Fig 2 below. In the table, first follow the information under "Condition".

Look under "Symbols (Terminals No.)" for the terminals to be inspected.

The standard normal voltage between the terminals is shown under "STD Voltage".

Use the illustration above as a reference for the ECM terminals.

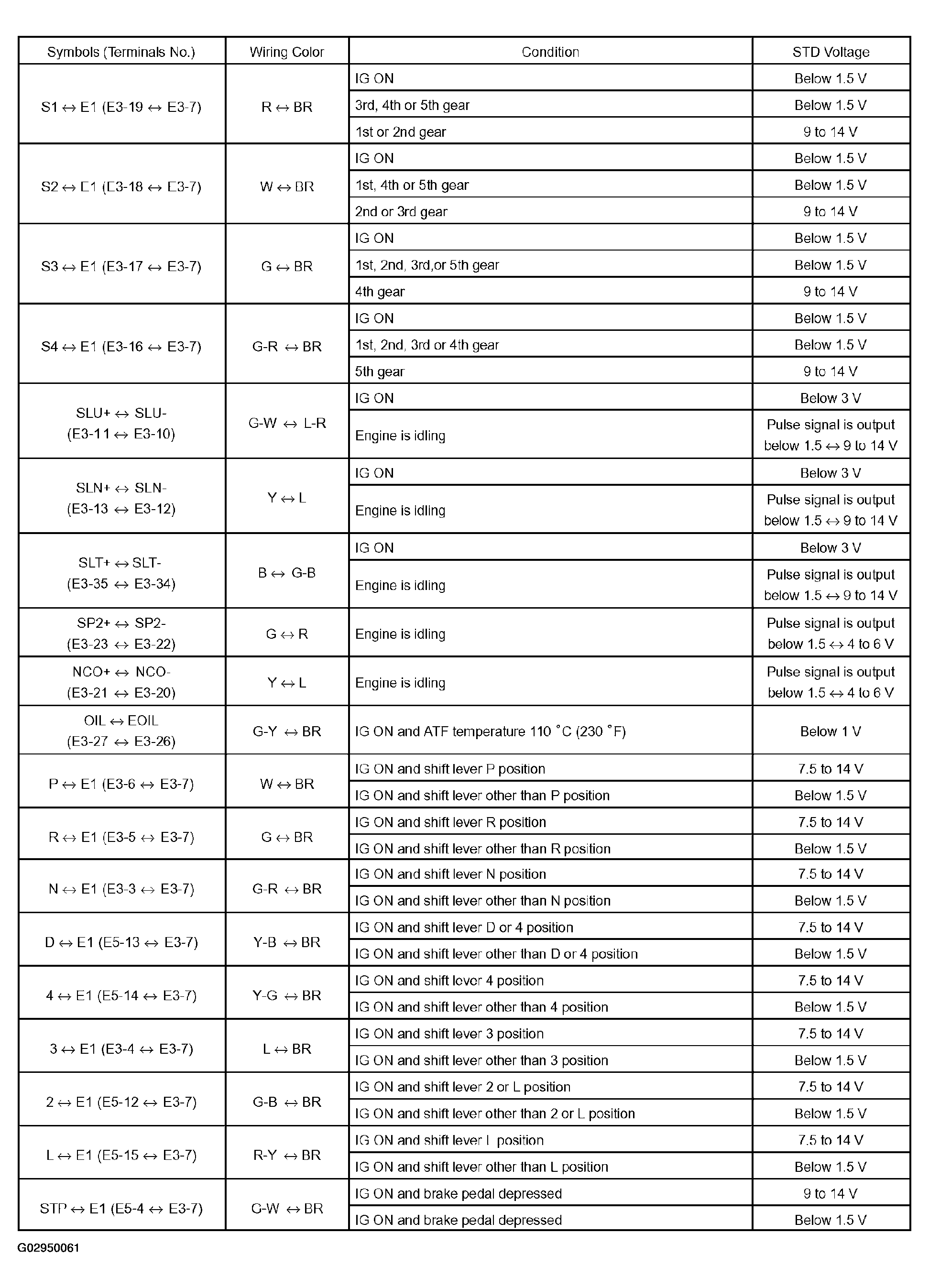

Fig 2: Terminal Specific Conditions Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
