Monitor Strategy

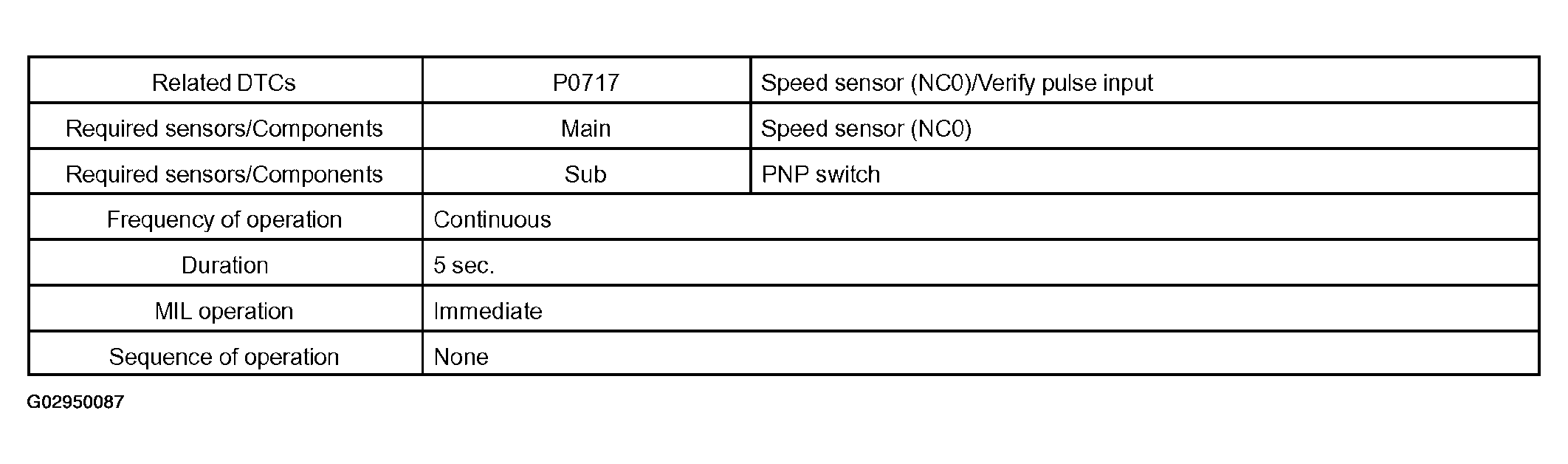

Fig 1: DTC Monitor Strategy Chart - DTC P0717

G02950087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
