Floor Shift Assembly: Removal
- RAISE VEHICLE NOTE: Make sure that the vehicle is securely supported.
- REMOVE FRONT EXHAUST PIPE
3UZ-FE Engine: (See EXHAUST SYSTEM ).
2JZ-GE Engine: (See EXHAUST SYSTEM ).
- REMOVE HEAT INSULATOR
Remove the 6 bolts and heat insulator.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
- DISCONNECT SHIFT CONTROL ROD
3UZ-FE Engine: (See REMOVAL ).
2JZ-GE Engine: (See REMOVAL ).
- LOWER VEHICLE
- REMOVE PARTS Listed Below:
(See appropriate step(s) under REMOVAL ).
- Grove compartment panel assembly
- Box plate
- No.2 under cover
- No.1 safety pad
- No.1 under cover
- Cluster finish panel
- Lower rear console box
- Console box and rear console armrest
- No.3 console box mounting bracket
- Ash receptacle
- No.1 console box duct
- Finish plate
- End pad
- REMOVE SHIFT LEVER ASSEMBLY
- Disconnect the connectors and wire harness from the shift lever assembly.

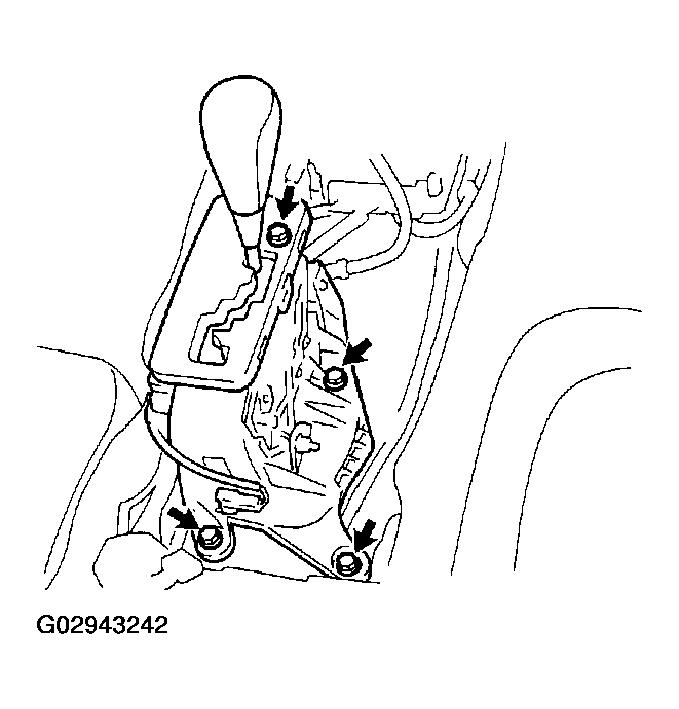

- Remove the 4 bolts and shift lever assembly.
Torque: 8.3 N.m (85 kgf.cm, 74 in.lbf)
