Automatic Transmission System: Operation

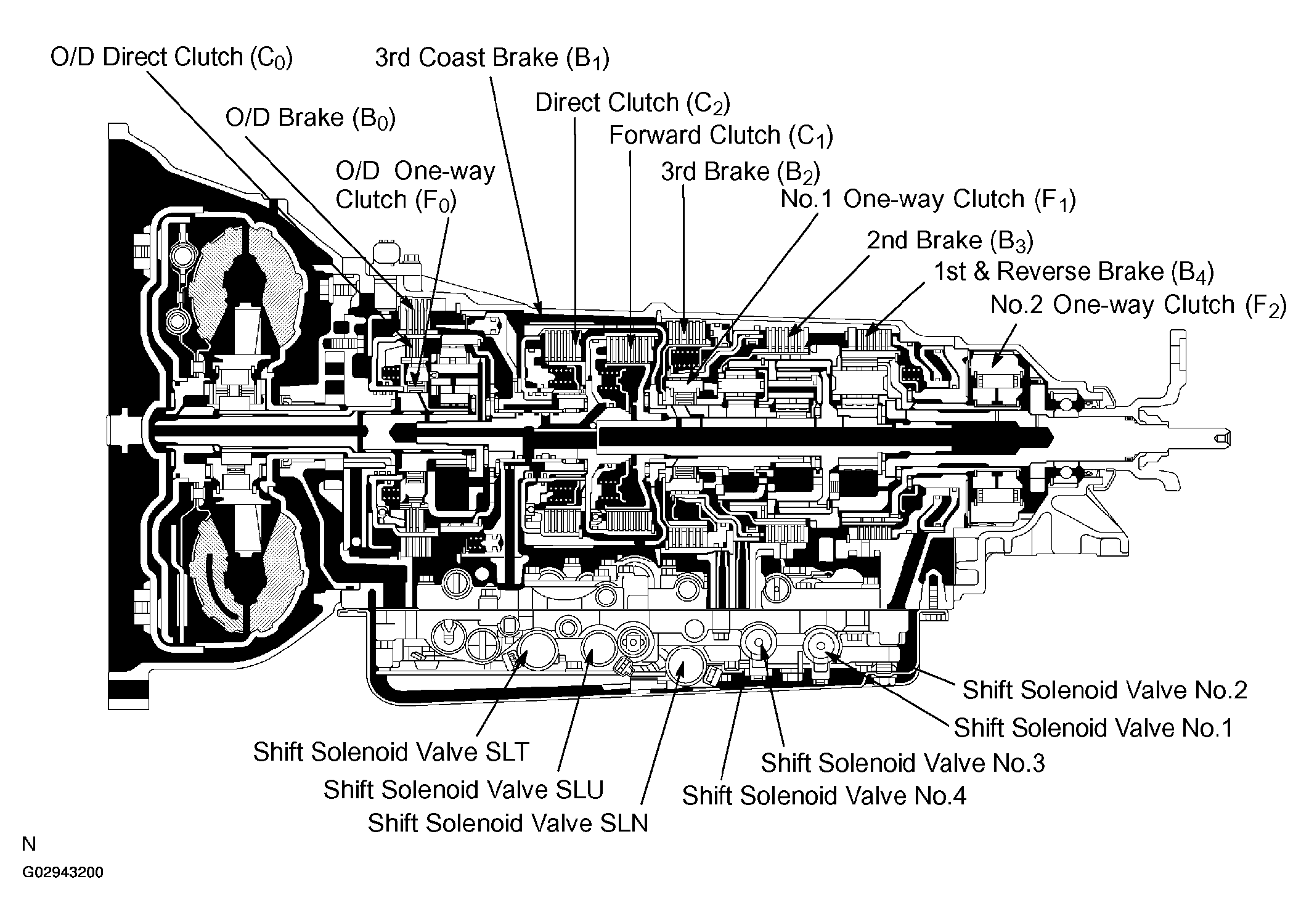

Fig 1: Identifying Automatic Transmission - Sectional View
G02943200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

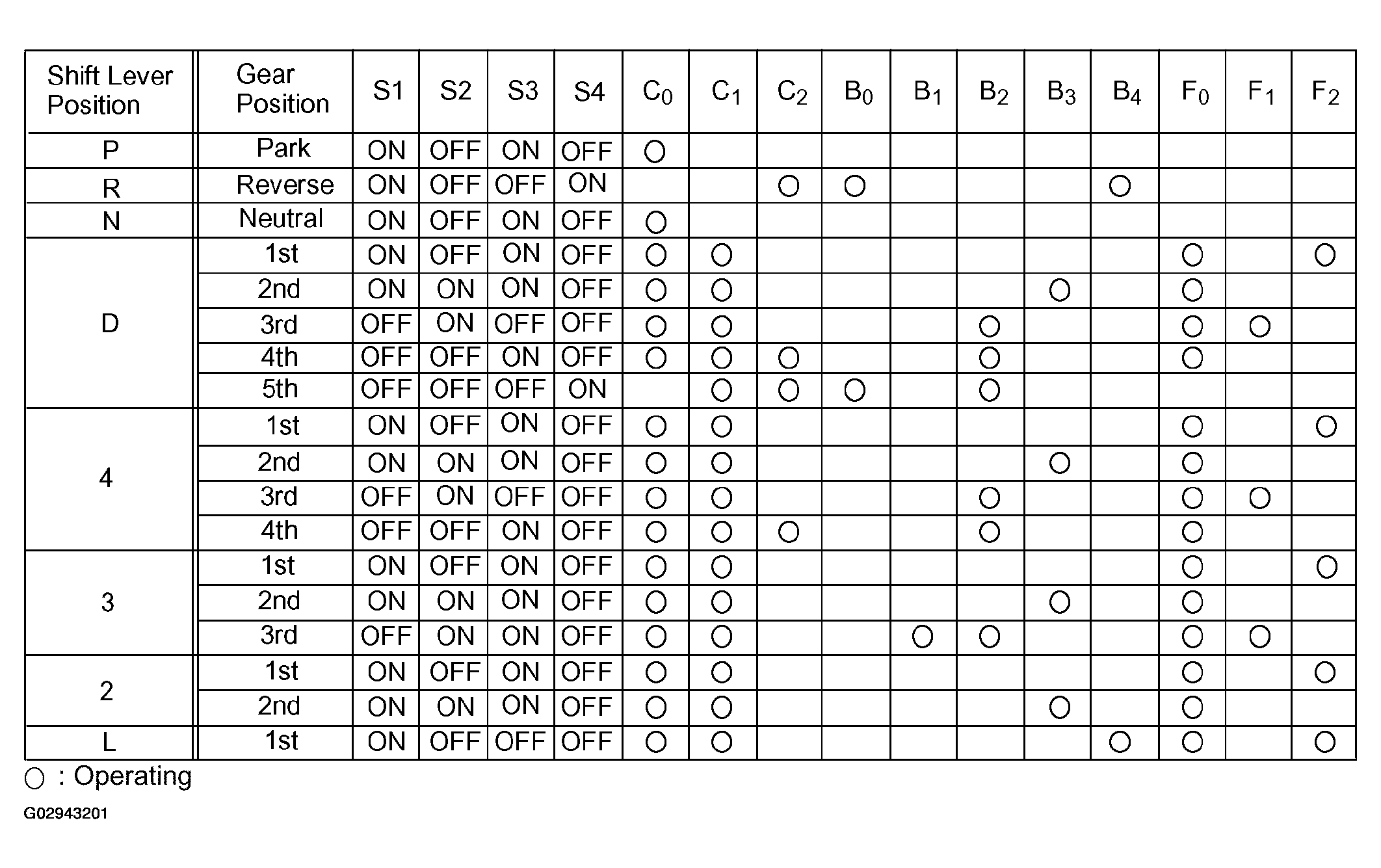

Fig 2: Automatic Transmission System Operation Table
G02943201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
