Repair Procedures

HINT:

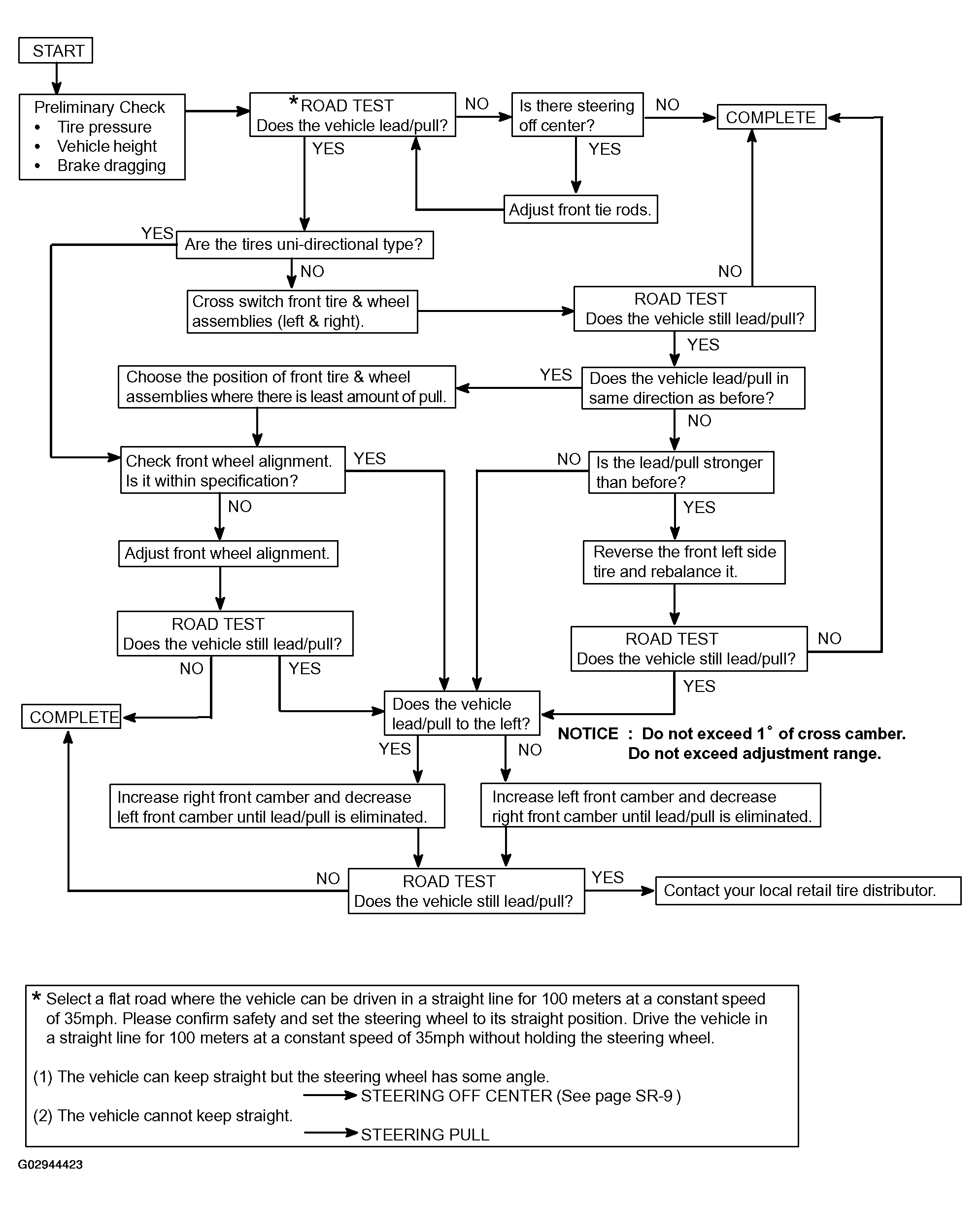

This is a flow chart for vehicle pull.

Fig 1: Vehicle Pull Flow Chart

G02944423

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
