Rear Drive Shaft: Components

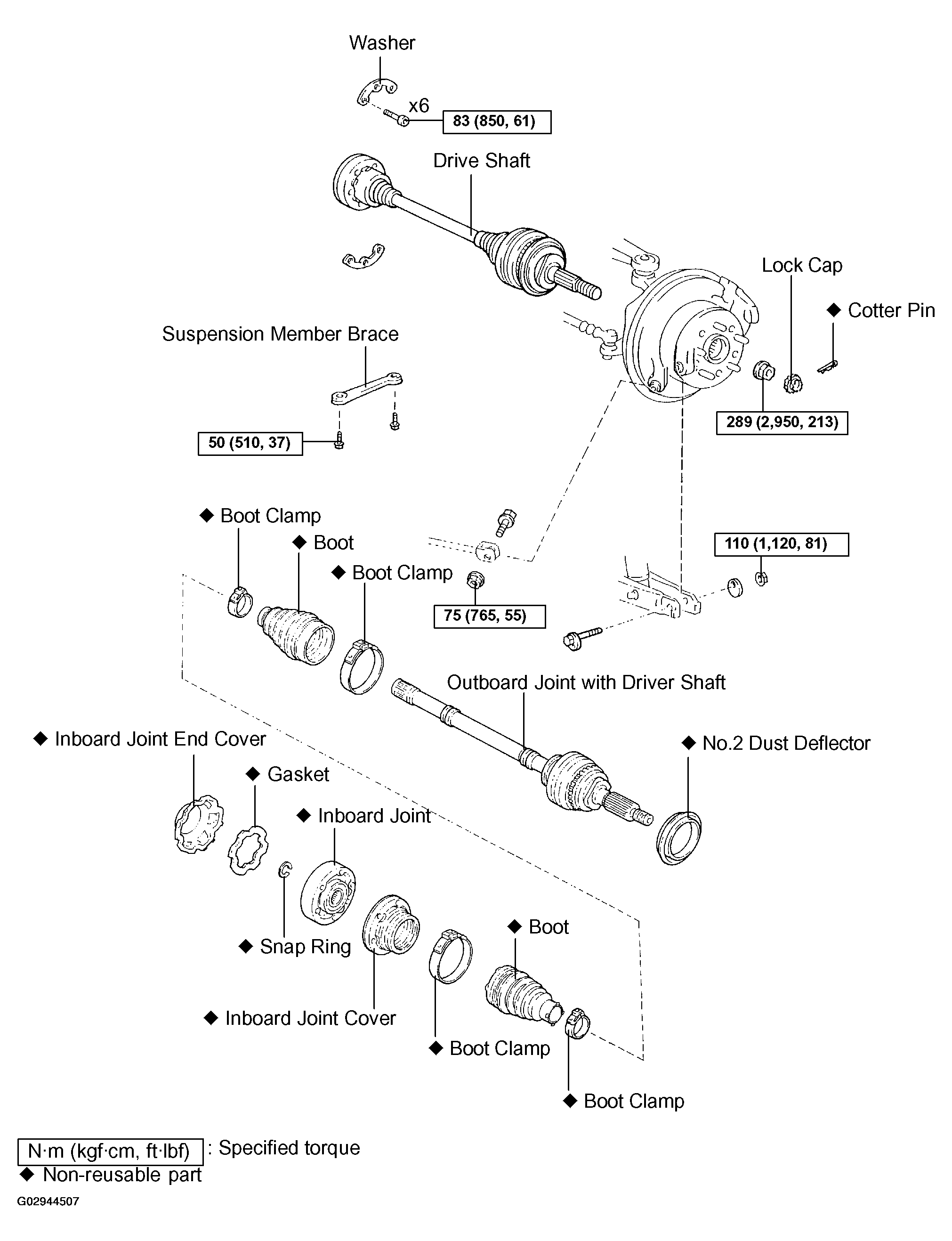

Fig 1: Rear Drive Shaft Replacement Components With Torque Specifications

G02944507

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
