Rear Axle Carrier: Components

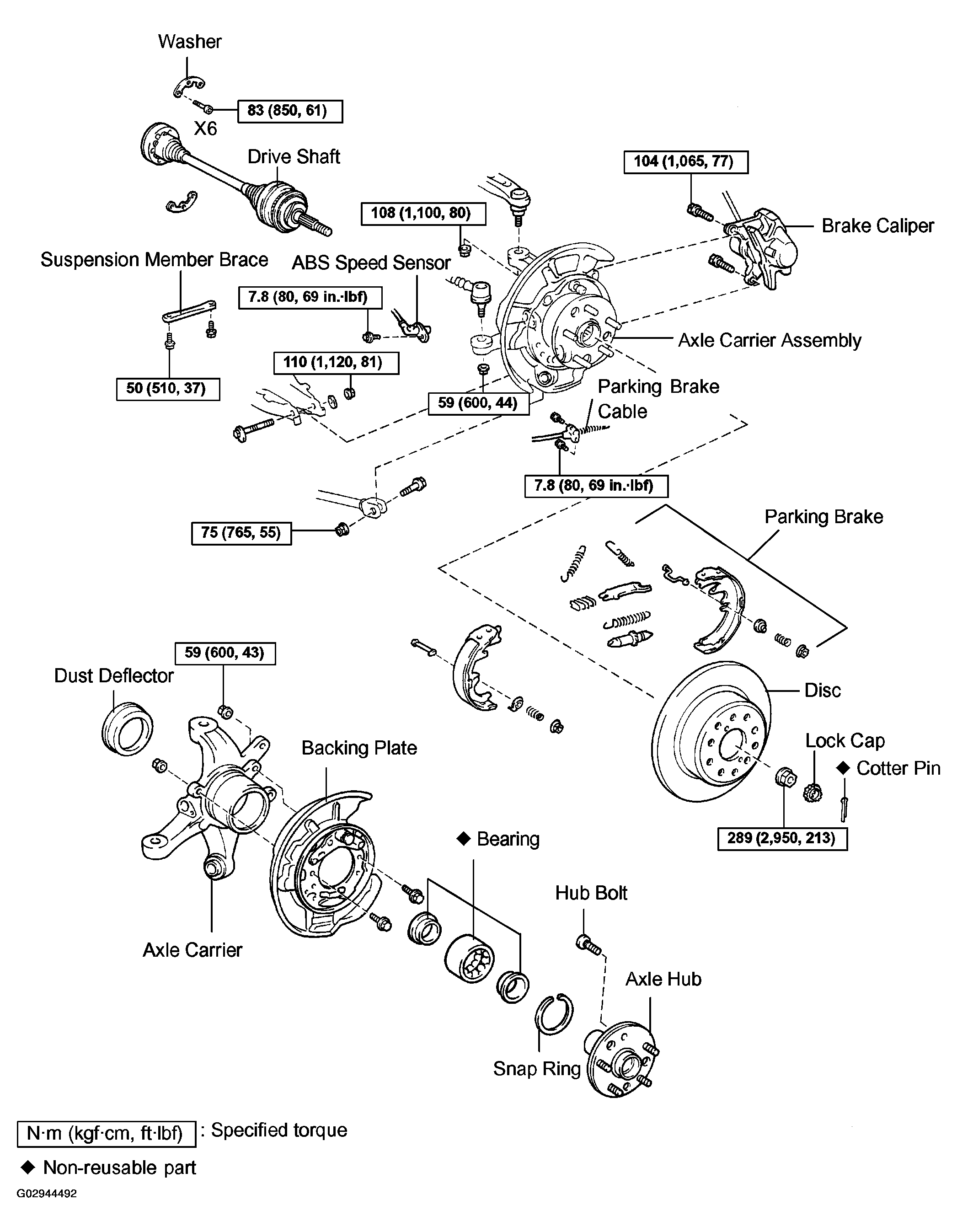

Fig 1: Rear Axle Carrier Replacement Components With Torque Specifications

G02944492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
