Service Data

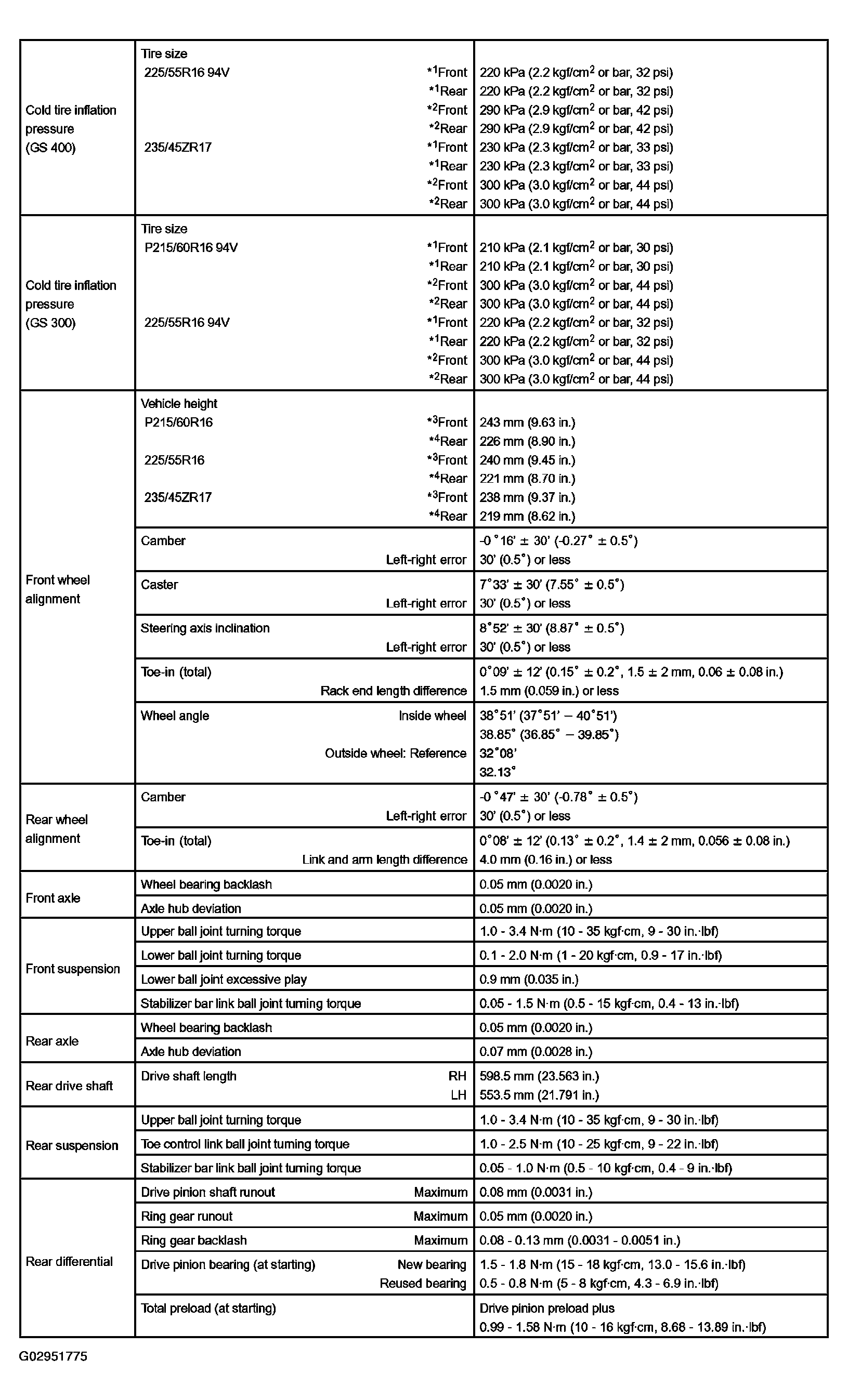

Fig 1: Suspension & Axle Service Specification Chart (1 Of 2)
G02951775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

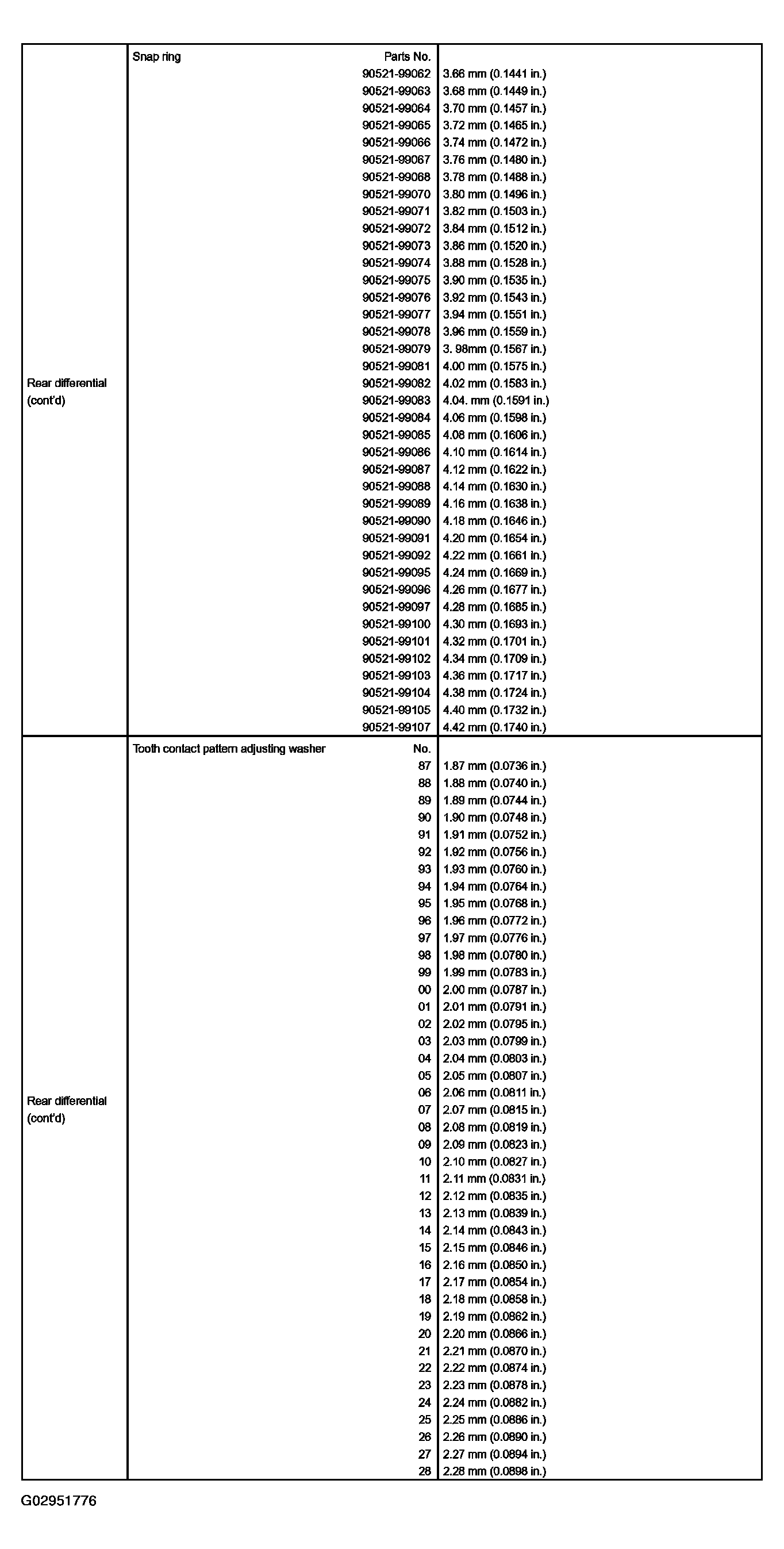

Fig 2: Suspension & Axle Service Specification Chart (2 Of 2)
G02951776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
