Service Data

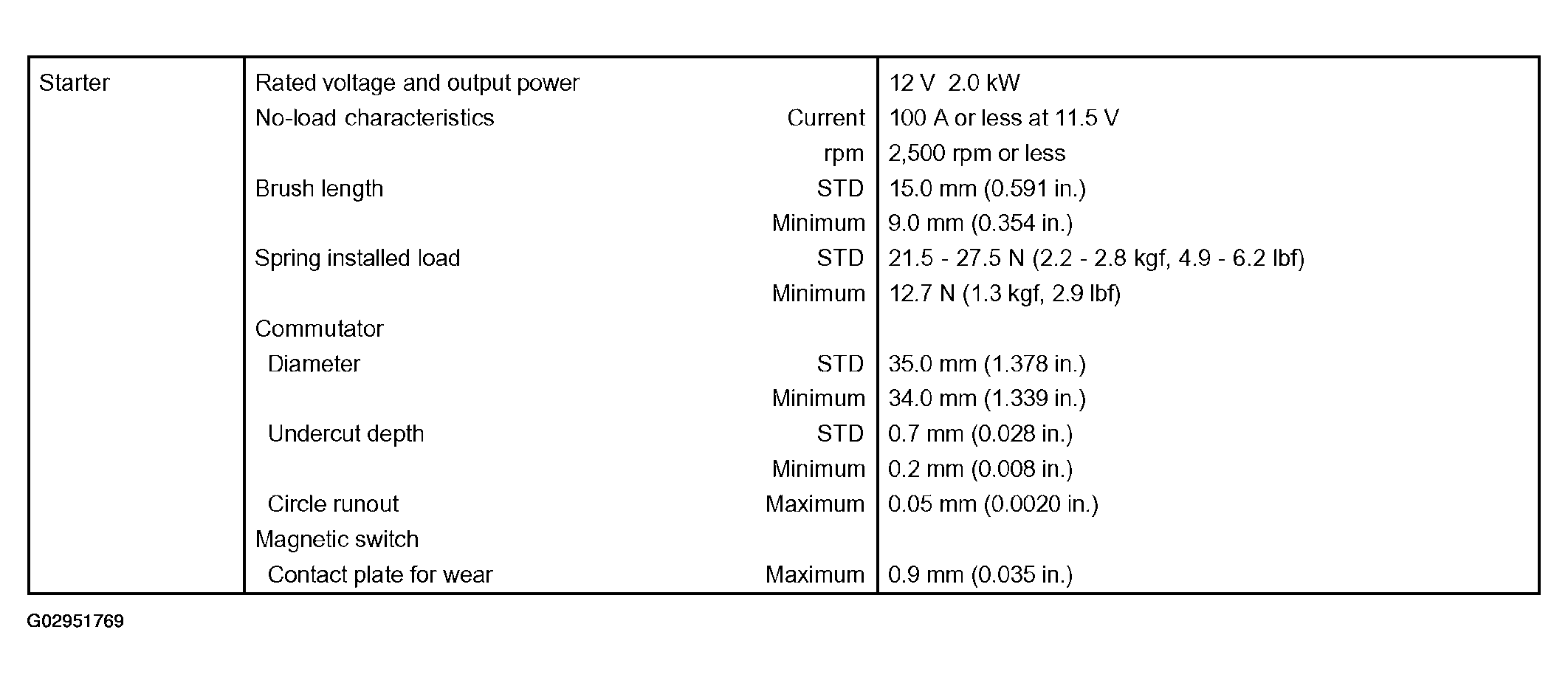

Fig 1: Starting System Service Specification Chart (3UZ-FE)

G02951769

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
