SEPARATE INTERMEDIATE SHAFT AND PROPELLER SHAFT
1. Place matchmarks on the intermediate shaft and propeller shaft.
2. Separate the intermediate shaft and propeller shaft.
3. Remove the dust boot from the propeller shaft.
  HINT:

  If the dust boot is reused, remove it after wrapping vinyl tape around the spline, so it will not be damaged.

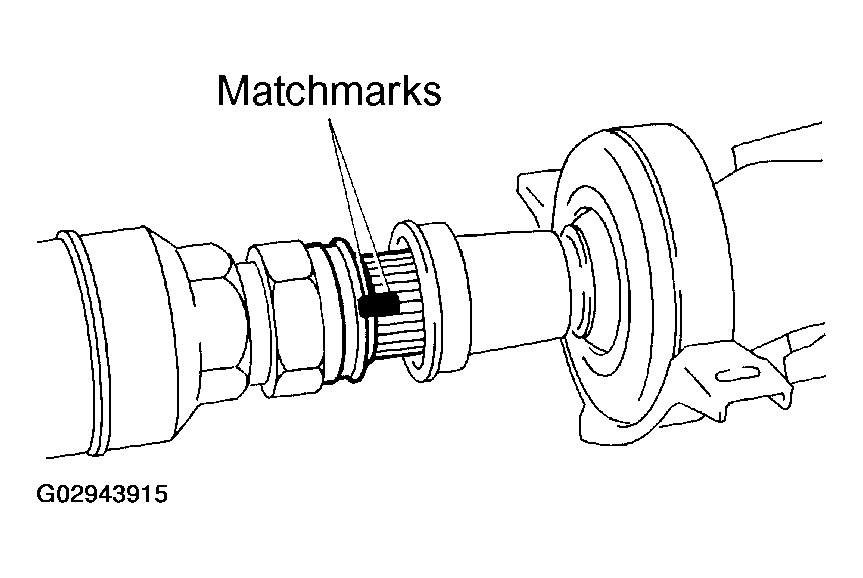

  Fig 1: Placing Match Marks On Inter Mediate Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER SUPPORT BEARING
1. Using a snap ring expander, remove the snap ring.
2. Using SST and a press, remove the center support bearing and dust deflector.
  SST 09950-00020

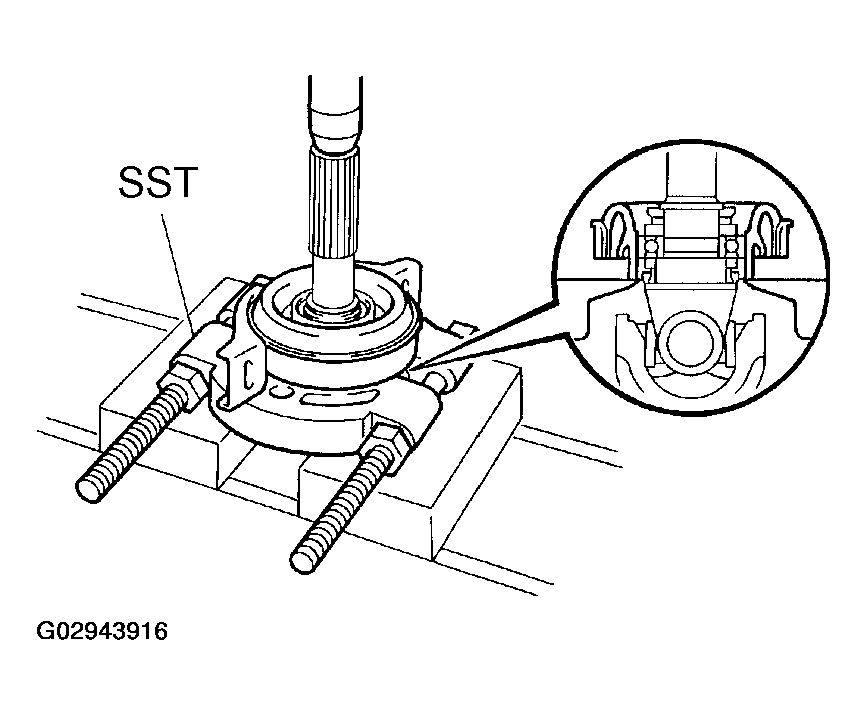

  Fig 2: Removing Snap Ring Using Ring Expander
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT INTERMEDIATE SHAFT AND PROPELLER SHAFT RUNOUT
Using a dial indicator, check the run out of the shafts.

Maximum runout: 0.8 mm (0.031 in.)

If the runout exceeds the maximum, replace the propeller shaft assembly.

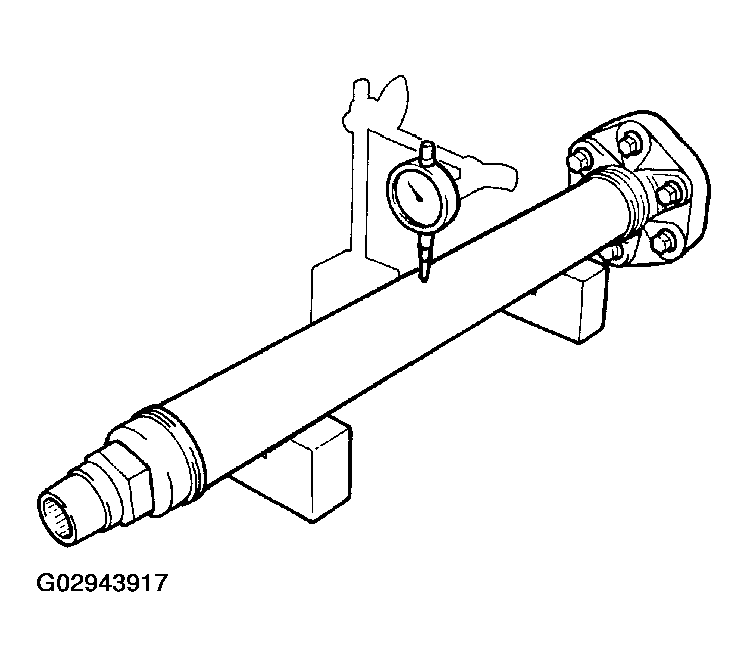

Fig 3: Checking Round Out Shafts With Dial Indicator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SPIDER BEARING
1. Check if the spider bearing rotates smoothly.
2. Check if there is any play in the spider bearing.
  If necessary, replace the propeller shaft.

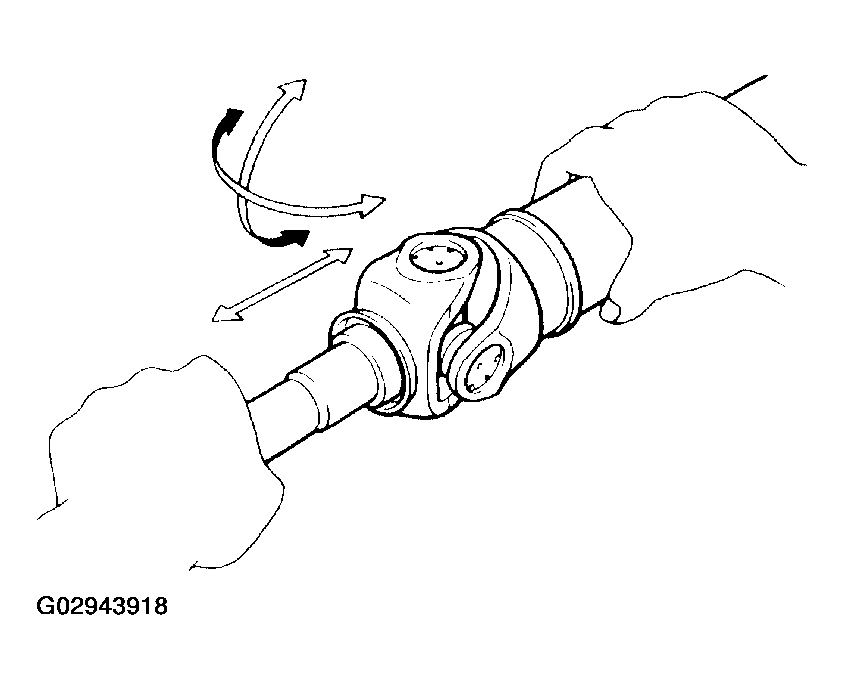

  Fig 4: Checking Spider Bearing Condition
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER SUPPORT BEARING
NOTE: Be careful not to grip the propeller shaft tube too tightly in a vise as this will cause deformation.

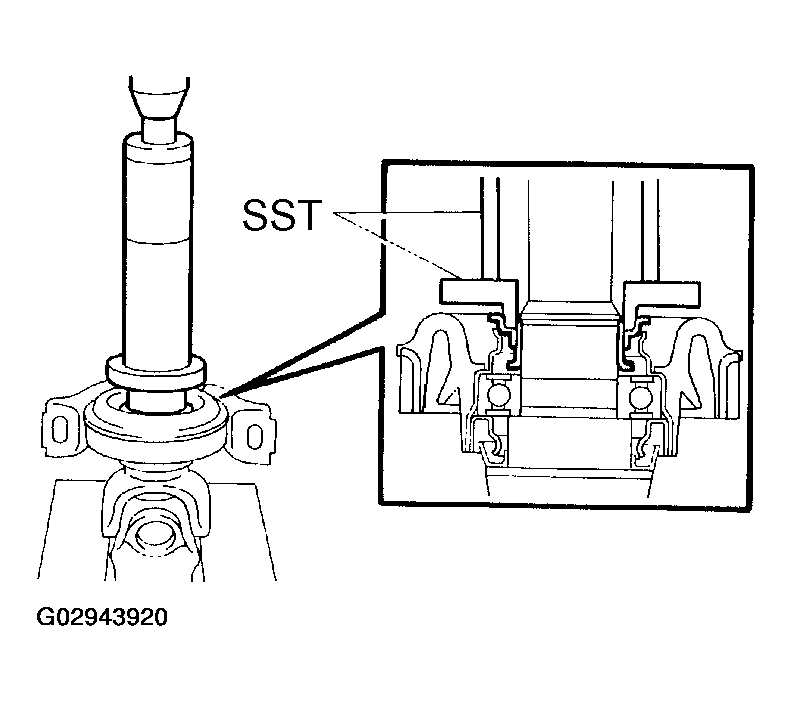

Fig 5: Installing Center Support Bearing Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using SST and a press, install the center support bearing.
  SST 09330-50010

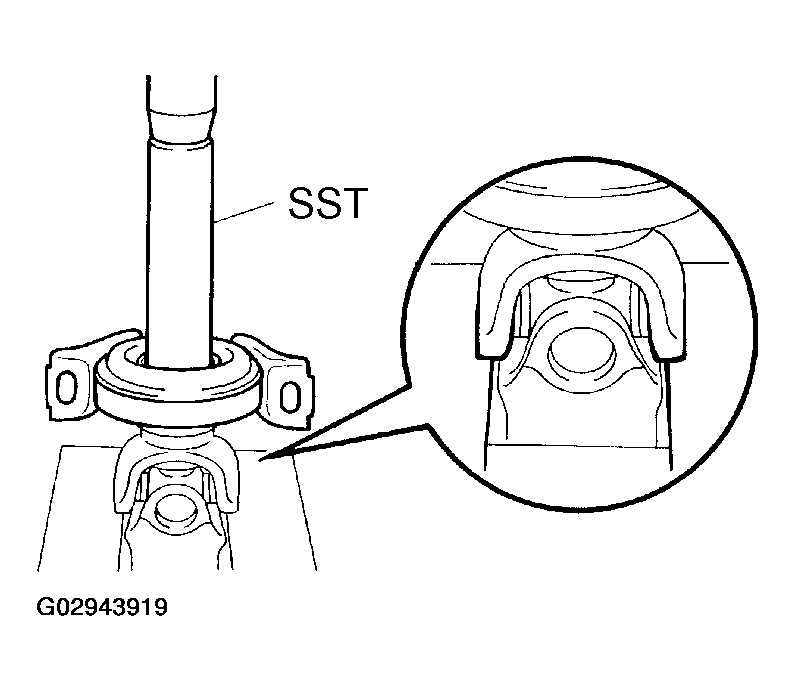

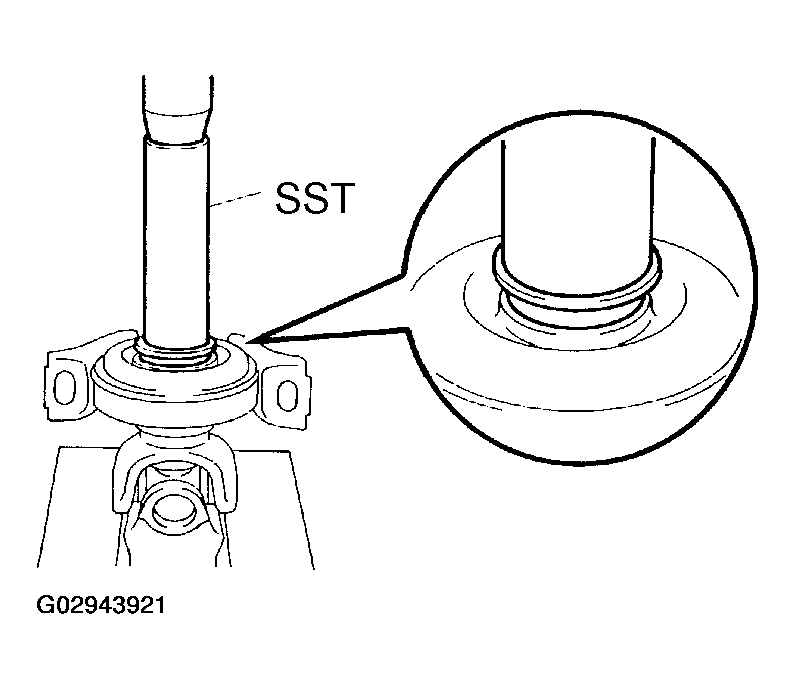

  Fig 6: Pressing On Center Support Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, insert a new dust deflector until it almost touches the rubber of the center support bearing.
  SST 09608-00071, 09608-06041
3. Using SST and a press, install a new dust deflector.
  SST 09330-50010
4. Using a snap ring expander, install a new snap ring.

  Fig 7: Installing New Snap Ring Using Snap Ring Expander
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ASSEMBLE INTERMEDIATE SHAFT AND PROPELLER SHAFT
1. Install the dust boot.
  NOTE: Assemble after wrapping vinyl tape around the spline so it will not damage the boot.

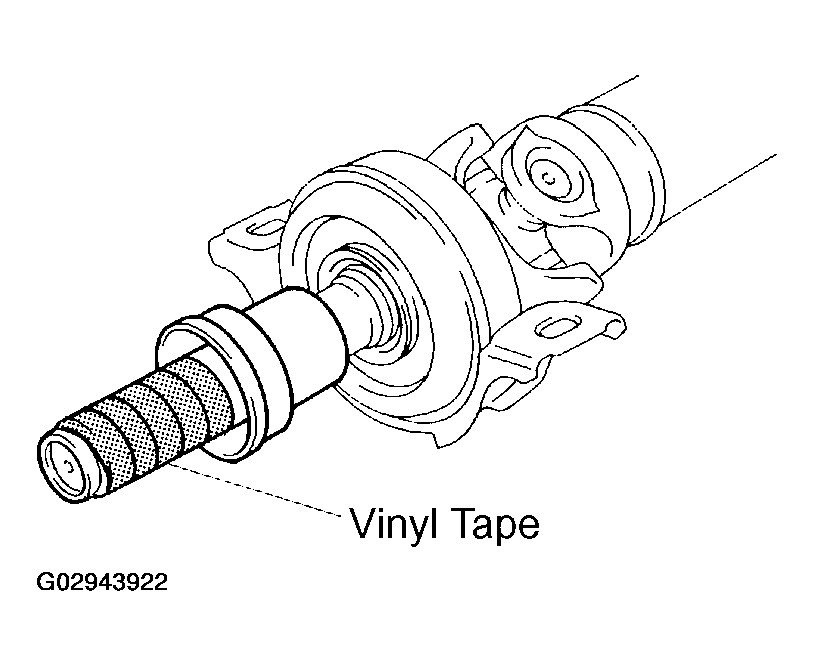

  Fig 8: Wrapping Vinyl Tape Around Spline
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply grease to the spline.
  Grease:

  Molybdenum disulphide lithium base, NLGI No. 2
3. Align the matchmarks and assemble the intermediate shaft and propeller shaft.

  Fig 9: Locating Match Marks On Intermediate Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Cover the adjusting nut with the dust boot.
NOTE: The directions of the intermediate shaft companion flange and the propeller shaft companion flange should differ by 180°.

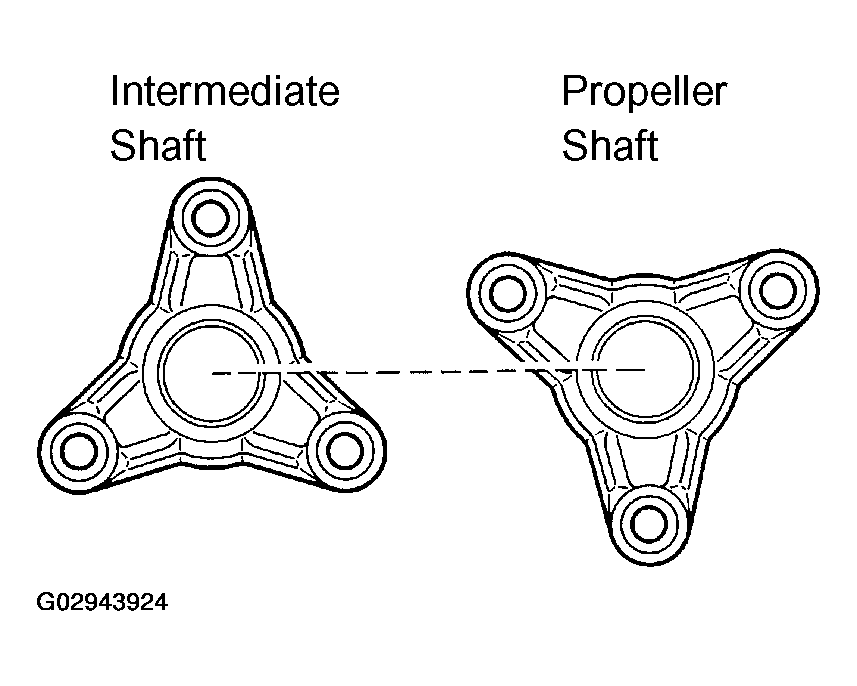

Fig 10: Installing The Flanges
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Tighten the adjusting nut fully by hand.
