Home >> Lexus >> 2005 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine (3UZ-FE) - Diagnostics >> Parts Location

Parts Location

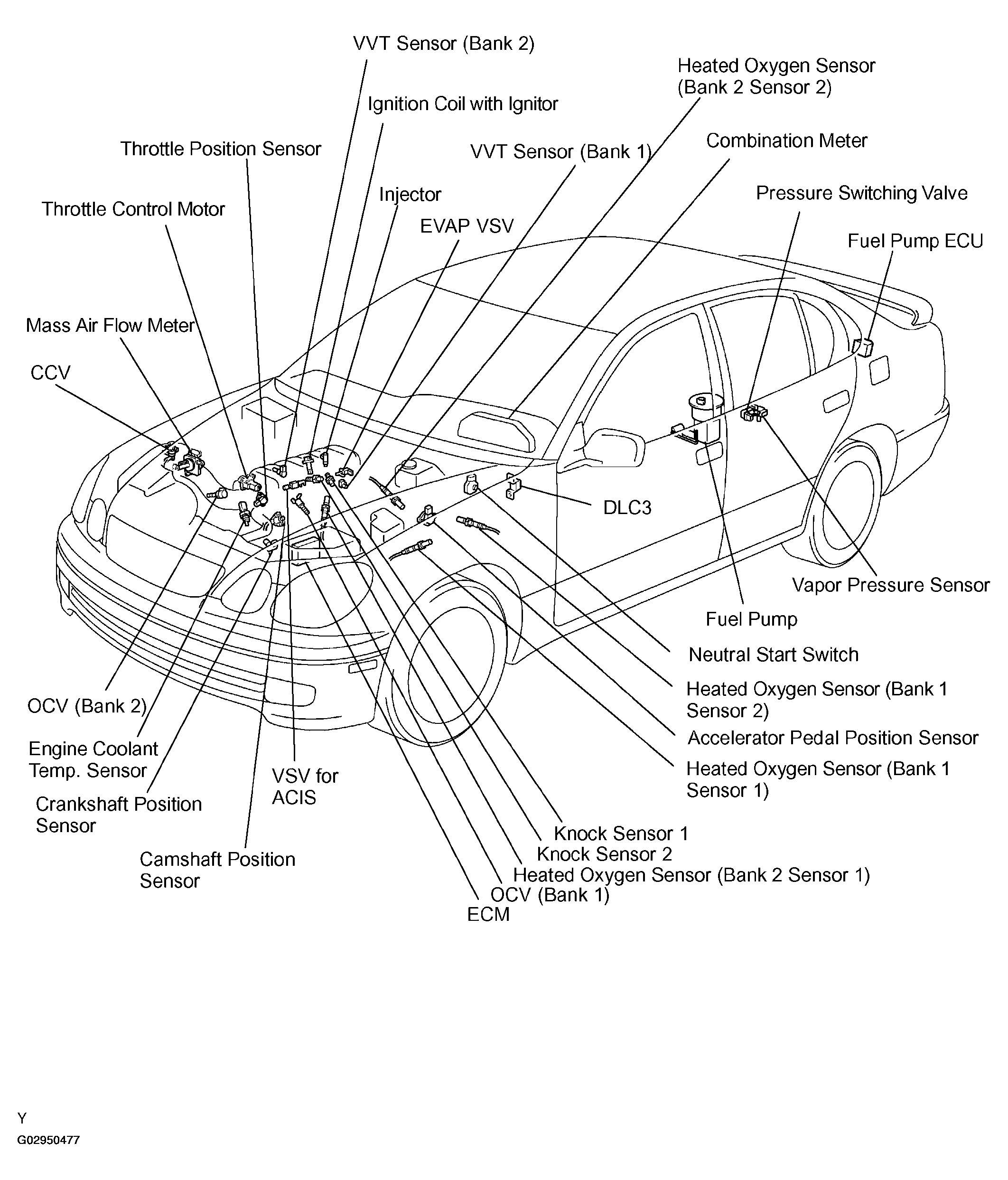

Fig 1: Identifying Location Of Engine Electrical Components

G02950477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
