VVT Sensor: Components

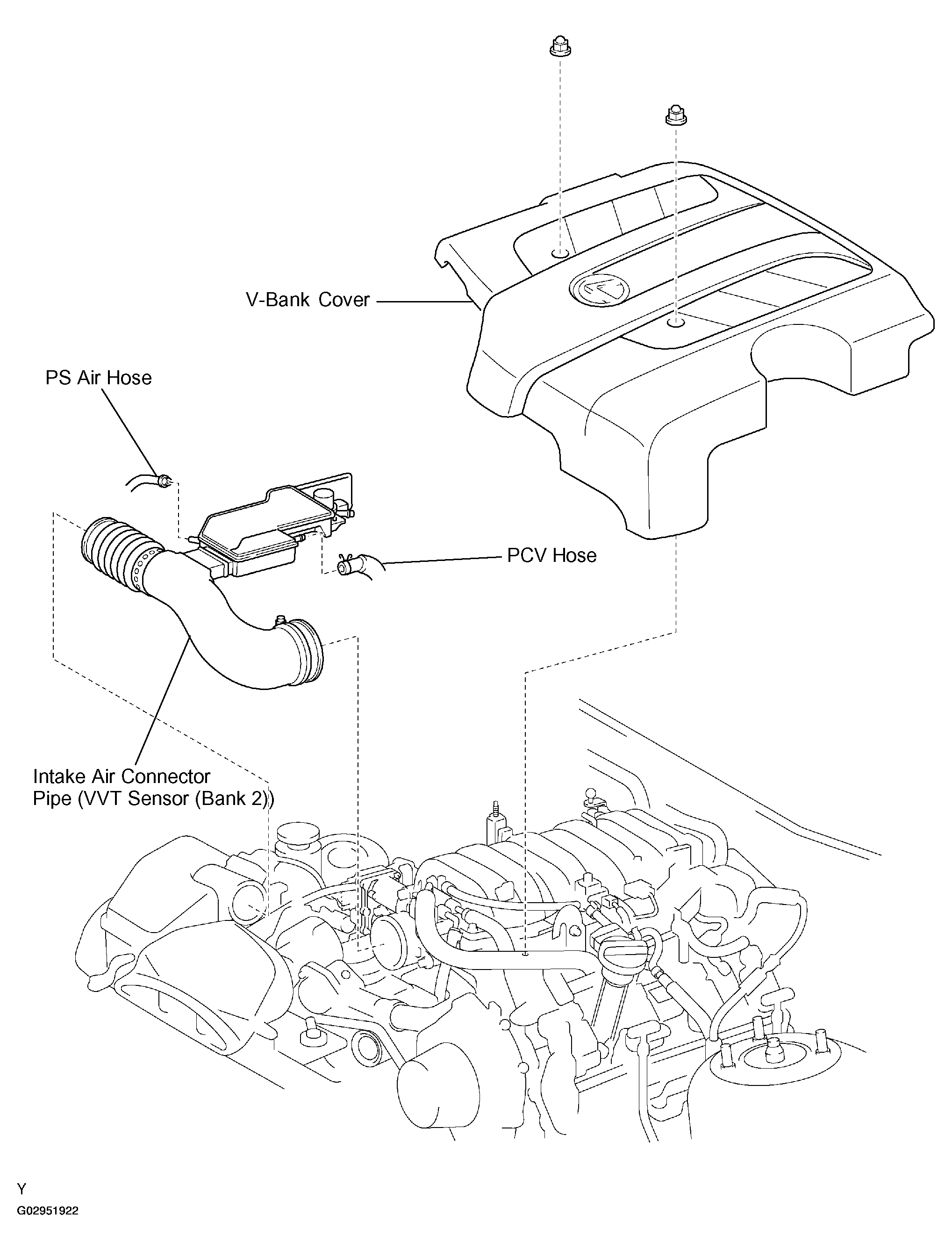

Fig 1: Identifying VVT Sensor Components (1 of 3)
G02951922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

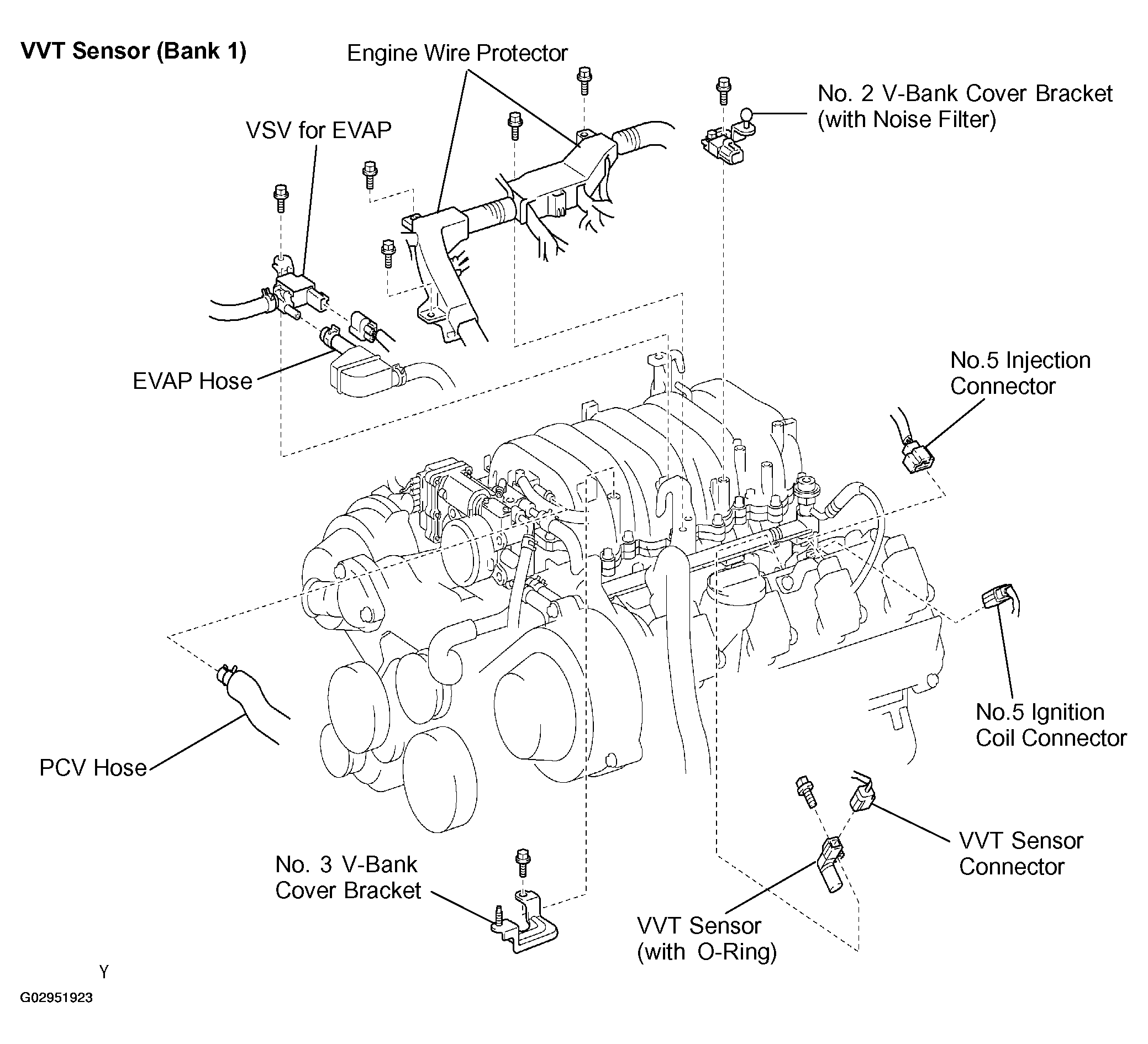

Fig 2: Identifying VVT Sensor Components (2 of 3)
G02951923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

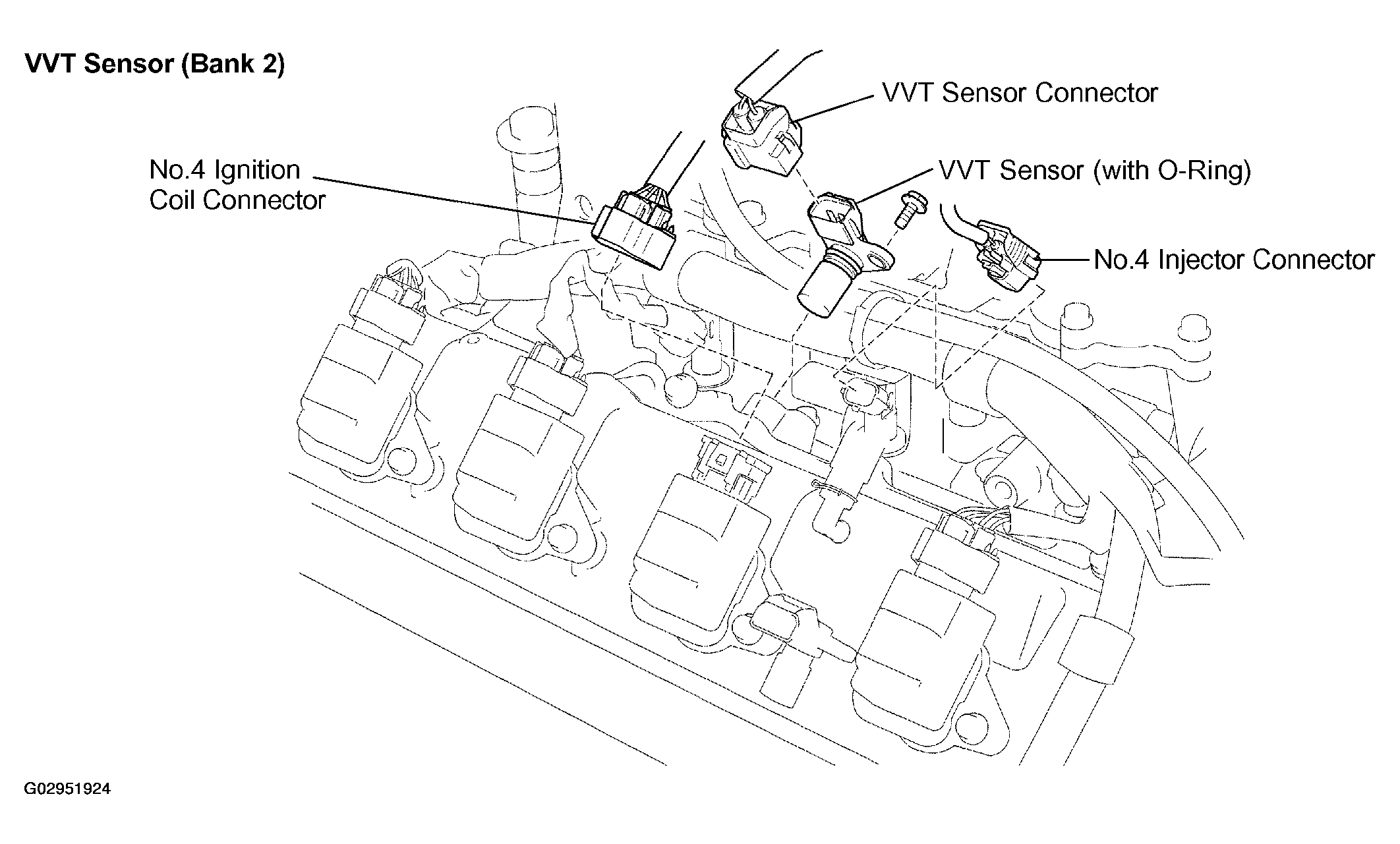

Fig 3: Identifying VVT Sensor Components (3 of 3)
G02951924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
