Home >> Lexus >> 2005 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> SFI (3UZ-FE) >> Throttle Body >> Components

Throttle Body: Components

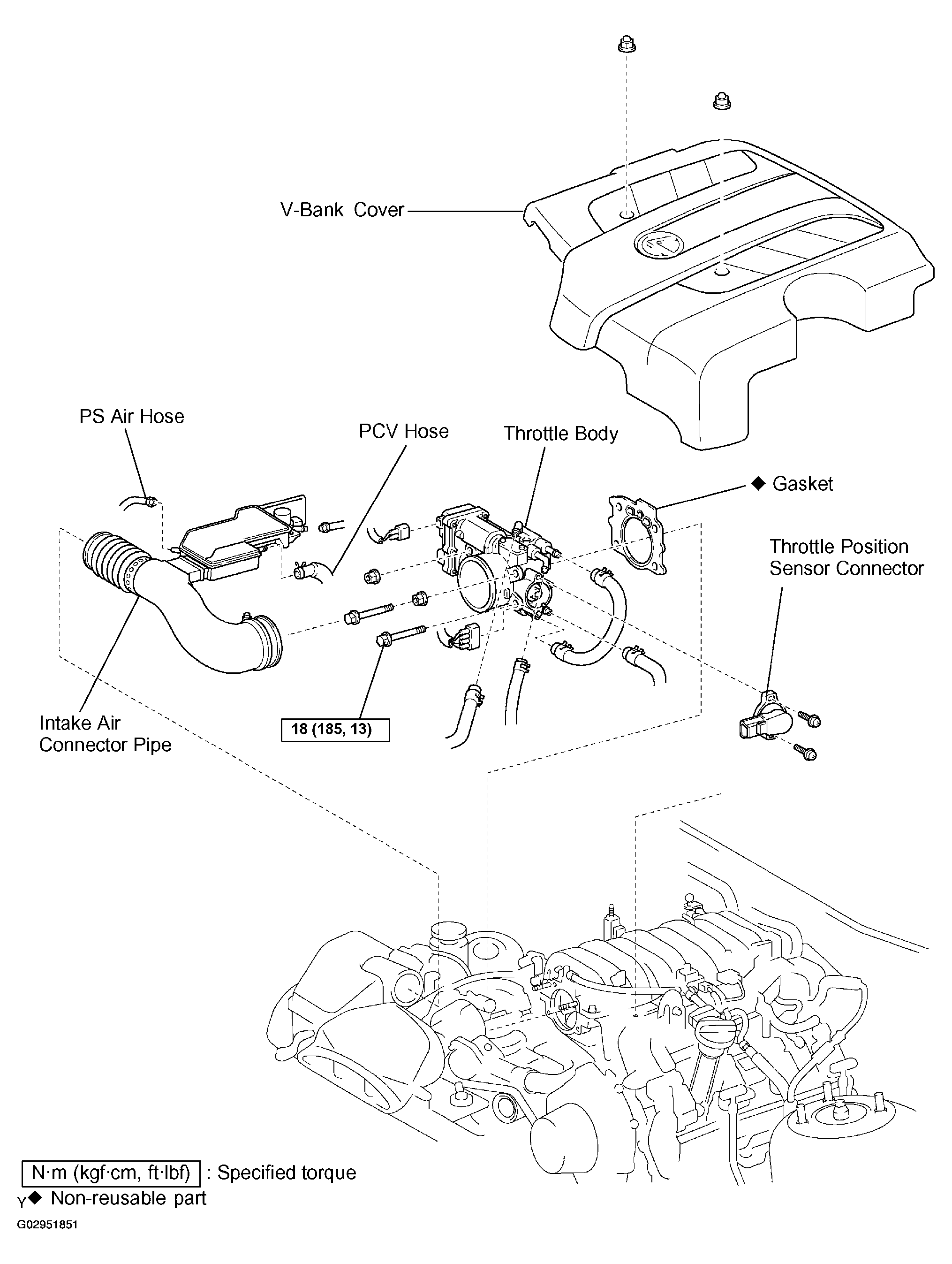

Fig 1: Replacement Components Of Throttle Body With Torque Specifications

G02951851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
