Knock Sensor: Components

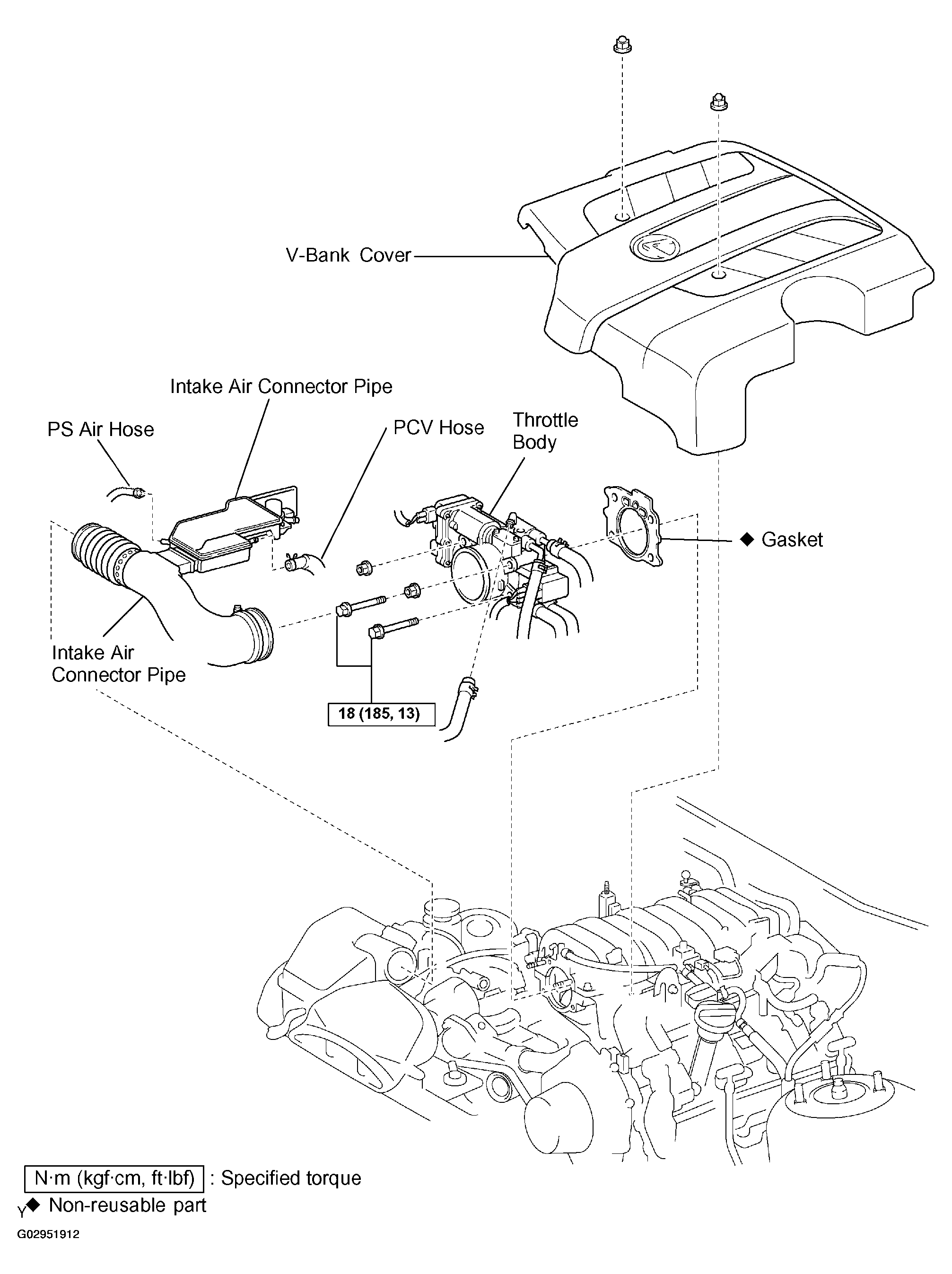

Fig 1: Exploded View Of Knock Sensor & Torque Specifications (1 of 2)
G02951912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

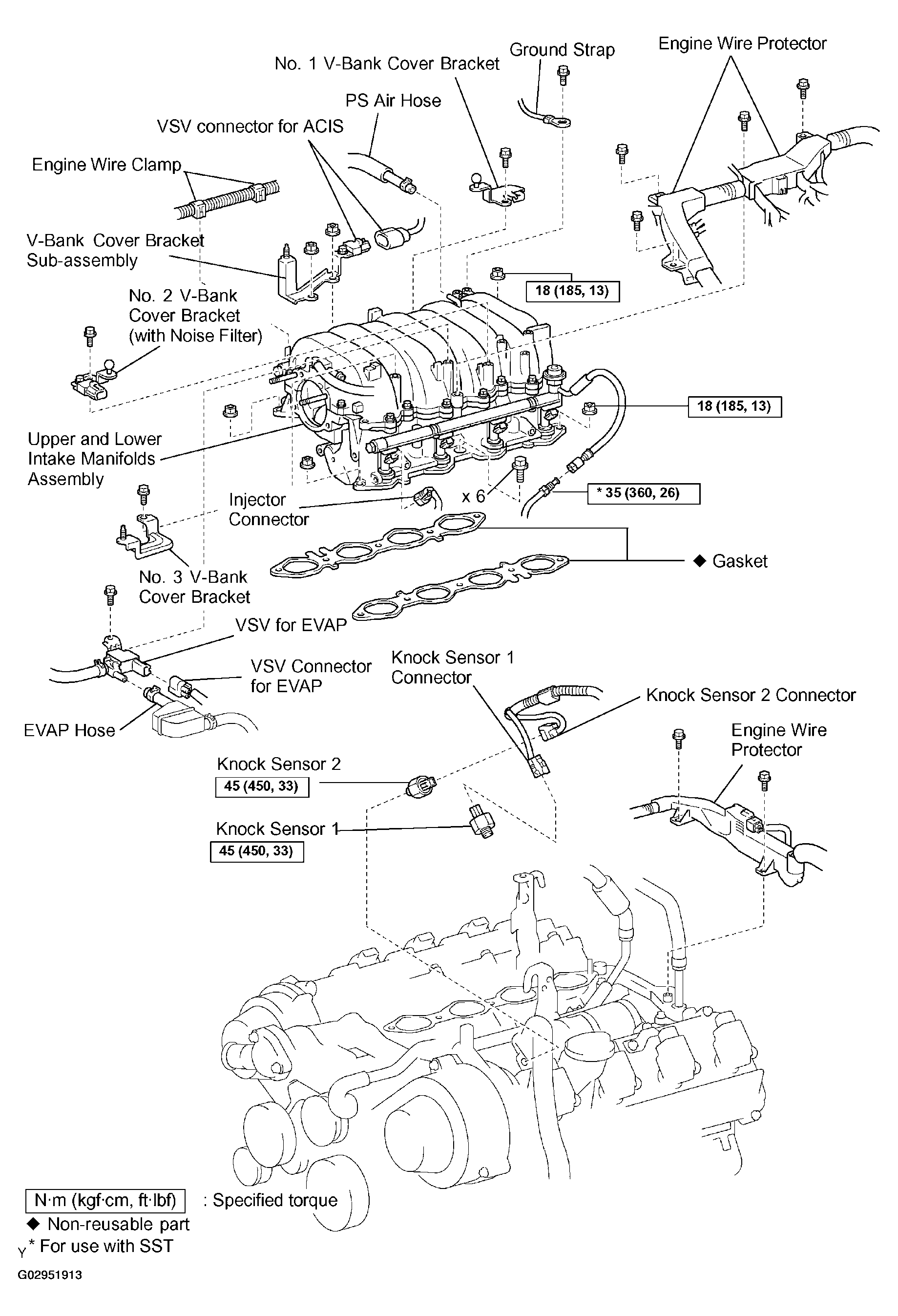

Fig 2: Exploded View Of Knock Sensor & Torque Specifications (2 of 2)
G02951913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
