SFI (3UZ-FE): Injector: Components

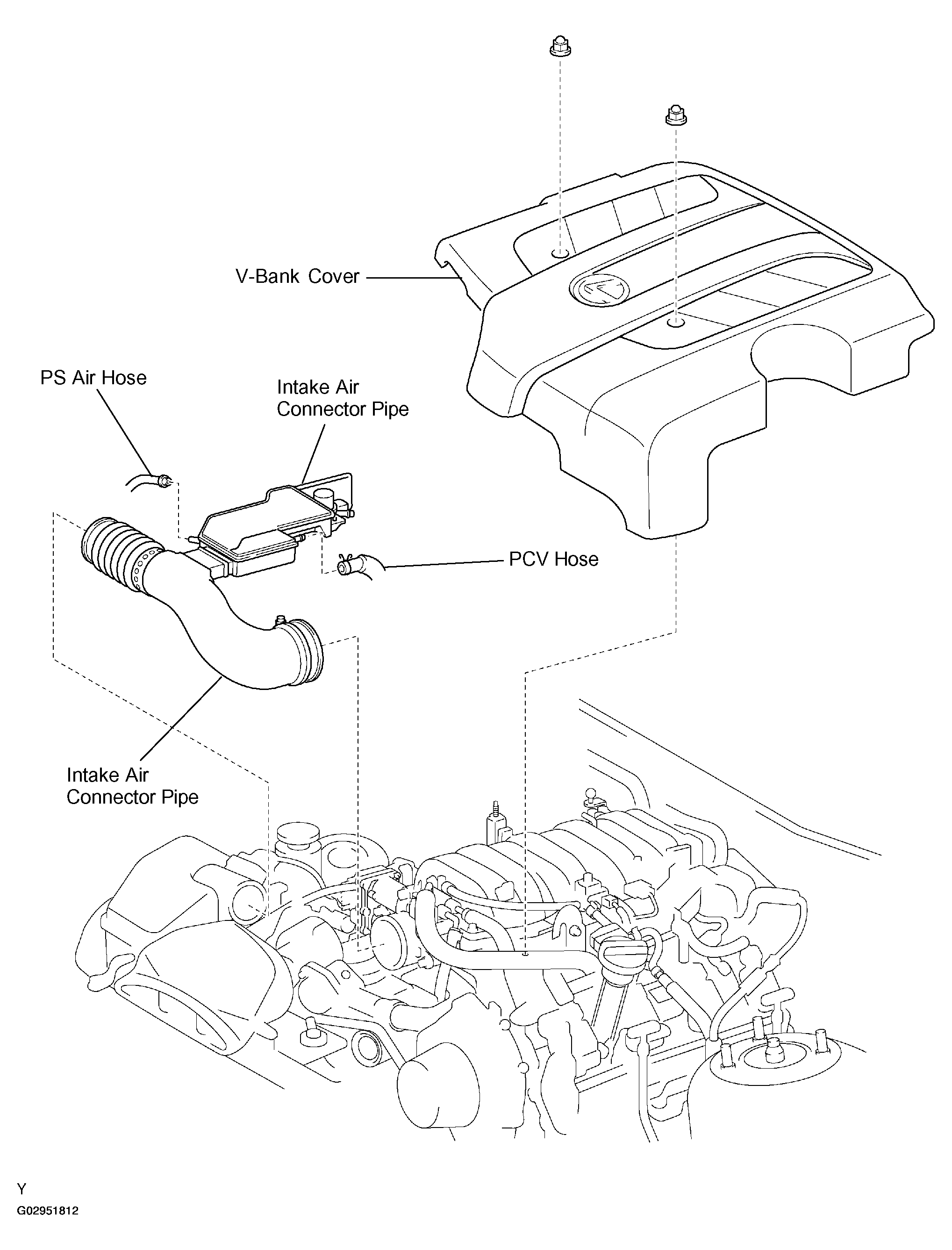

Fig 1: Exploded View of Injector (1 of 2)
G02951812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

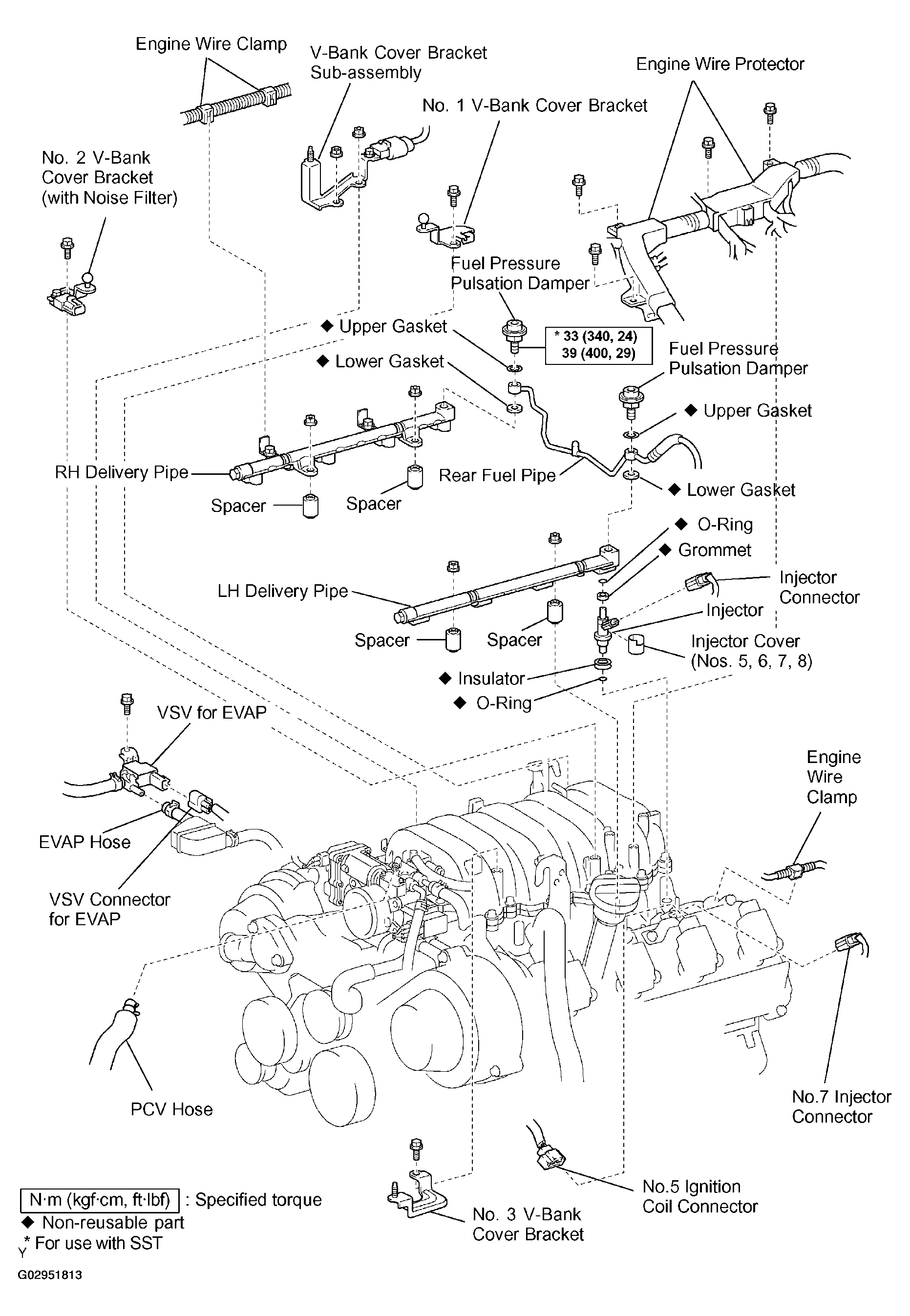

Fig 2: Exploded View of Injector & Torque Specifications (2 of 2)
G02951813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
