Fuel Tank And Line: Components

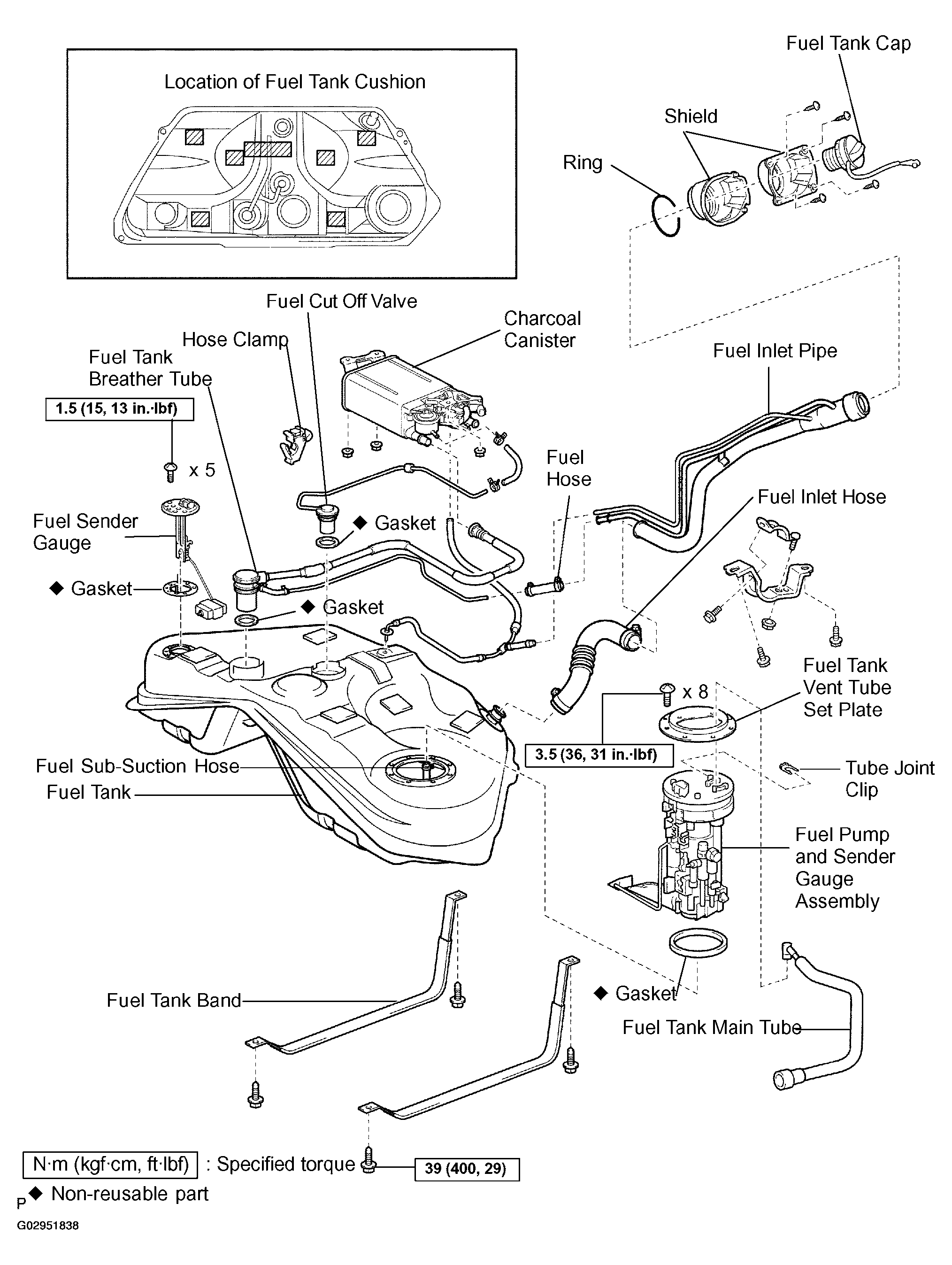

Fig 1: Identifying Components Of Fuel Tank And Line
G02951838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CAUTION:
  • Always use new gaskets when replacing the fuel tank or component parts.
  • Apply the proper torque to all parts tightened
