Fuel Pump: Components

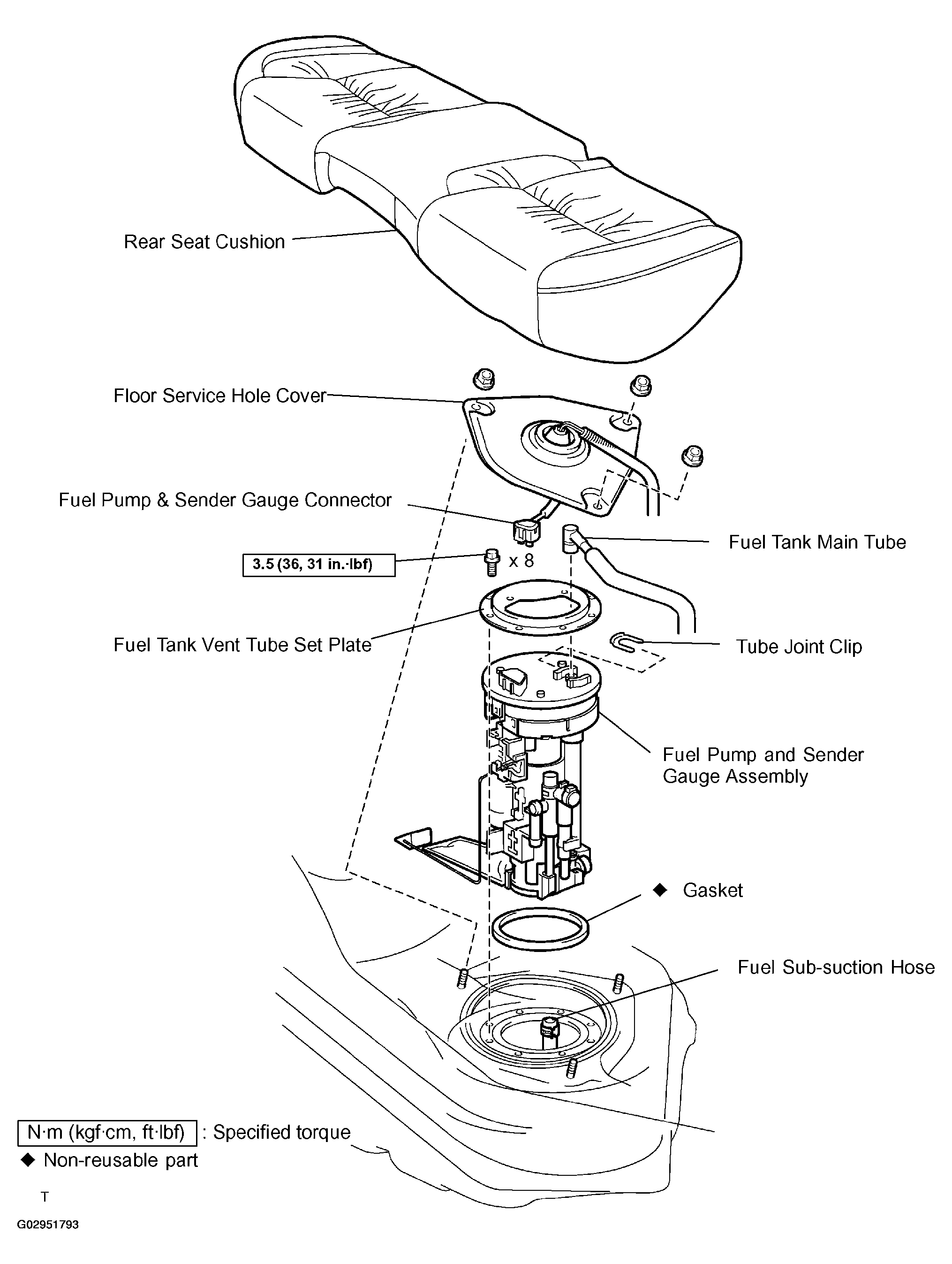

Fig 1: Replacement Components Of Fuel Pump With Torque Specifications (1 Of 2)
G02951793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

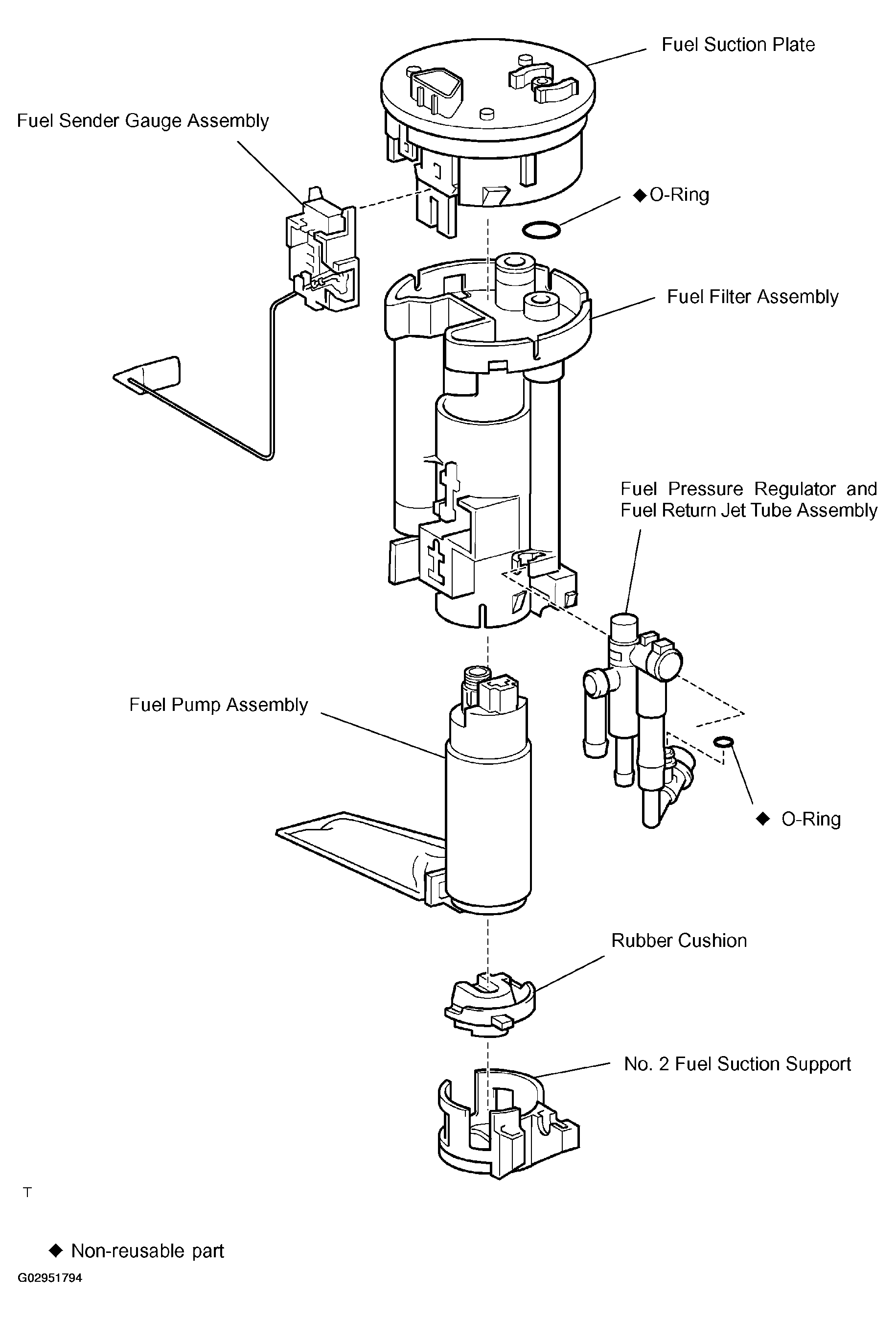

Fig 2: Identifying Components Of Fuel Pump (2 of 2)
G02951794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
