Fuel Pressure Regulator: Components

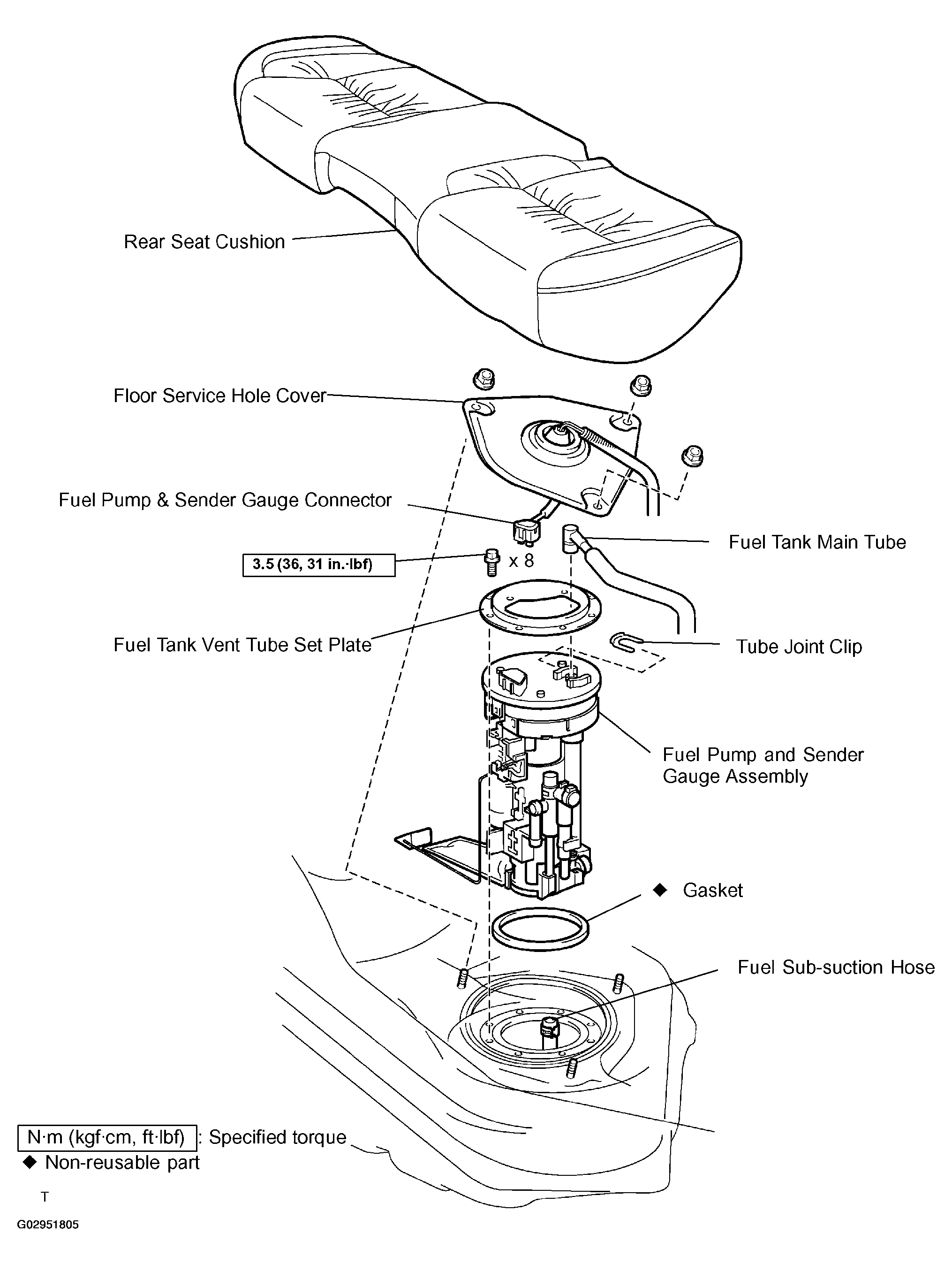

Fig 1: Replacement Components Of Fuel Pressure Regulator With Torque Specifications (1 Of 2)
G02951805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

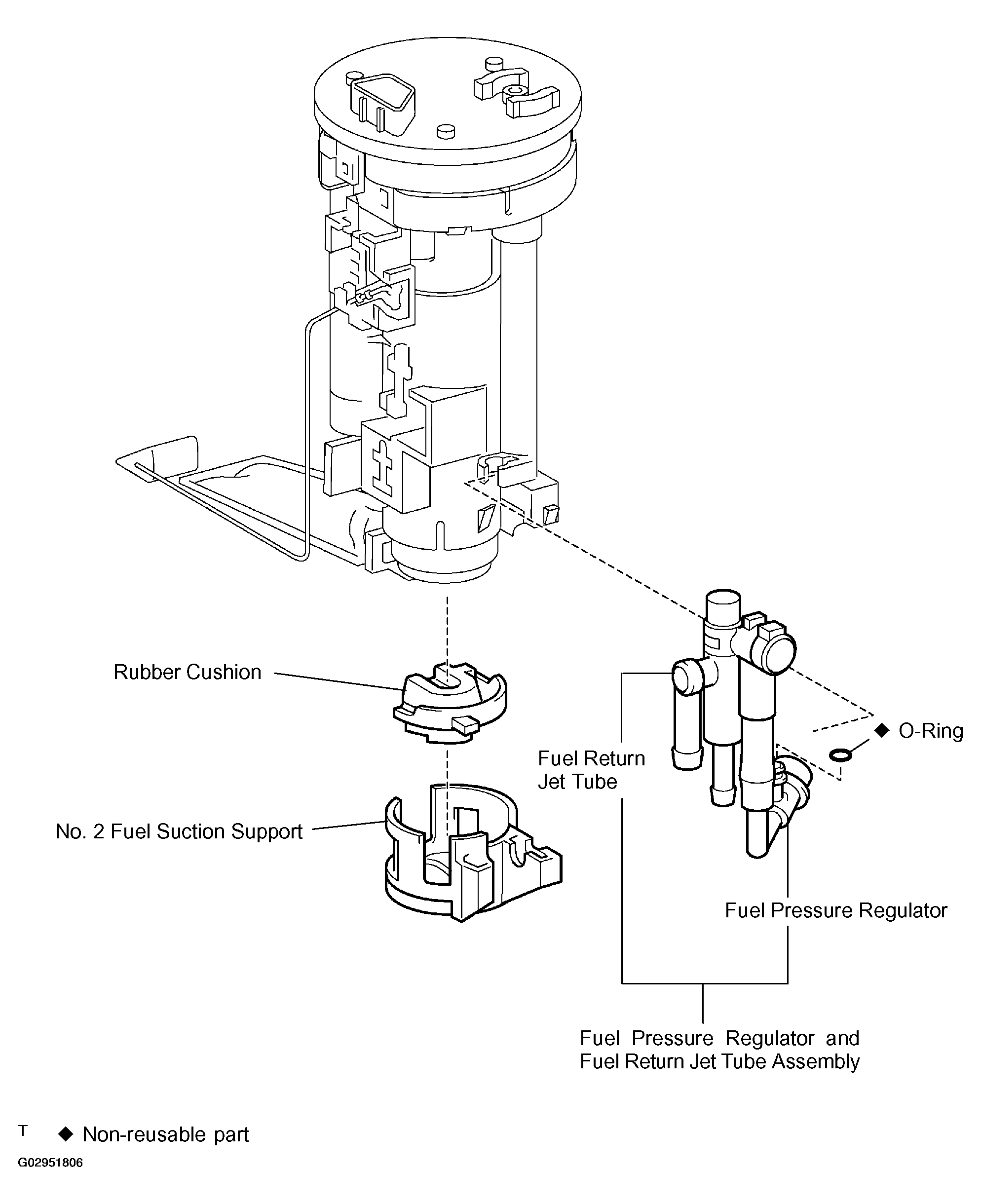

Fig 2: Identifying Components Of Fuel Pressure Regulator (2 of 2)
G02951806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
