Home >> Lexus >> 2005 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> SFI (3UZ-FE) >> Engine Coolant Temperature (ECT) Sensor >> Components

Engine Coolant Temperature (ECT) Sensor: Components

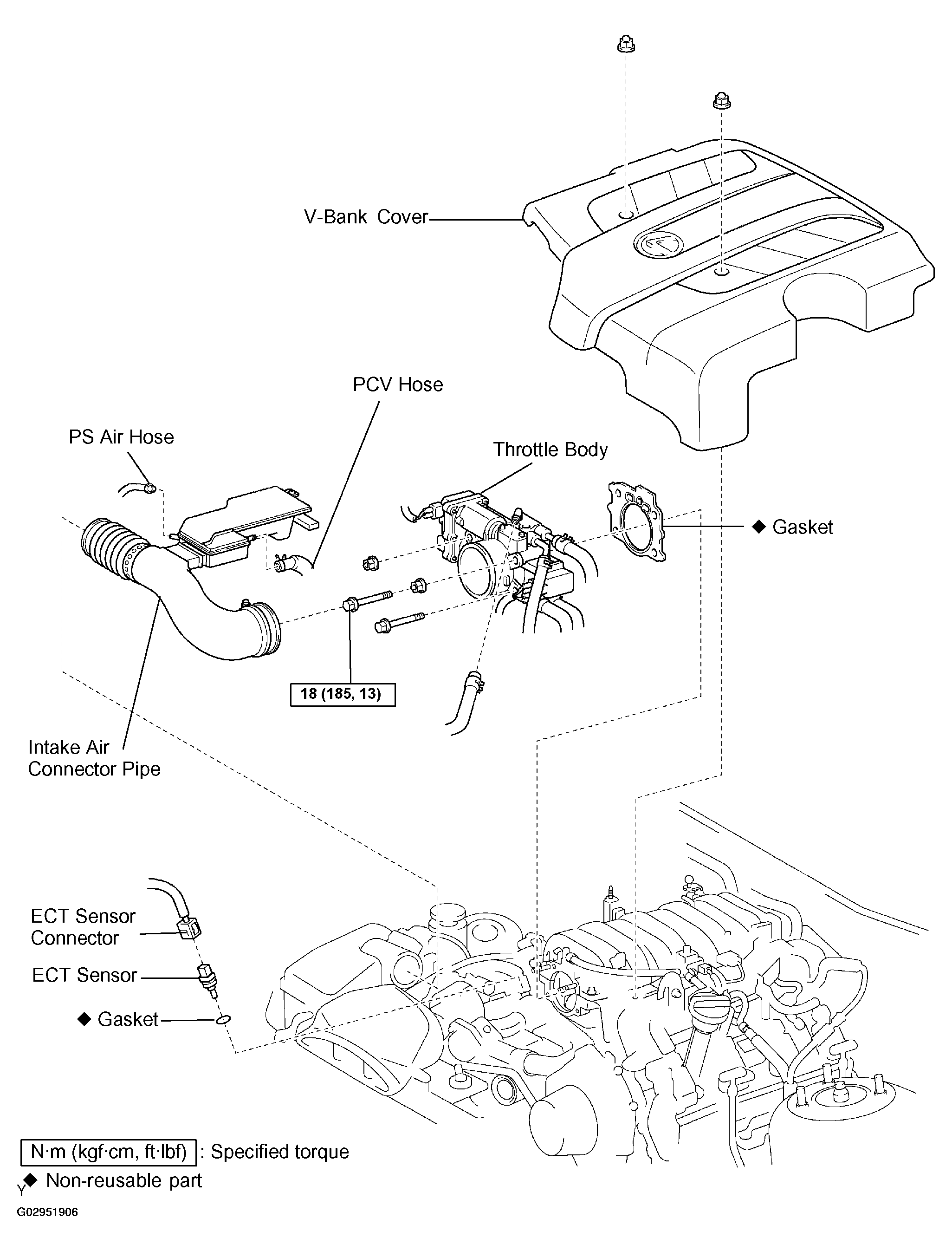

Fig 1: Exploded View of Engine Coolant Temperature (ECT) Sensor & Torque Specifications

G02951906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
