Acoustic Control Induction System (ACIS): Components

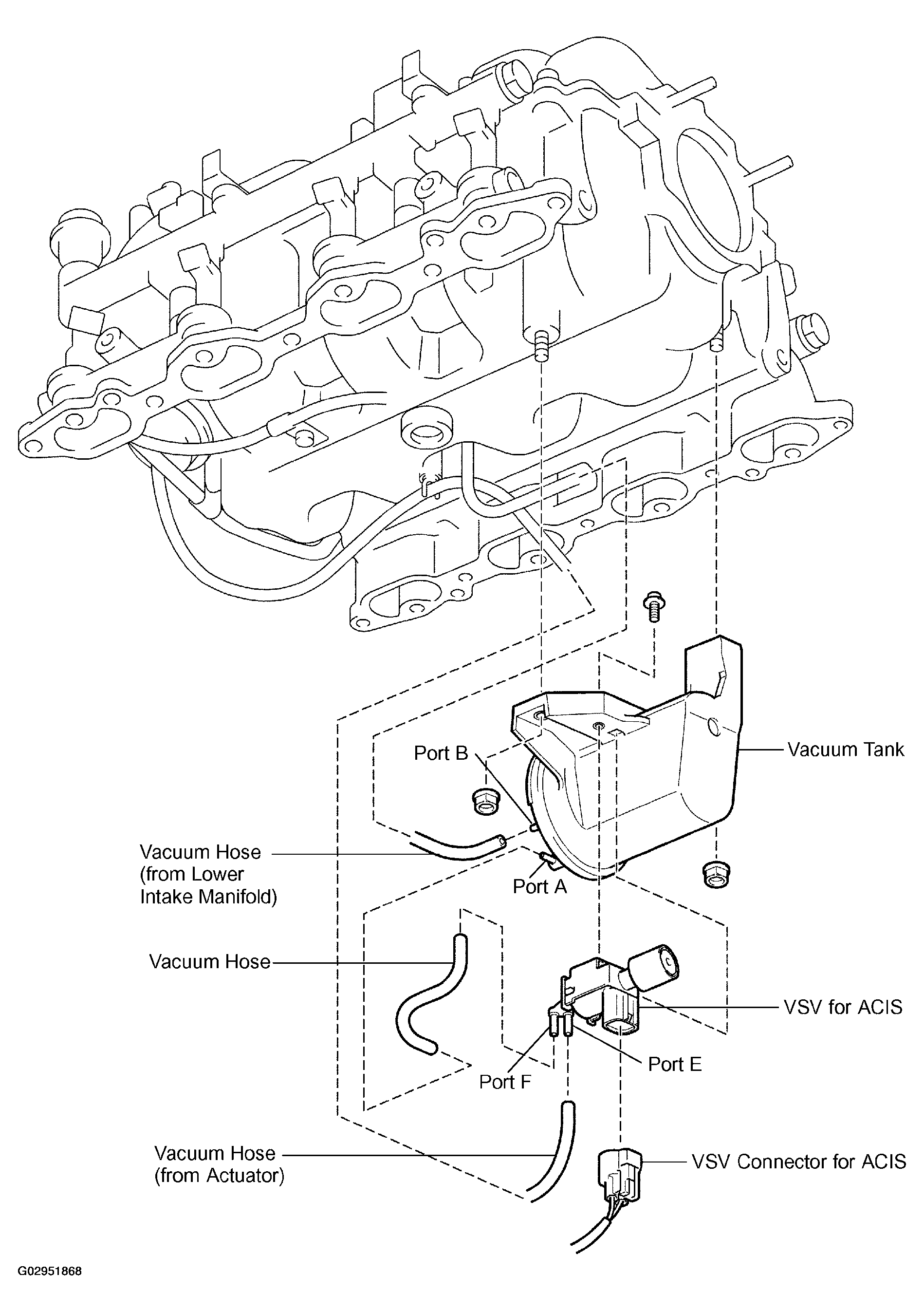

Fig 1: Identifying Acoustic Control Induction System Components & Torque specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

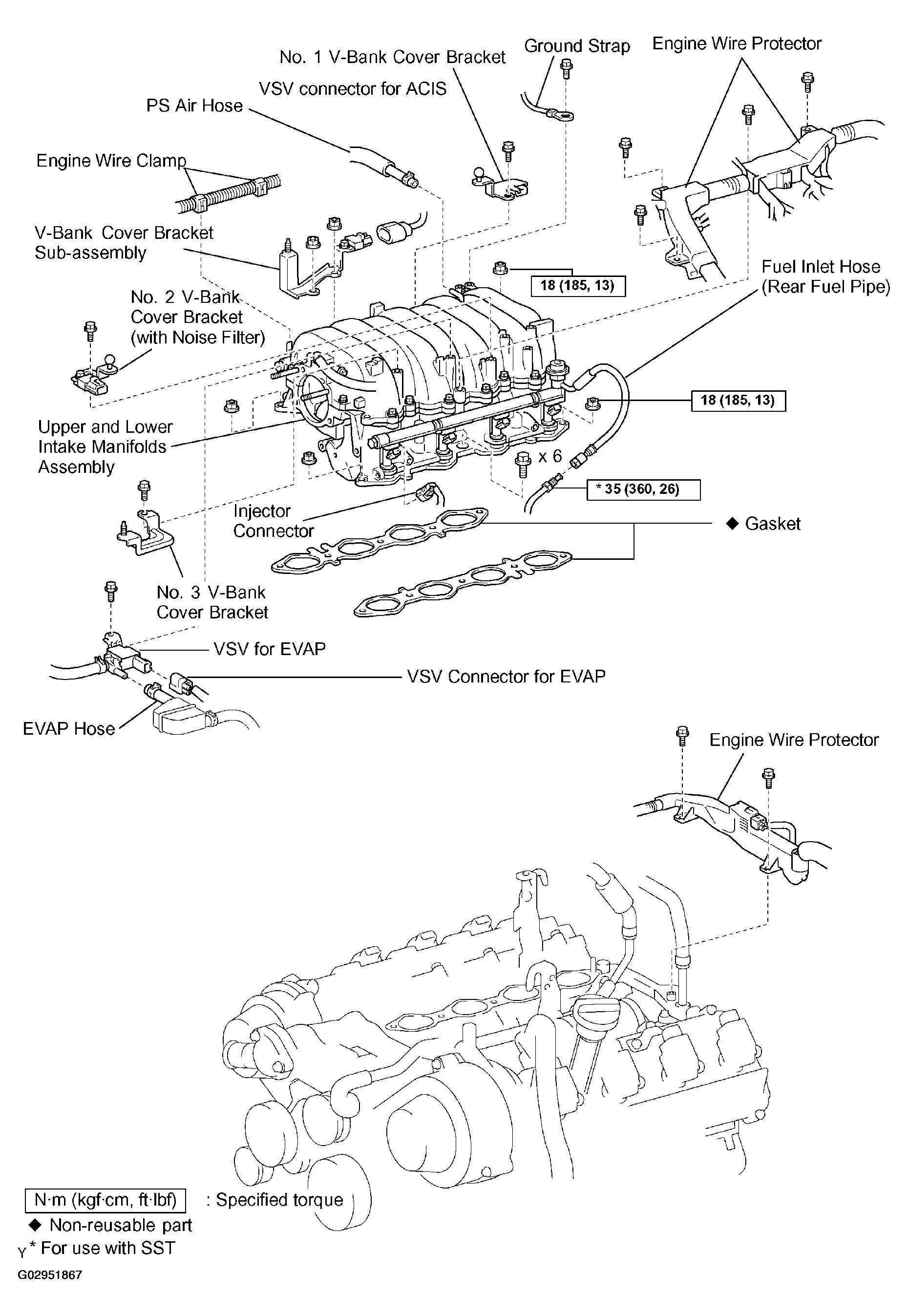

Fig 2: Identifying Acoustic Control Induction System Components & Torque specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

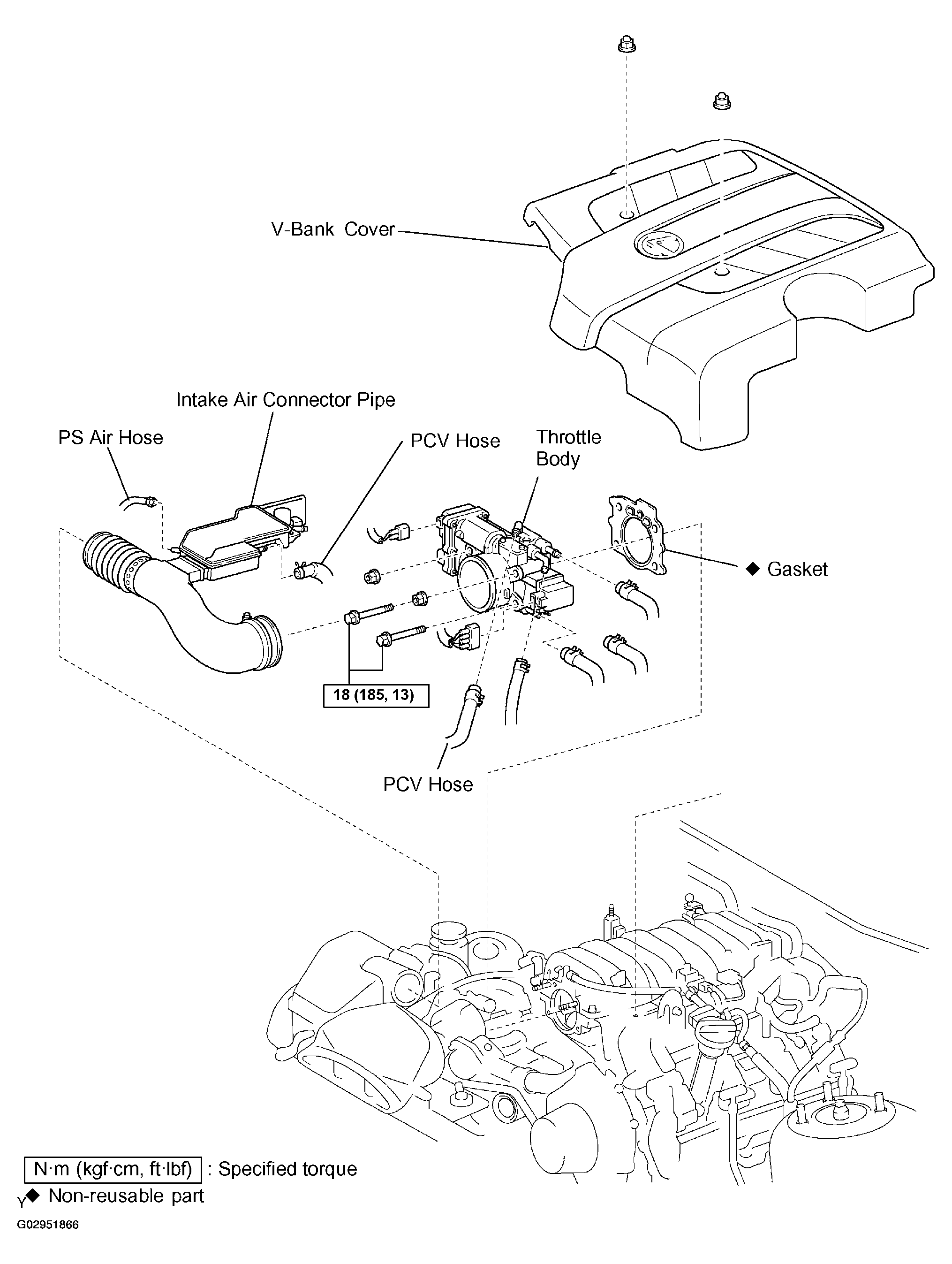

Fig 3: Identifying Acoustic Control Induction System Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

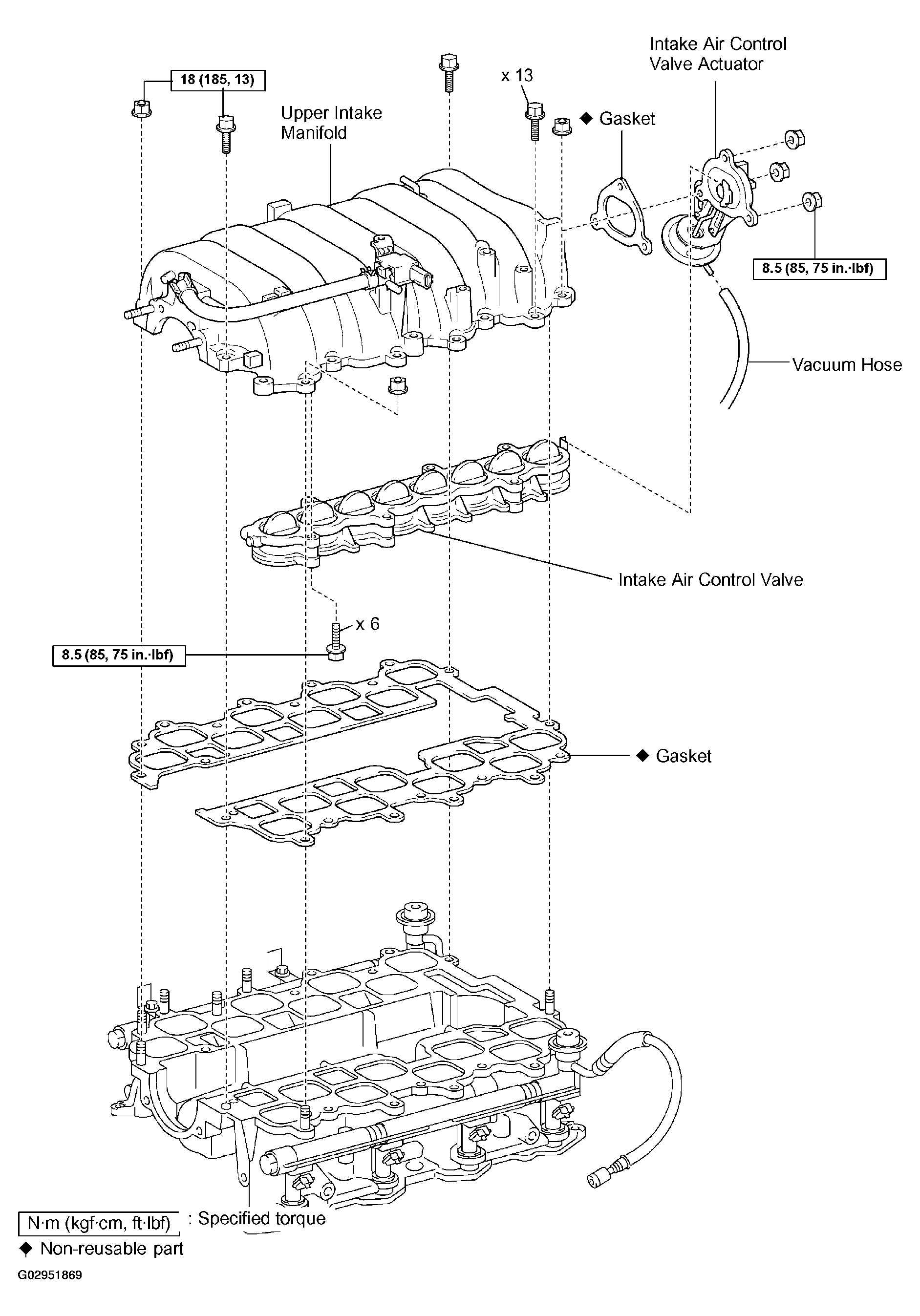

Fig 4: Identifying Acoustic Control Induction System Components & Torque specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
