Service Data

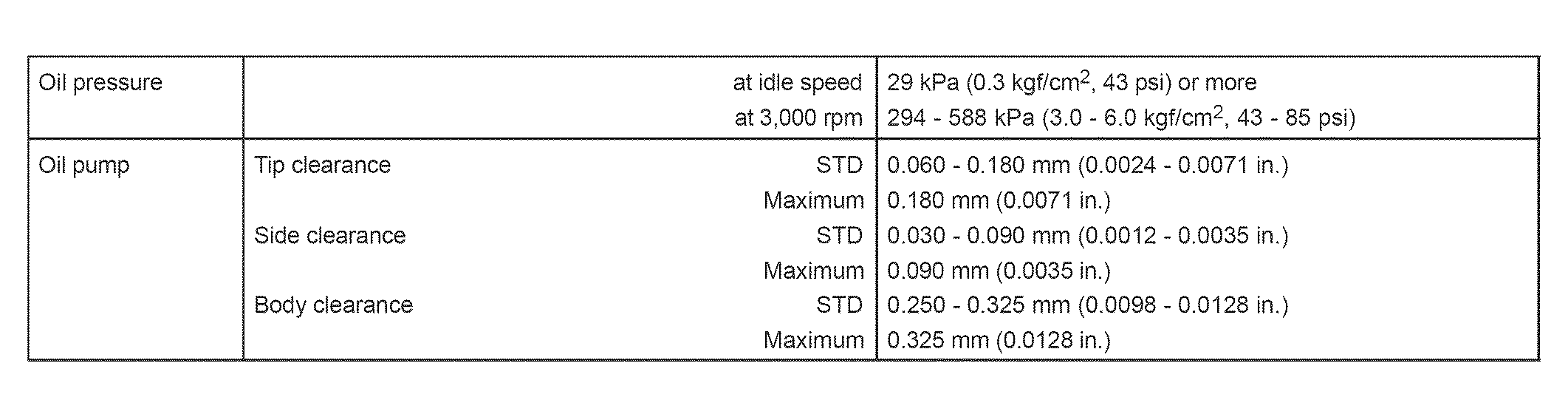

Fig 1: Lubrication System Service Specification Chart (3UZ-FE)

G02984101

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
