Charging System - Service Specifications
>>
Charging System (3UZ-FE)
>>
Service Data
Service Data

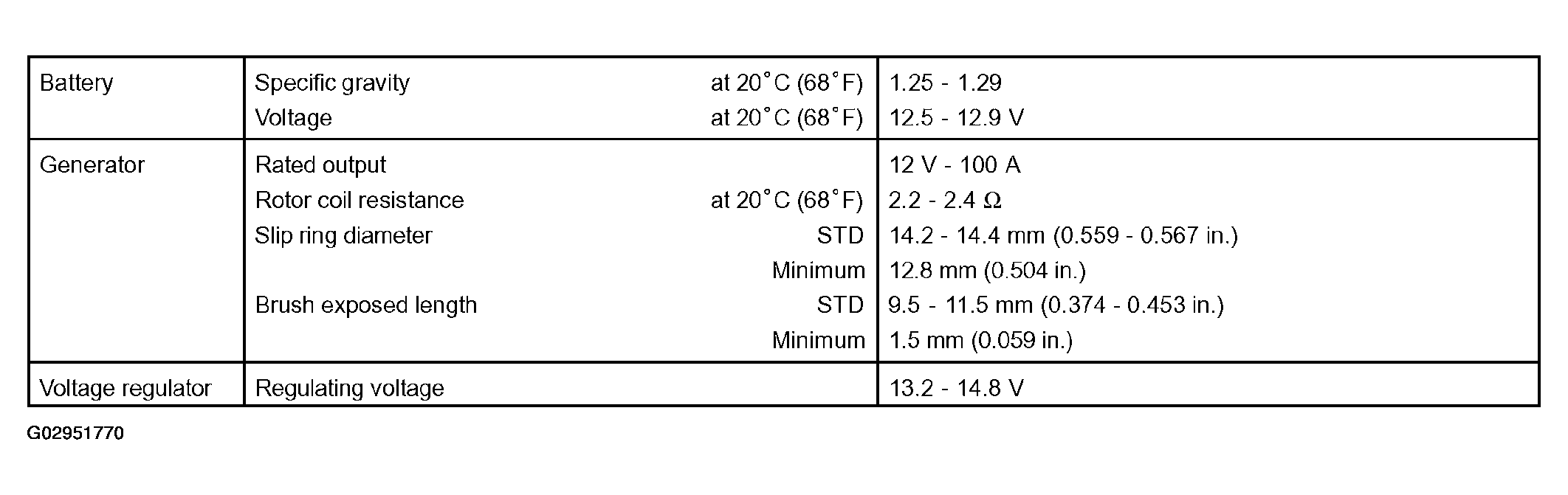

Fig 1: Charging System Service Specification Chart (3UZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
