Charging (3UZ-FE): Generator: Removal

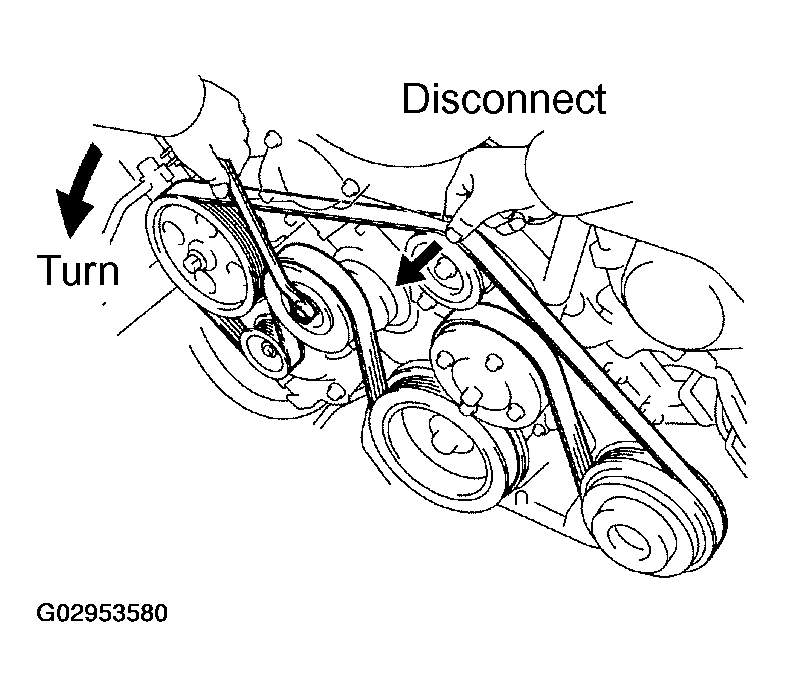

Loosen the belt tension by turning the drive belt tensioner counterclockwise, and remove the dive belt.

HINT:

The tensioner pulley bolt has a left-hand thread.

Fig 1: Removing Drive Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

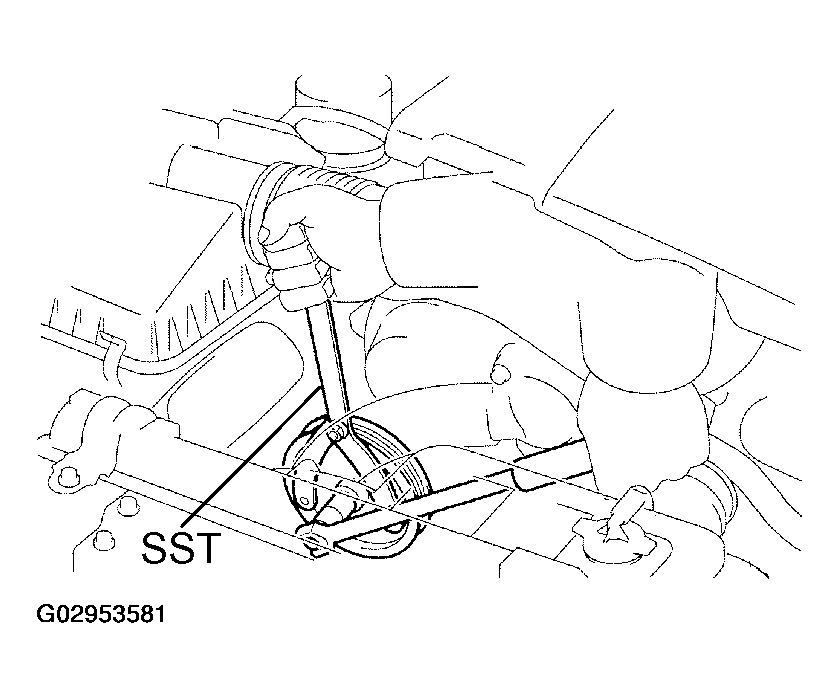

Using SST, remove the nut and PS pump pulley.

SST 09960-10010 (09962-01000, 09963-01000)

Fig 2: Removing PS Pump Pulley

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the generator connector.
2. Remove the rubber cap and nut, and disconnect the generator wire.

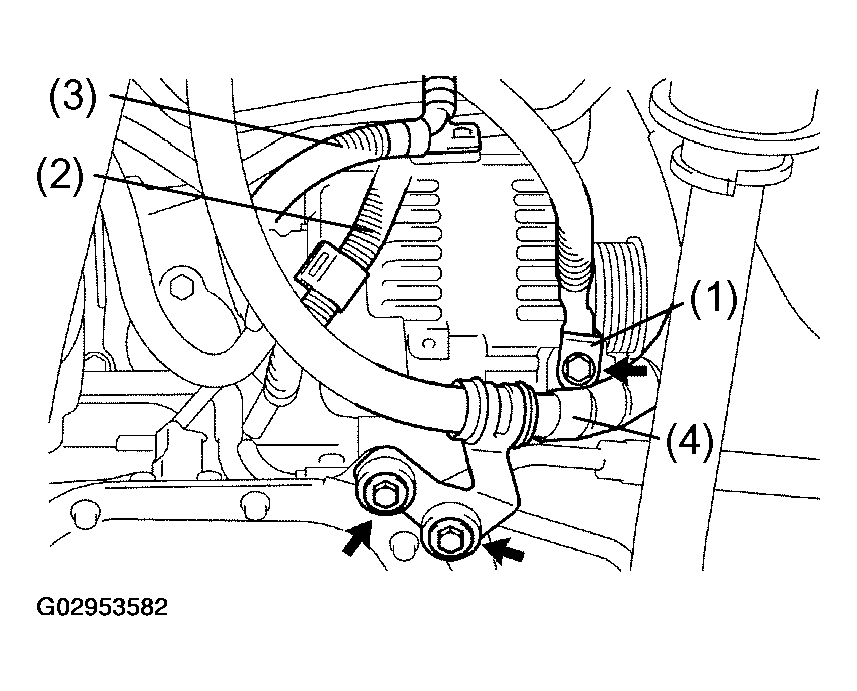

3. Disconnect these parts:
   1. Disconnect ground cable.
   2. Disconnect wire (for generator wire) from clamp on cord clip.
   3. Disconnect wire (for generator connector) from clamp on cord clip.

      Take out the vinyl tape, and disconnect the wire from the cord clip.

   4. Disconnect PS oil hose from No.1 oil pan.
   Fig 3: Removing Components From Alternator Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

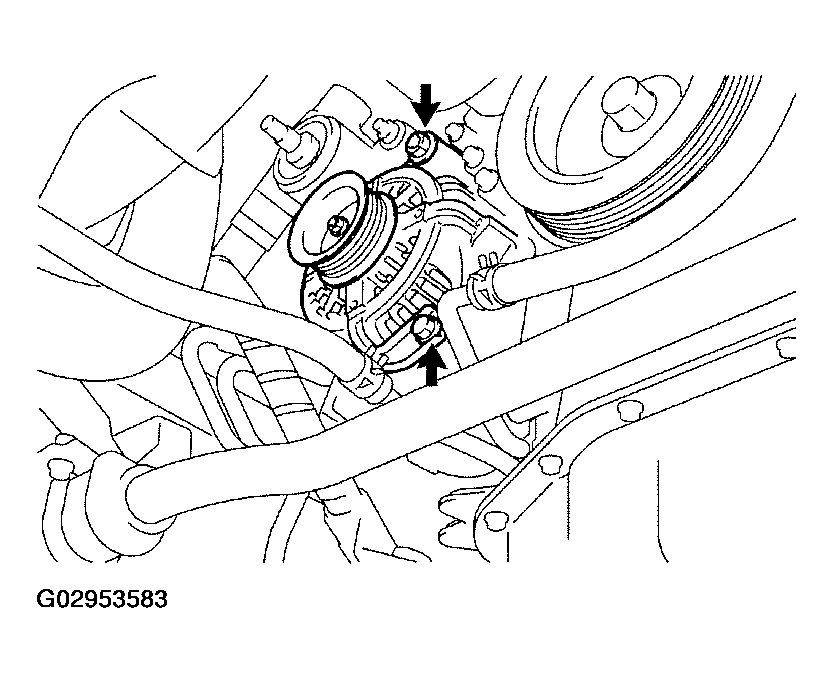

4. Remove the nut, bolt, stay and generator.
5. Remove the 2 clamps from the cord clips on the generator.

Fig 4: Removing Alternator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
