Rear Right Door Control System - Diagnostics
>>
Terminals Of Ecu
Terminals Of Ecu

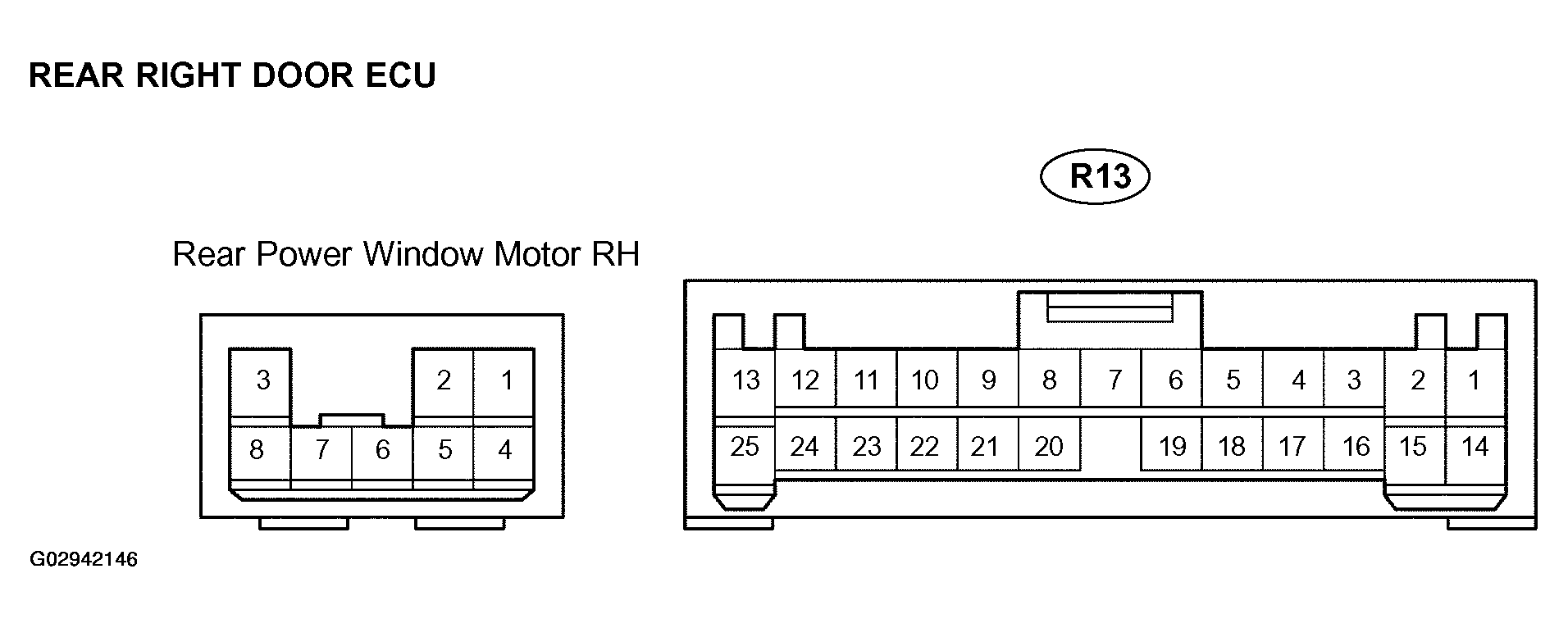

Fig 1: Identifying ECU Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

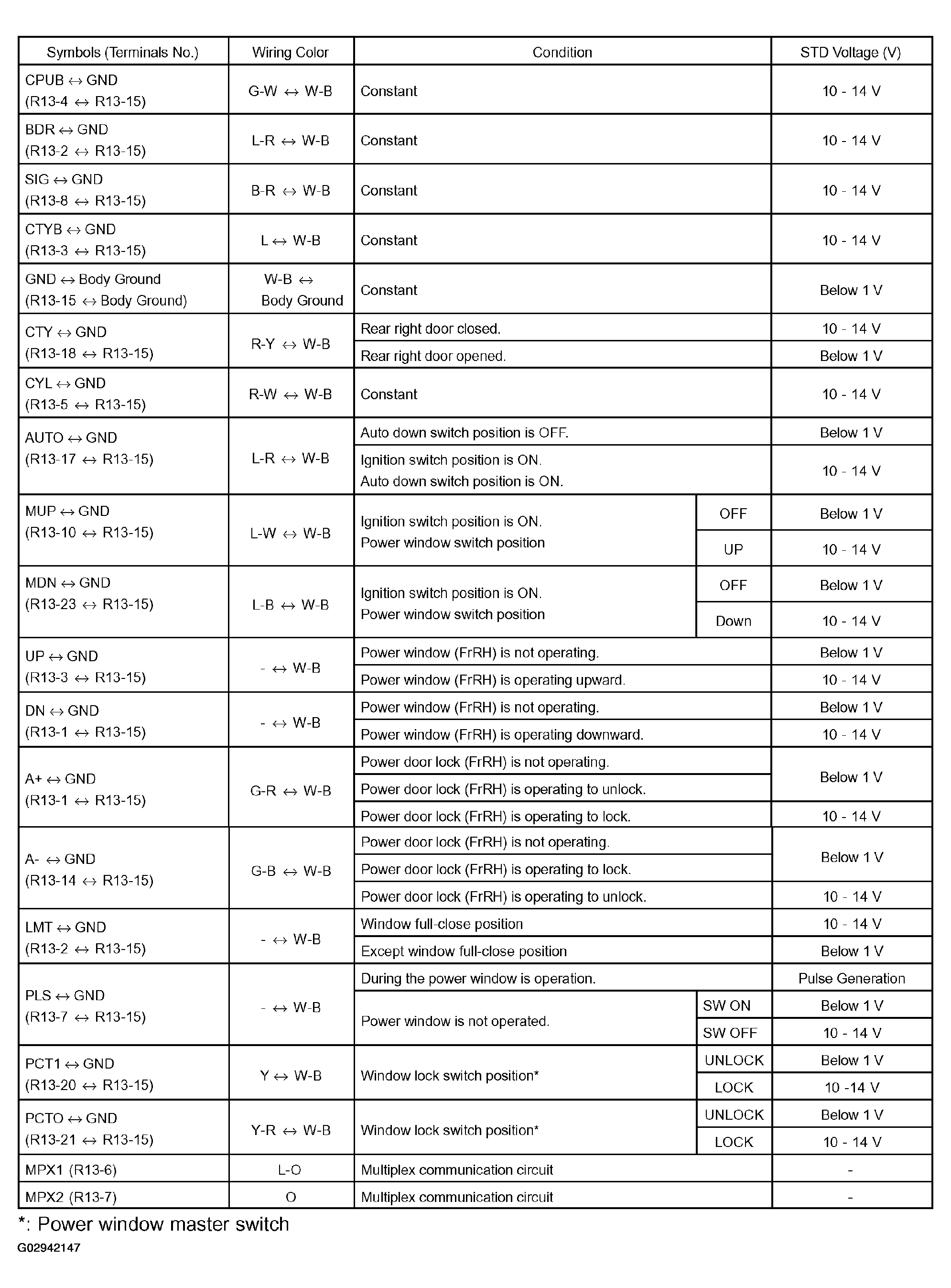

Fig 2: ECU Terminals Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
