Rear Door: Adjustment

ADJUST REAR DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
1. Remove the front and rear door scuff plates.
2. Remove the center pillar lower garnish.
3. Remove the 2 bolts and front seat belt retractor.

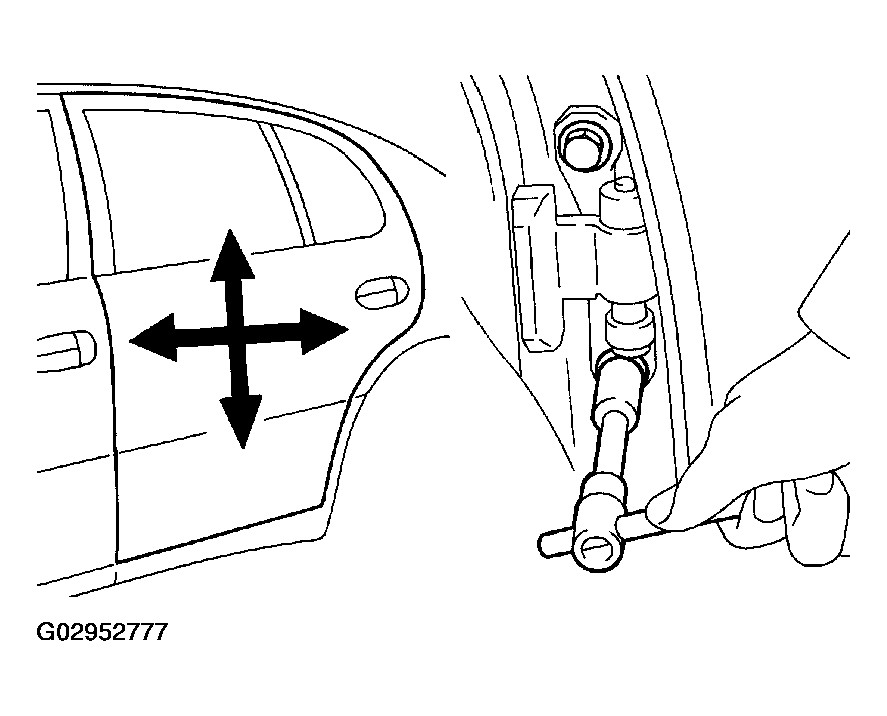

  Fig 1: Adjusting Rear Door In Horizontal Vertical 2 Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Loosen the body side nuts to adjust.
  Torque: 32.5 N.m (331 kgf.cm, 24 ft.lbf)
5. Install the front seat retractor with the bolts.
  Torque:

  Upper bolt: 7.5 N.m (76 kgf.cm, 66 in..lbf)

  Lower bolt: 42 N.m (430 kgf.cm, 31 ft.lbf)
6. Install the center pillar lower garnish.
7. Install the front and rear scuff plates.
Fig 2: Loosening Body Side Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST REAR DOOR IN LEFT/RIGHT VERTICAL DIRECTIONS
Using a wrench, loosen the door side hinge bolts.

Torque: 32.5 N.m (331 kgf.cm, 24 ft.lbf)
ADJUST REAR DOOR LOCK STRIKER (See ADJUSTMENT )

Fig 3: Adjusting Rear Door In Left/Right Vertical Direction
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
